Using the Control Module

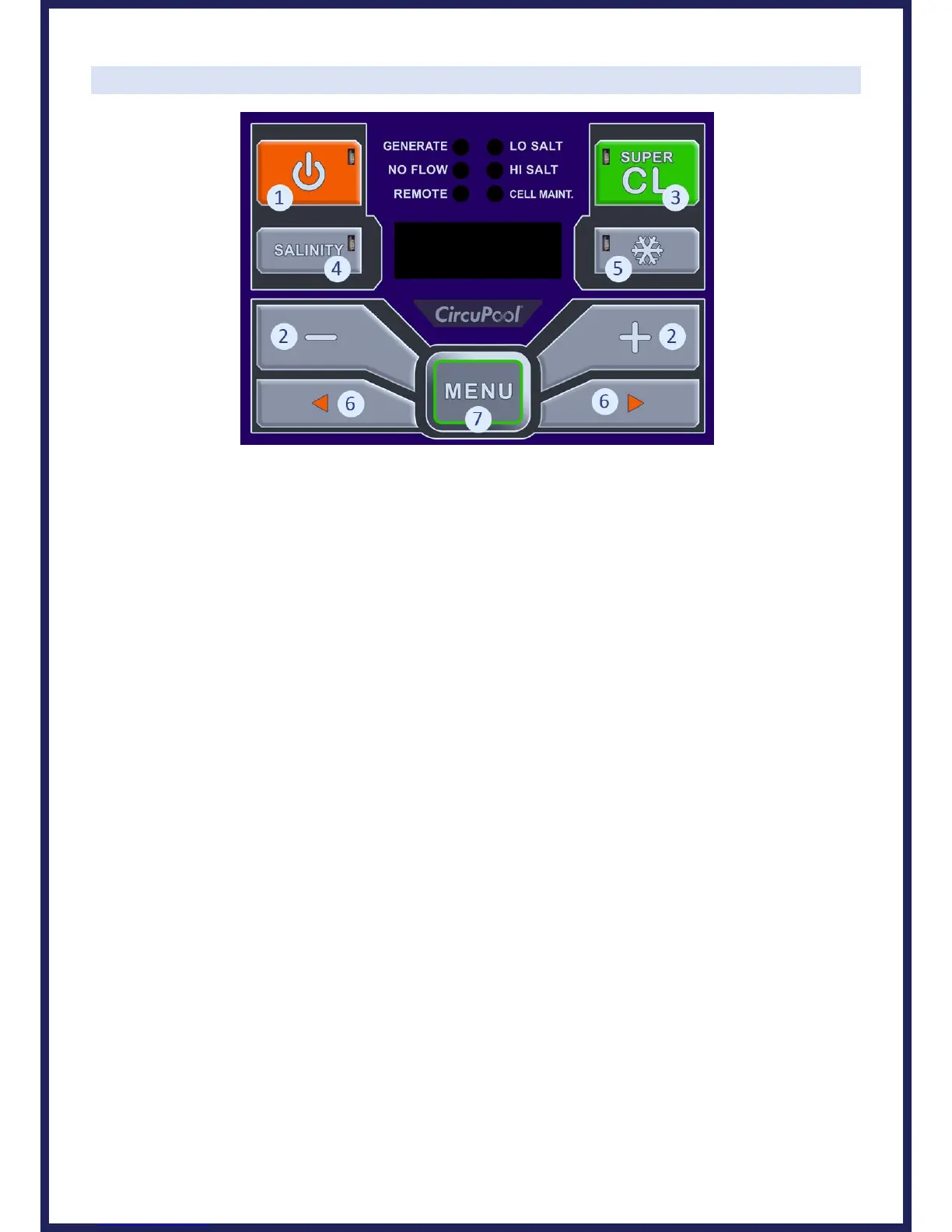

CONTROL BUTTONS:
1) ON/OFF: Use this button to manually activate / deactivate the system on or off.
2) Chlorine Output: Use the minus/plus buttons to lower the system's power setting (the rate of chlorine
production), in order to customize operation for your pool's needs.
3) Super CL: Temporarily boosts Chlorine Output to 100% Maximum Power for 24 hours, or until power is removed
from the system.
4) Salinity: Displays the average reading of the most recent salinity levels in the pool water. The average is
constantly being updated by real-time salinity readings.
TIP: When first installed, this reading may display the last salinity readings taken at the factory. This average
will begin to update with your pool's operation over the first 24 hours.
TIP: As mineral scaling builds up in the Cell after regular use, the system may temporarily display an artificially
low salinity level. After fully cleaning your Cell, it will begin to detect salinity normally again.
5) Winter Mode: Reduces the chosen Chlorine Output setting by half, for periods of low chlorine demand during
cool weather.
6) Arrows: The left/right arrows cycle options for Pool Temperature, Instant Salinity, and Cell Version in the Menu.
7) Menu: Press sequentially to cycle through the following information:
1. Pool Temperature (xx degrees Fahrenheit or Celsius)
2. Cell Voltage (often 21.0 to 27.0 volts when chlorine is being generated, otherwise 16-31V)
3. Cell Current (often 2.50 to 7.80 amps when chlorine is being generated, otherwise 0 amps during normal
rest cycles.)
4. Real-Time Salinity reading ( xxxx PPM or x.x grams/Liter.)
5. System ID
6. Software revision level
7. Cell Version.
NOTE: You may see a negative sign in front of some diagnostic numbers during normal operation. This is
normal and indicates the system is on one of its two Reverse Polarity cycles.
