IMPORTANT: If you haven’t already done so, it is necessary to balance the pool's water chemistry before the UNIVERSAL-Series is
powered on and used. See pages 6 - 8 for more information.
The following are guidelines for the typical installation using 2” plumbing, which should be performed by a qualified individual. If
1.5” plumbing is present, reducers can be used to adapt the system; be sure to note the changes to any listed measurements or
dimensions that the addition of reducers may cause. Your installation may vary depending on space available and your specific
arrangement of equipment. Double check each measurement before cutting.
Overview

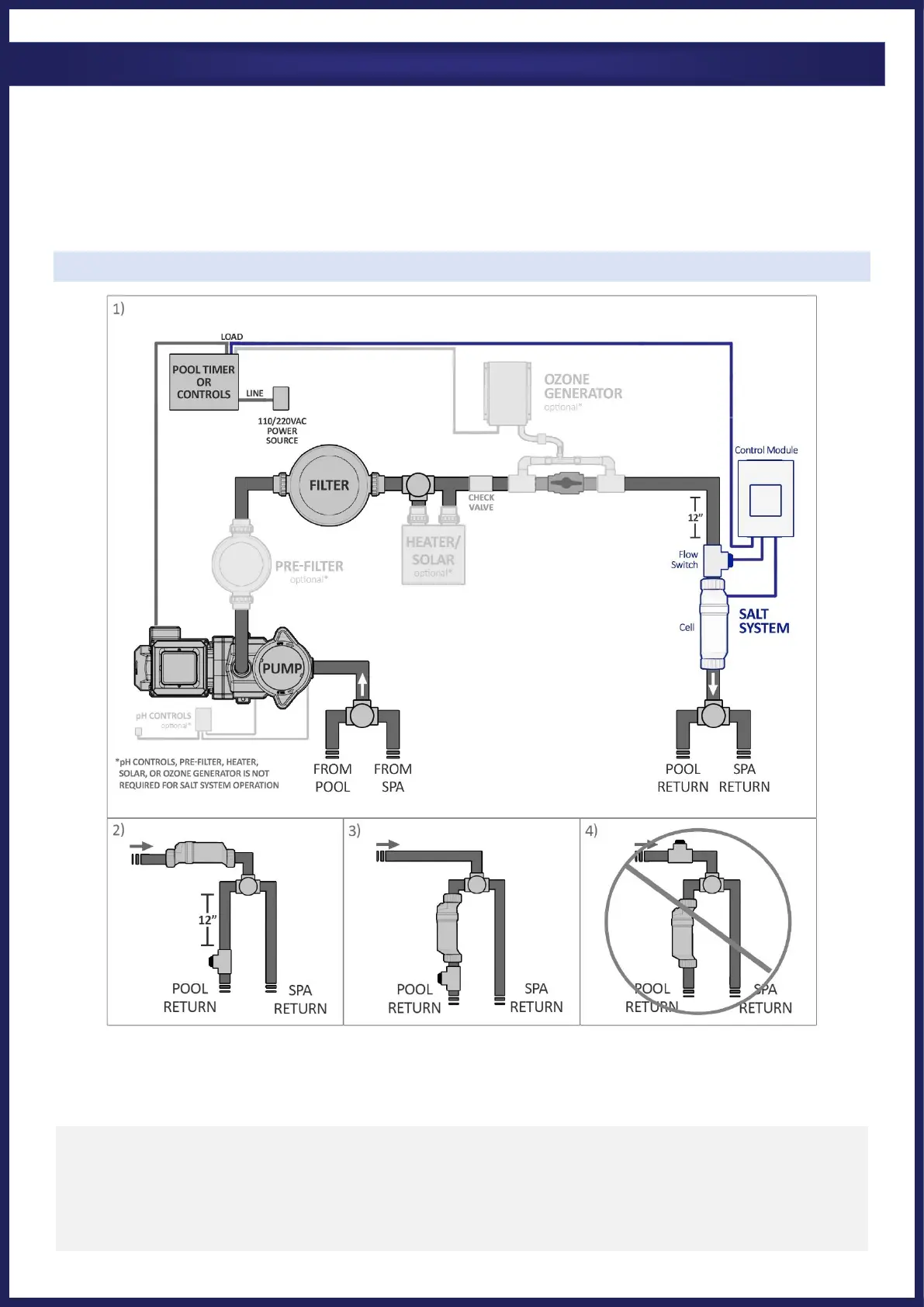

Above are common installation configurations (#1-3). Be sure to avoid any configuration that may potentially allow
water to pass through the Flow Switch, but not the cell (#4). The main components of the UNIVERSAL-Series are the
Control Module, Electrolytic Cell, and Flow Switch.
CAUTION: Ensure that the pool pump and all electrical power are turned off before installation.
TIP: Lay out your equipment and wiring to confirm placement and measurements first before cutting and gluing.
TIP: Be sure to clean & smooth cut pipe. When gluing PVC, parts will slip in place easier once glue is applied. Be
sure to apply firm, constant pressure between both glued parts for up to a minute to prevent potential slippage.
