R
R
G
G
U
U
-
-
1
1
0
0
/
/
R
R
G
G
U
U
-
-
1
1
0
0
C
C
e
e
l
l
e
e
c
c
t
t
r
r
o
o
n
n
i
i
c
c
e
e
a
a
r
r
t
t
h
h
l
l
e
e
a
a
k
k
a
a
g
g
e
e
p
p
r
r
o
o
t
t
e
e
c
c
t
t
i
i
o
o
n
n
r
r
e
e
l
l
a
a
y
y
Page 14

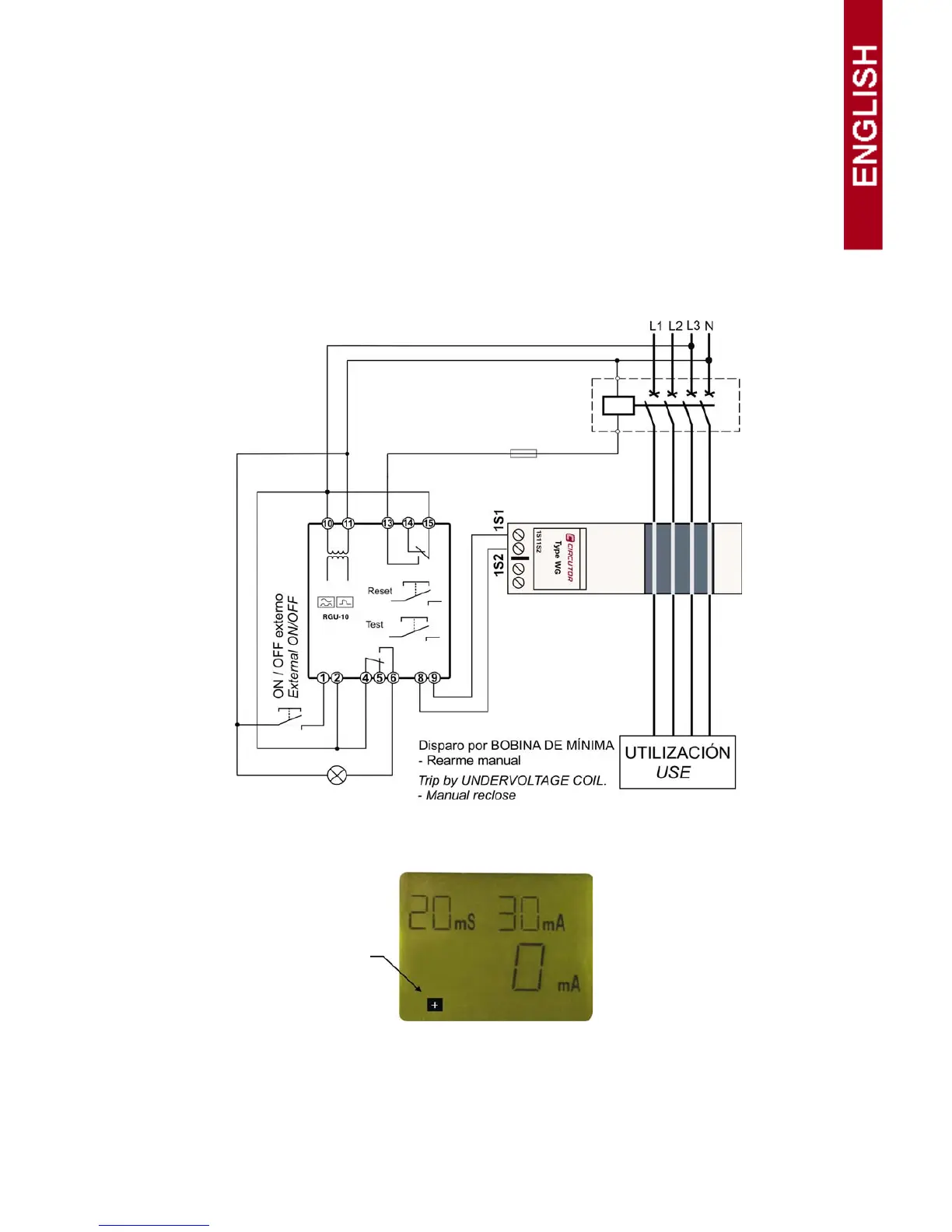

CONNECTING THE EQUIPMENT IN POSITIVE SAFETY
This installation mode provides the most conservative protection from the point of view of personal and property
safety in electrical installations.
With this type of equipment connection and setting, persons all goods are protected against faults where the earth
leakage
relay loses its protection capacity. The last order from the relay is to open the installation in the event of this
power supply problems to the equipment itself or through lack of voltage in the installation (neutral or face fault).
1. The breaking device has the power to trip using the undervoltage coil, either internally (CONTACTOR) or
externally (AUTOMATIC SWITCH).
2. The equipment is set by programming by pressing the Std/+ key in positive safety mode. The "+"symbol appears
on the display.
3. The equipment's power supply has to be the same as the installation or section it is protecting.
Positive
safety
