Cirrus Design Section 7
SR20 Airplane and Systems Description
P/N 21399-004 7-49P/N 21399-004 7-49

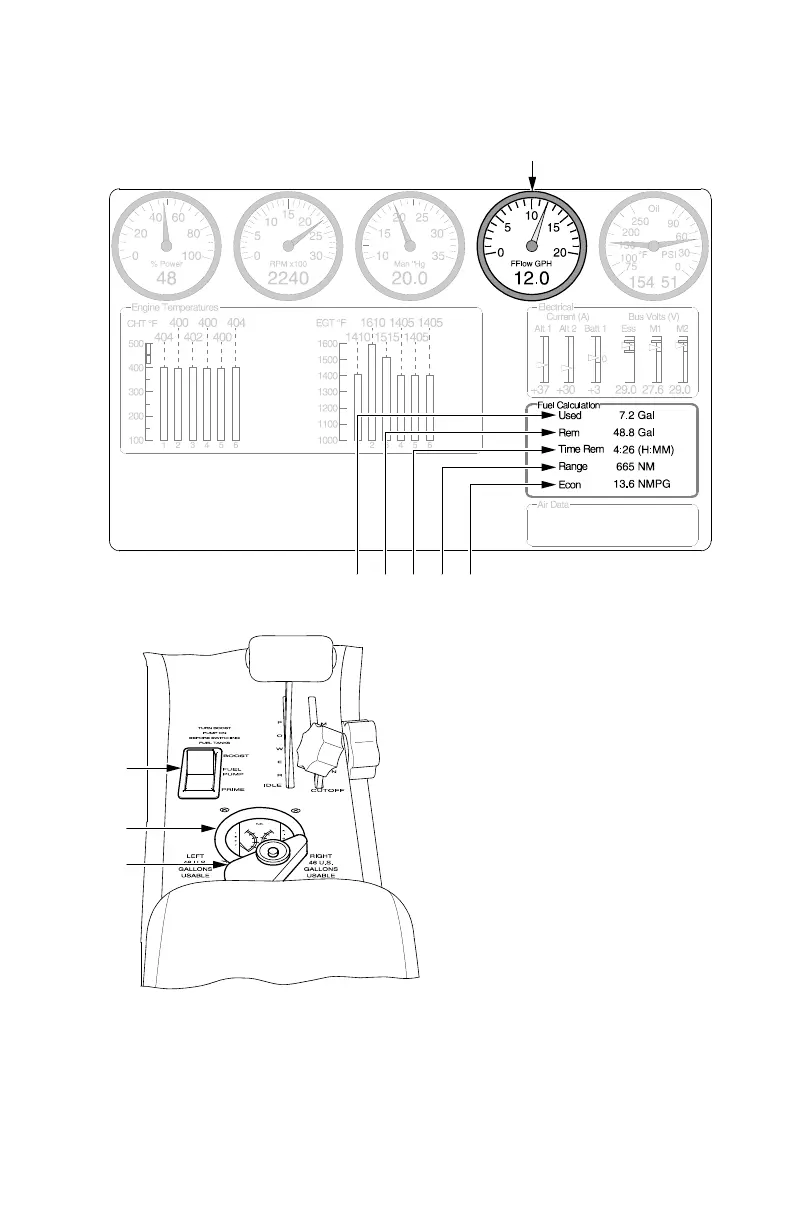

Figure 7-9
Fuel System Controls and Indicating - Serials 2016 thru 2155
7
1
3456
8
Fuel System Indication
Fuel System Controls
2
LEGEND
1. Fuel Flow
2. Fuel Used (Totalizer)
3. Fuel Remaining (Totalizer)
4. Time Remaining (Totalizer)
5. Fuel Range (Totalizer)
6. Nautical Miles Per Gallon (Totalizer)
7. Fuel Pump Switch
8. Fuel Quantity Gage (Float Sensor)
9. Fuel Selector Valve
SR20_FM07_3012A
9
Density Alt 8000 Ft
Oat 31°F -1°C (ISA +0°C)
Serials 2016 thru 2155.
