Cirrus SR20 - Page 234

7-50 P/N 21399-004
Section 7 Cirrus Design
Airplane and Systems Description SR20
Figure 7-10
Fuel System Controls and Indicating - Serials 2156 and subs

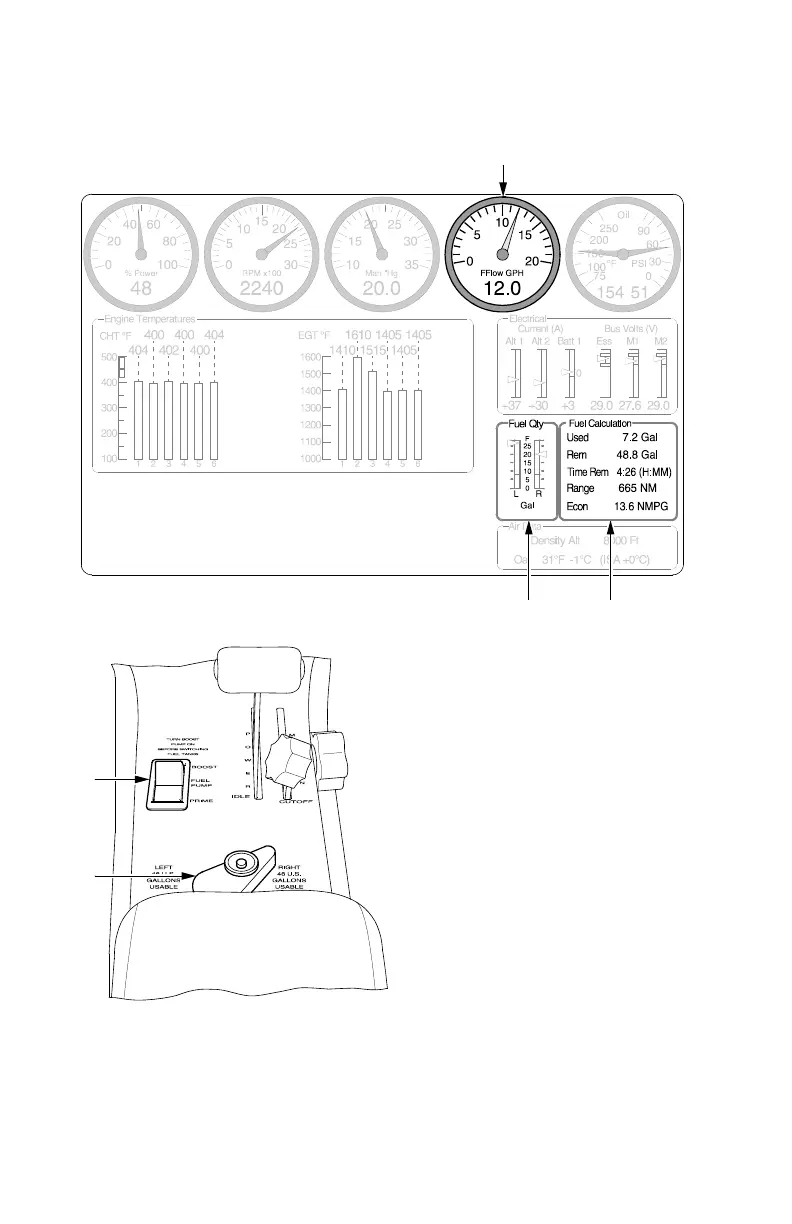

LEGEND
1. Fuel Flow Gage
2. Fuel Calculations:
·Fuel Used (Totalizer)
·Fuel Remaining (Totalizer)
·Time Remaining (Totalizer)
·Fuel Range (Totalizer)
·Nautical Miles Per Gallon (Totalizer)
3. Fuel Quantity Gage (Float Sensor)
4. Fuel Pump Switch
5. Fuel Selector Valve
Serials 2156 & subs.
3
1
2
Fuel System Indication
Fuel System Controls
SR20_FM07_3512
5
4
Revision A1
