Spectralink VIEW Certified Configuration Guide: Cisco Controllers and APs
721-1001-000-AH.docx
December 2016 32

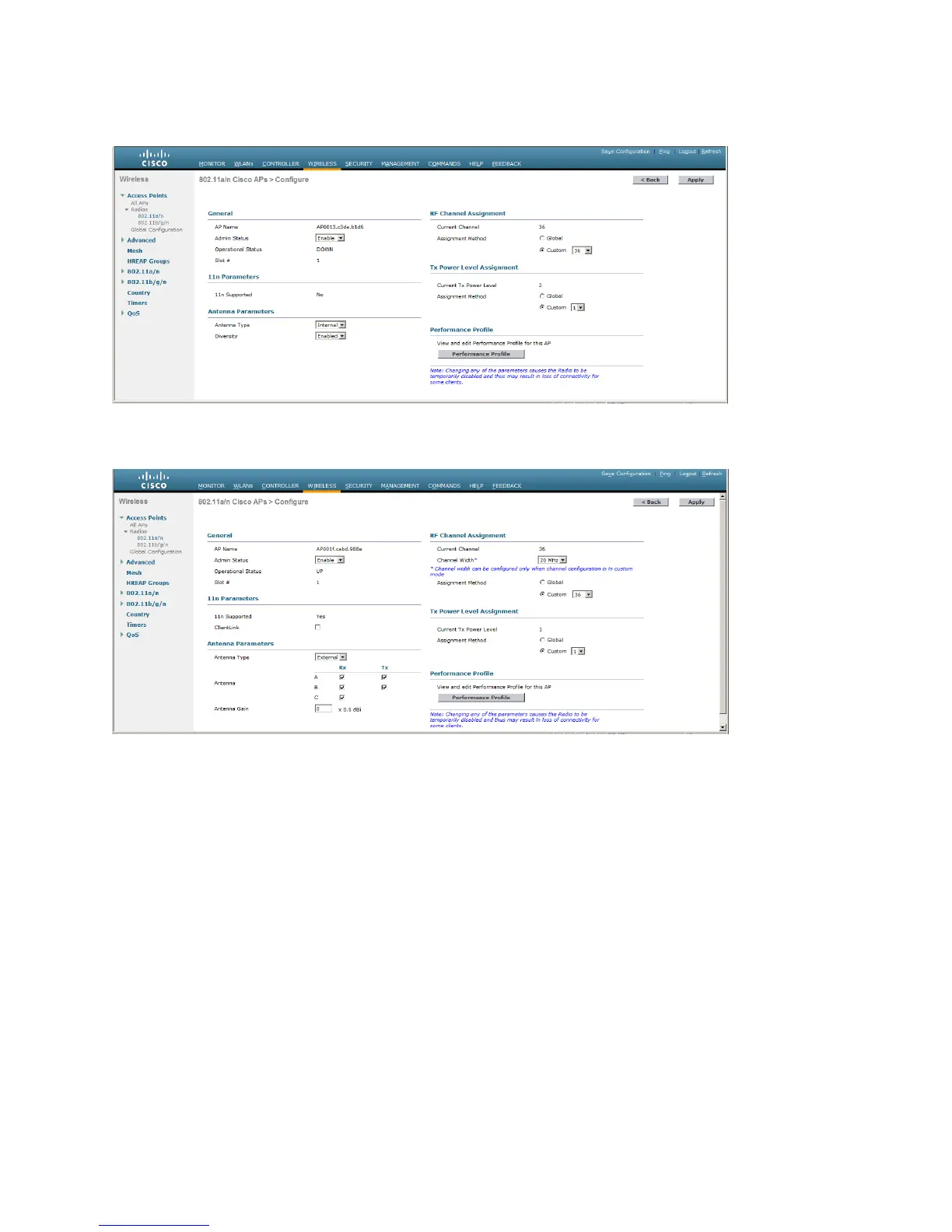

Screenshot for access points with internal antennas:
Screenshot for access points with external antennas and version 7.4 or later:
Network settings
In the navigation pane under 802.11a/n, click Network. Set the network parameters as follows:
1 Set 802.11a Network Status to Disable; the radio will be re-enabled after setting radio
parameters
2 For setting up the Data Rates, please consult your facility’s RF site survey, designed for
voice traffic, to determine if you have sufficient coverage to support all data rates. The
handset requires the following minimum dBm reading to support the corresponding
Mandatory data rate setting in the access point.
