Spectralink VIEW Certified Configuration Guide: Cisco Controllers and APs
721-1001-000-AH.docx
December 2016 17

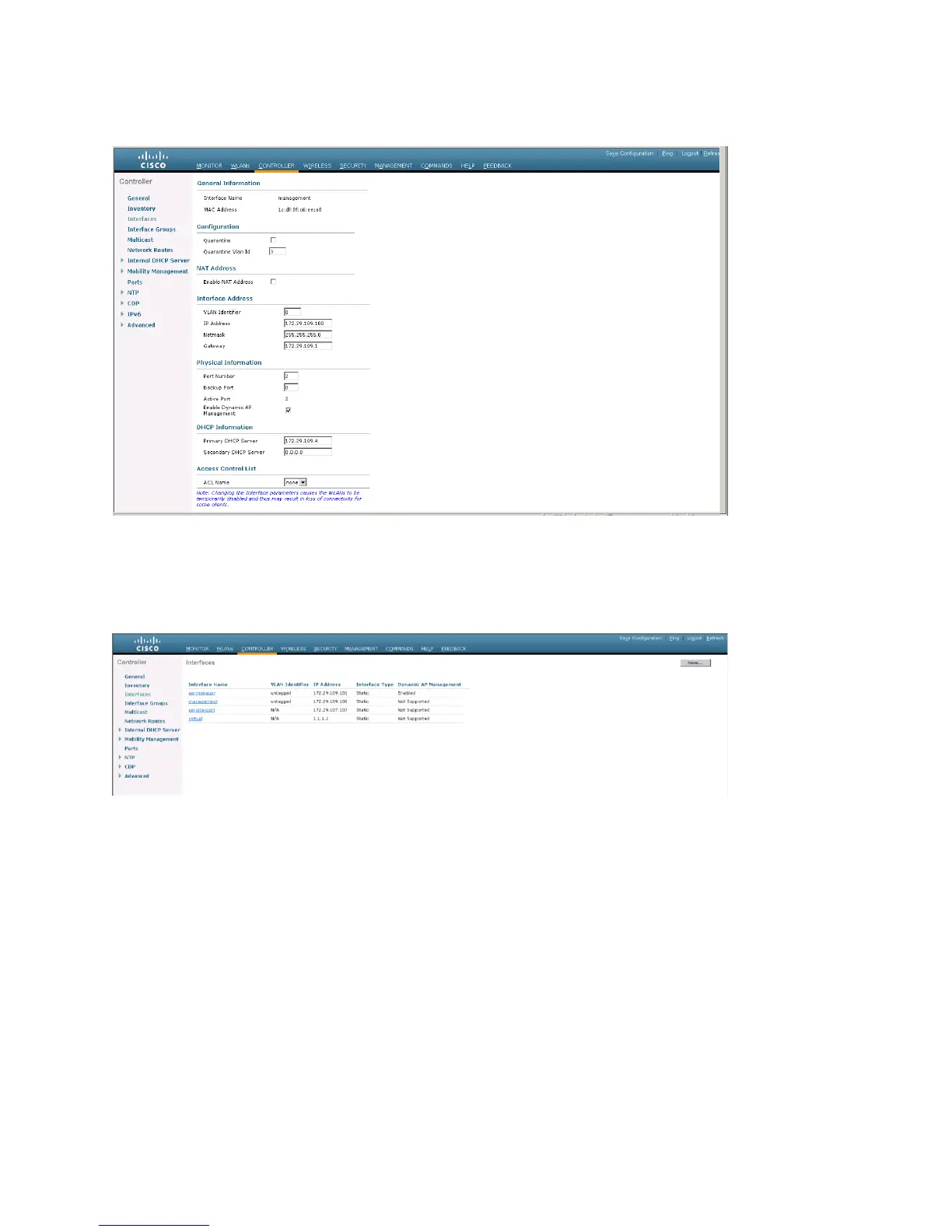

Cisco 5500 Example:
7 Under service-port, (if present), enter a valid IP Address and Netmask in a different
subnet than the management interface.
8 Click the Apply button and save the changes.
Defining a RADIUS Server
If it is desired to use WPA2-Enterprise security, it is necessary to define a RADIUS server.
1 From the main menu, click SECURITY.
2 Expand RADIUS in the left pane.
3 Click Authentication.
4 Click New… in the right hand corner of the screen.
5 Enter the IP Address of the RADIUS server in the Server IP Address field.
