1-4 Router Installation and Configuration Guide
Hardware Features

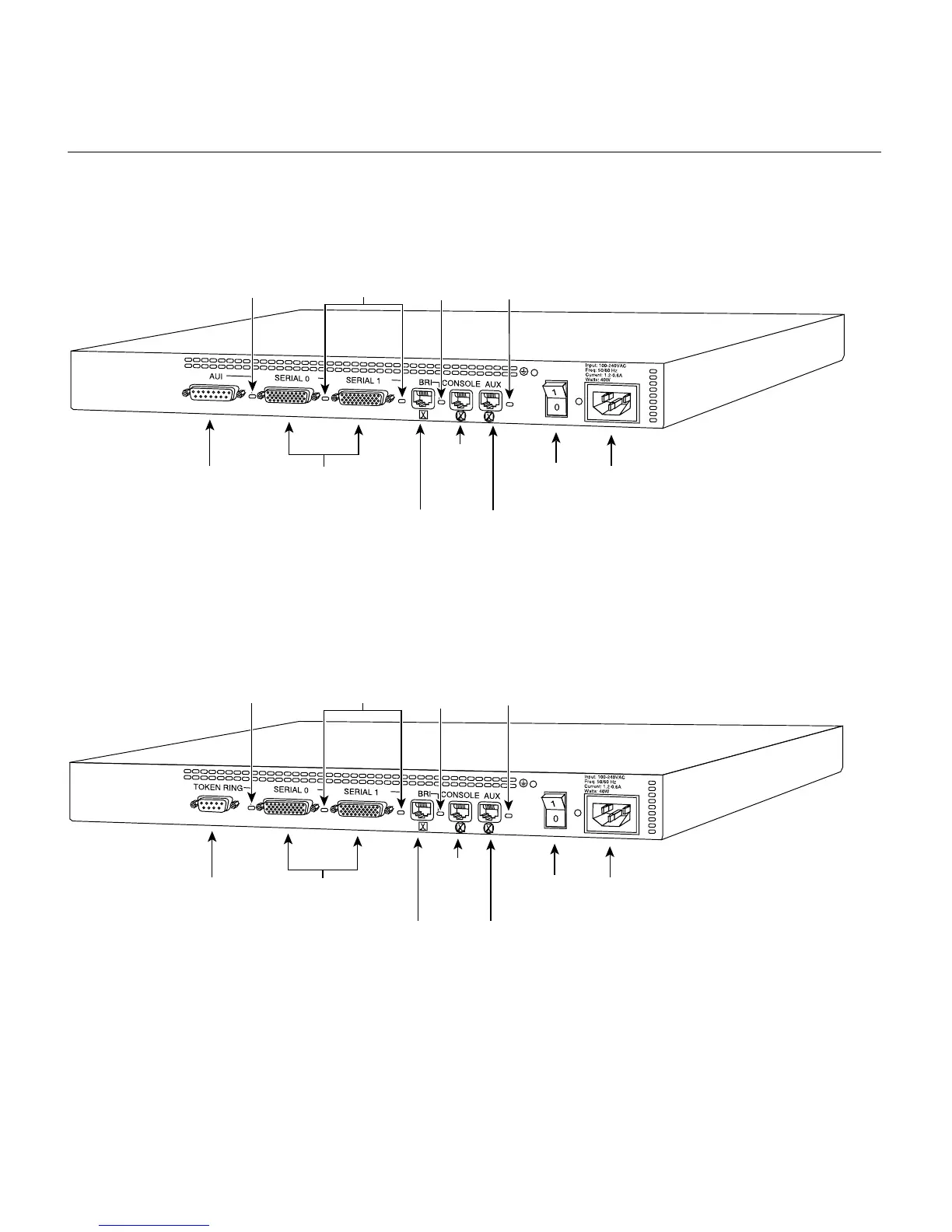

Figure 1-3 Model 2503 Router Rear Panel
Figure 1-4 Model 2504 Router Rear Panel
H6586
Ethernet
AUI port
(DB-15)
PowerSynchronous
serial ports
(DB-60)
Console
port
(RJ-45)
ISDN
BRI port
(RJ-45)
Auxiliary port
(RJ-45)
Ethernet
AUI LED
Synchronous
serial LEDs
ISDN
BRI LED
System
OK LED
On/off
switch
Power
On/off
switch
H6587
Token Ring
port (DB-9)
Synchronous
serial ports
(DB-60)
Token Ring
LED
Synchronous
serial LEDs
System
OK LED
ISDN
BRI LED
Console
port
(RJ-45)
ISDN
BRI port
(RJ-45)
Auxiliary port
(RJ-45)
