Cisco 2600 Series Installation Guide

Installing the Cisco RPS Adapter Plate in Cisco 2600 Series Routers 7
Removing the Power Supply
Removing the Power Supply
This section describes how to remove the internal power supply. Although the AC power supply is
shown in the illustrations that follow, the procedure is the same for removing both the AC and DC
power supplies.
Take these steps to remove the power supply:
Step 1 Locate the six-pin connector on the system board near the front of the router, and
disconnect it. (See Figure 4.)
Note If cable tie-wraps on the harness interfere with removing the connectors, cut the
tie-wraps, being careful not to cut the power supply wires.

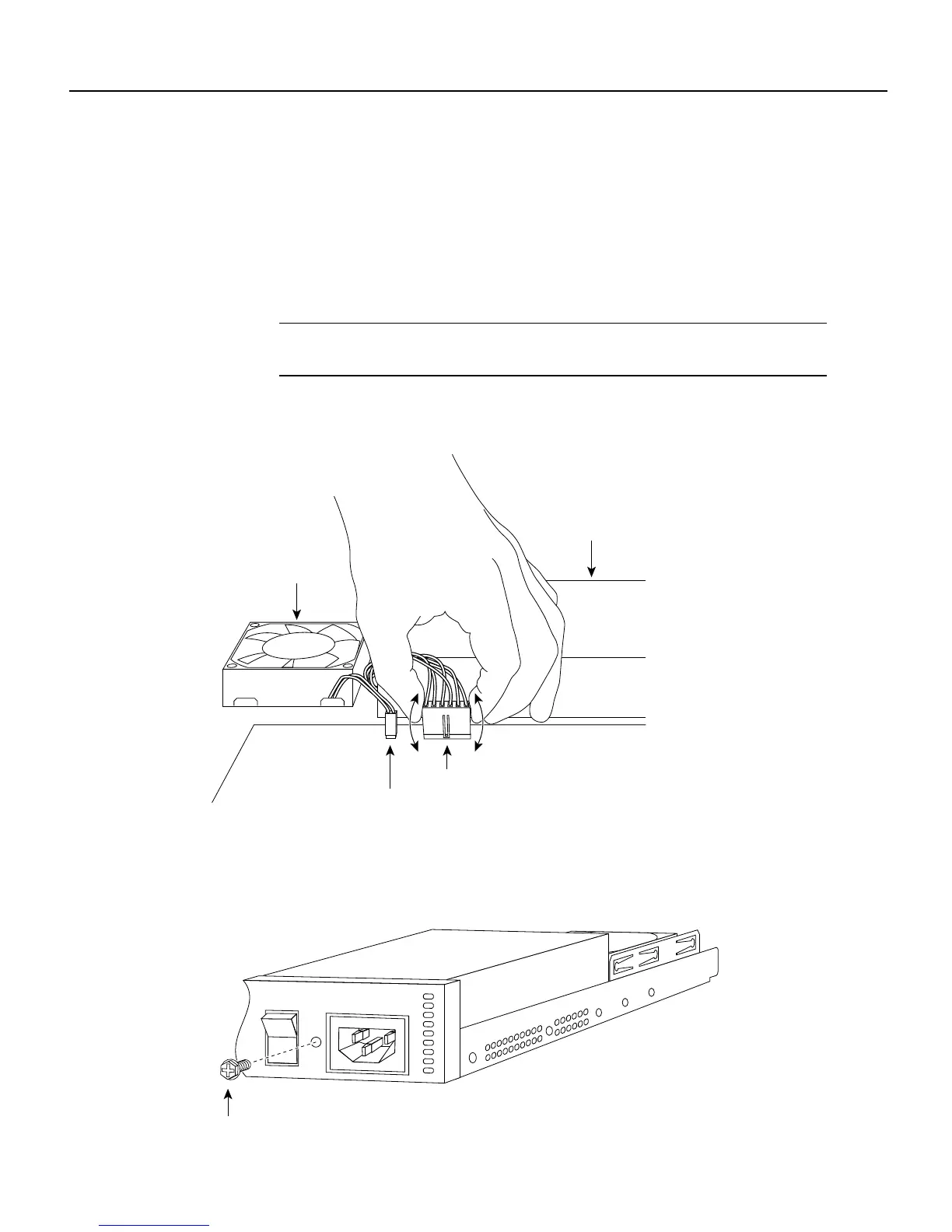

Figure 4 Locating the Connectors
Step 2 Remove the mounting screw that secures the power supply to the chassis. (See Figure 5.)
Set aside this screw for later use.
Figure 5 Removing the Mounting Screw
H9081
Power connector
Fan connector
Fan
AC power supply
H9079
Input: 100-240VAC
Freq: 50/60 Hz
Current: 1.2-0.6A
Watts: 40W
0
1
Screw
