Cisco 3000 Series User Manual

Site
Log
Ste
Log
The Site
Log provides
historical record of all actions relevant
to
the
system Keep
it in
common
place near
the chassis where
anyone
who
performs
tasks has
access to
it
Use
the Installation
Checklist to
verify
steps
in the installation and
maintenance of
your
system
Site
Log
entries
might
include the
following
Installation
progressMake
copy
of
the Installation
Checklist and insert it into the Site
Log
Make entries
on
the checklist
as
each
procedure
is
completed
Upgrades
and removal and
replacement proceduresUse
the Site
Log
as record of
ongoing
system
maintenance and
expansion history
Each time
any
procedure
is
performed
on the
system
update
the Site
Log
to
reflect the
following
Configuration changes
Maintenance schedules
and
requirements
Corrective maintenance
procedures performed
Intermittent
problems
Related comments
Toos and
Equipment Required
You need the
following
tools and
equipment
to install and
upgrade
the router
ESD cord and wrist
strap
Screwdrivers No and No
Phillips
Preparing
to Make Connections
When viewed from the
rear
the
power
cable
and
power
switch
appear
on the
right
side of the chassis
The
ports
for the
system
console
auxiliary AUX
LAN
Token Ring Ethernet
or
BRI
and serial
line
appear
to the left of the
power
cable
and switch The
configuration depends
on which model
you
purchase
Refer to
Figures
2-2
through
2-7 for rear views of the different router
configurations

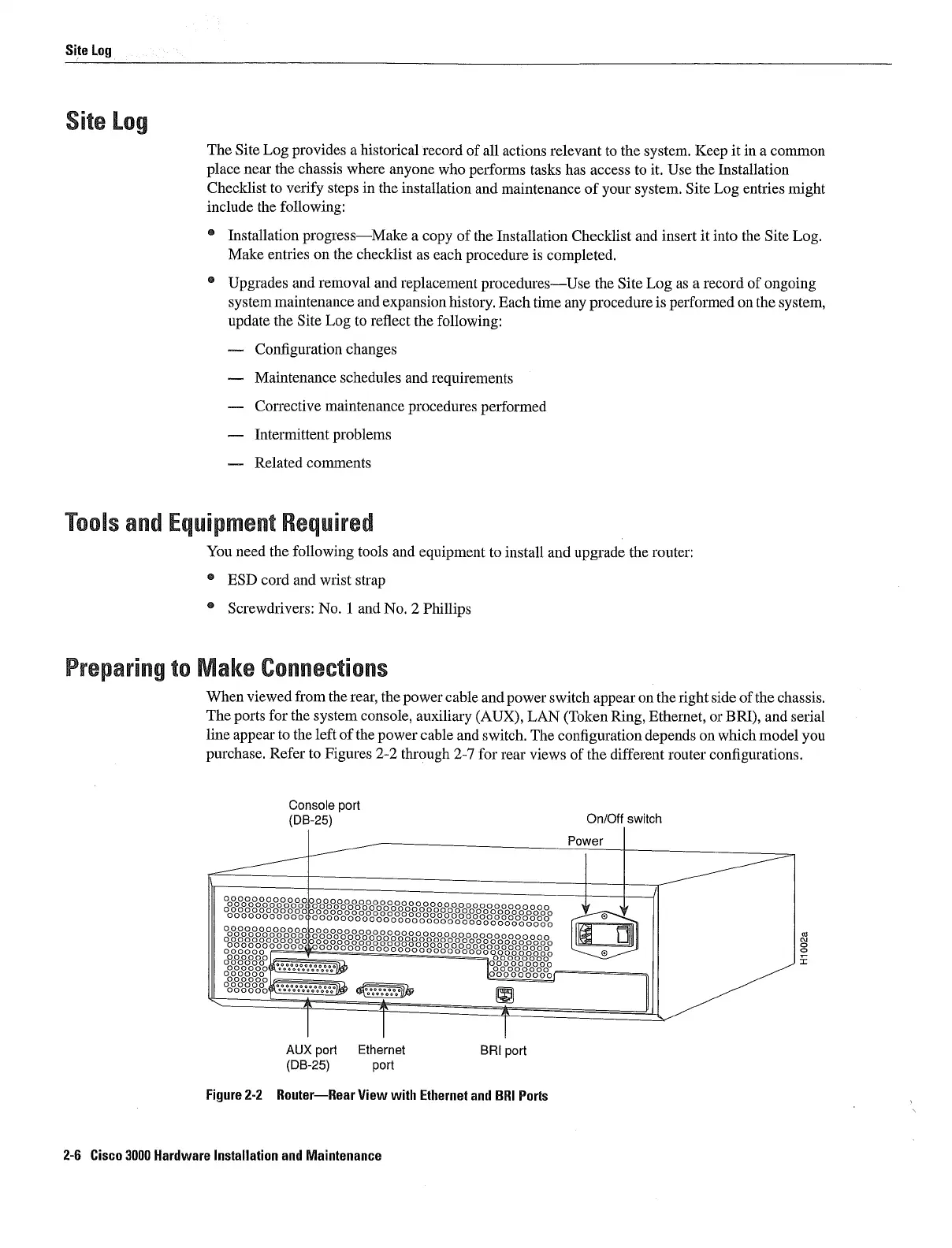

Figure
22 RouterRear View with Ethernet
and BRI Ports
cJ
AUX
port
Ethernet BRI
port
DB-25 port
2-6 Cisco 3000 Hardware Installation and Maintenance
