Inspecting
the
System
BRI Connections
The Basic Rate Interface
BRI
port
is
an
RJ-45 connector located
on
the chassis
rear
to the
right
of
the Ethernet
port
See Figure 2-2
Figure
2-6
and
Figure 2-7
Use
an
RJ-48 cable to connect the
system
directly
to the
Integrated
Services
Digital
Network
ISDN through
the NT1 The
common
carrier will
provide
the NT1 connection
worldwide
except
in North America

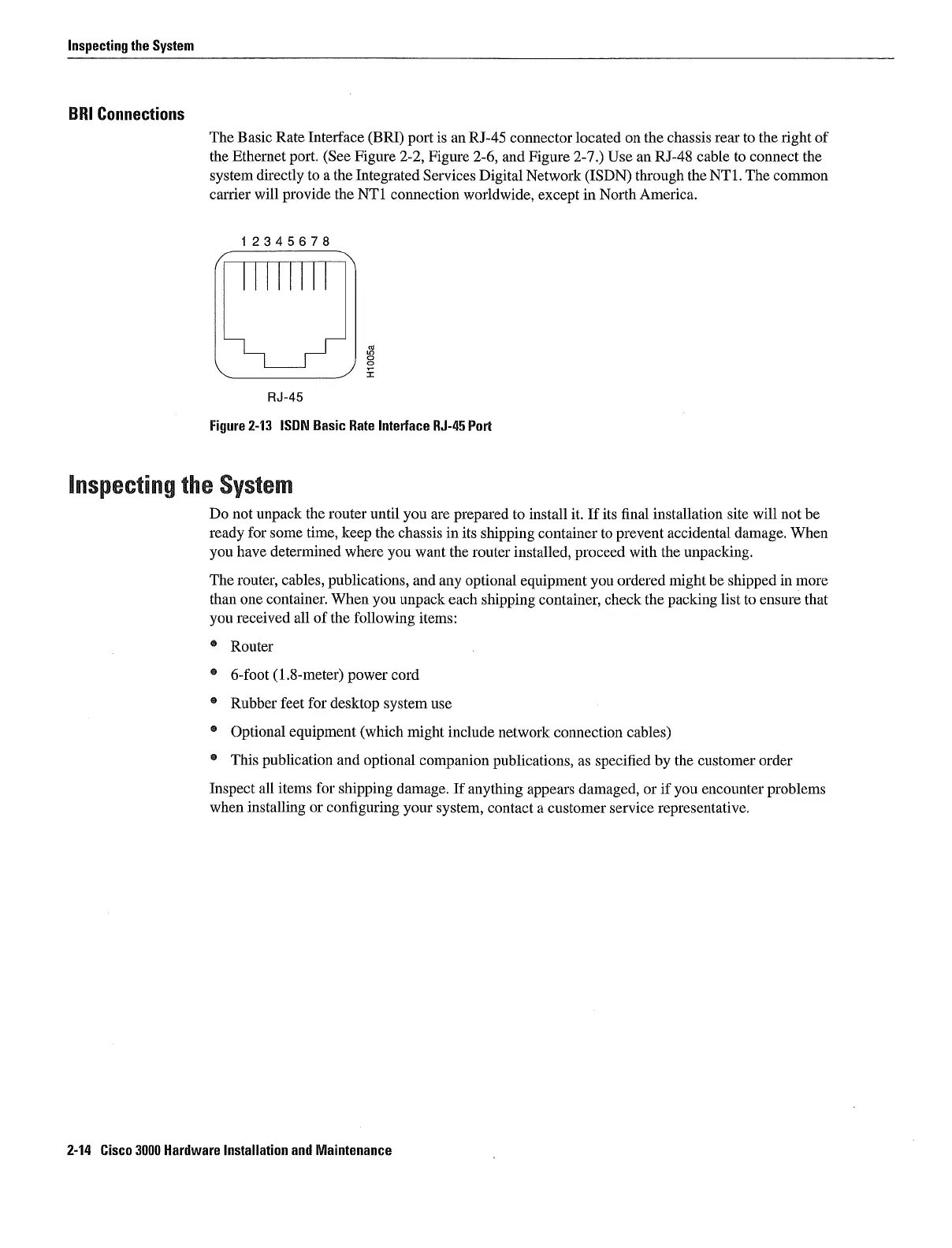

12345678
Figure
2-13 ISON Basic Rate Interface RJ-45 Port
Inspecting
the
System
Do not
unpack
the router until
you
are
prepared
to install it If its final installation site will not be
ready
for some
time keep
the chassis in its
shipping
container to
prevent
accidental
damage
When
you
have determined where
you
want the router
installed
proceed
with the
unpacking
The
router cables publications
and
any optional equipment
you
ordered
might
be
shipped
in
more
than
one
container When
you unpack
each
shipping
container
check the
packing
list to
ensure
that
you
received all of the
following
items
Router
6-foot
1.8-meter
power
cord
Rubber feet for
desktop system
use
Optional equipment which might
include
network
connection
cables
This
publication
and
optional companion publications
as
specified by
the
customer
order
Inspect
all items for
shipping damage
If
anything
appears
damaged
or if
you
encounter
problems
when
installing
or
configuring
your
system
contact customer service
representative
RJ-45
2-14 Cisco 3000 Hardware Installation and Maintenance

Cisco 3000 Series Specifications

General

Model	Cisco 3000 Series
Ports	Varies by model
Switching Capacity	Up to 176 Gbps
Power Supply	Internal or external, varies by model
Layer Support	Layer 2 and Layer 3
Power over Ethernet	PoE or PoE+
Memory	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0° to 45°C (32° to 113°F)
Operating Humidity	10% to 85% non-condensing
Uplink Interfaces	Optional 1G/10G SFP/SFP+ or 10GBase-T
