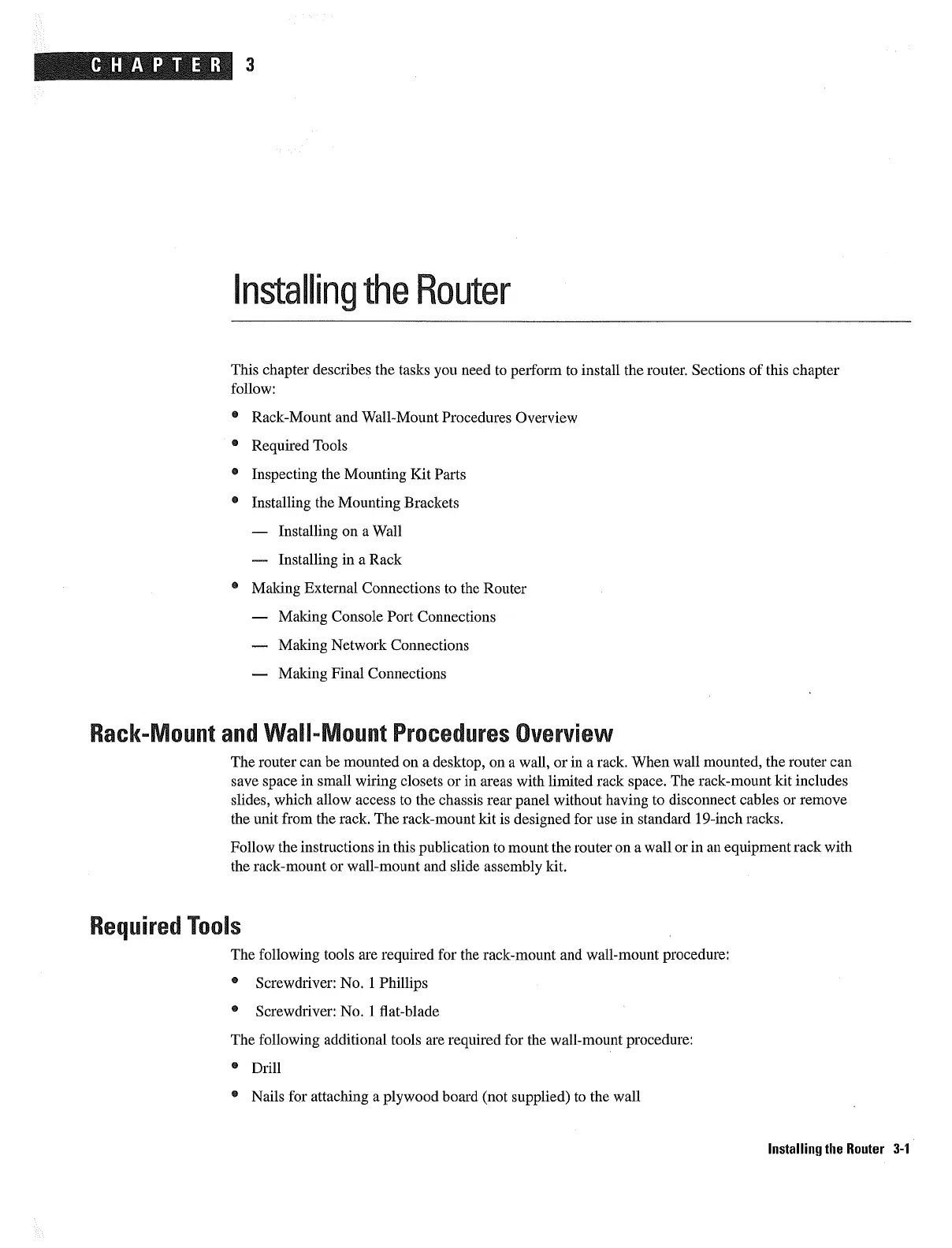

Cisco 3000 Series User Manual

CHAPTER
Rack-Mount
Required
Toos
nstaDing
the
Router
This
chapter
describes the tasks
you
need to
perform
to install the router
Sections
of
this
chapter
follow
Rack-Mount and
Wall-Mount Procedures Overview
Required
Tools
Inspecting
the
Mounting
Kit Parts
Installing
the
Mounting
Brackets
Installing
on Wall
Installing
in Rack
Making
External Connections to the Router
Making
Console
Port Connections
Making
Network
Connections
Making
Final Connections
and WaD-Mount Procedures Overview
The
router can
be mounted
on
desktop
on
wall
or in rack When
wall
mounted
the
router can
save
space
in small
wiring
closets or in areas with limited rack
space
The rack-mount kit includes
slides
which
allow
access to the chassis rear
panel
without
having
to
disconnect cables
or remove
the unit from
the
rack
The
rack-mount kit is
designed
for use in standard 19-inch
racks
Follow the
instructions in
this
publication
to mount the router on wall or
in
an
equipment
rack with
the rack-mount or wall-mount and slide
assembly
kit
The
following
tools are
required
for the rack-mount and wall-mount
procedure
Screwdriver No
Phillips
Screwdriver No flat-blade
The
following
additional tools are
required
for the wall-mount
procedure
Drill
Nails for
attaching plywood
board
not
supplied
to the wall
Installing
the Router 3-1

Cisco 3000 Series Specifications

General

Model	Cisco 3000 Series
Ports	Varies by model
Switching Capacity	Up to 176 Gbps
Power Supply	Internal or external, varies by model
Layer Support	Layer 2 and Layer 3
Power over Ethernet	PoE or PoE+
Memory	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0° to 45°C (32° to 113°F)
Operating Humidity	10% to 85% non-condensing
Uplink Interfaces	Optional 1G/10G SFP/SFP+ or 10GBase-T
