Cisco 3000 Series

Making
External Connections to the Router
Making
Network Connecüoris
Make the network connections
by attaching
the network interface cables
Token Ring Ethernet
serial or
BRII
to the
appropriate
connector on the router
Making
Token
Ring
Connections
To make Token
Ring connections proceed as
follows
Step
Attach the
9-pin D-type
connector of the Token
Ring
cable to the router connector labeled
Token
Ring See Figure 3-9
Cd
Step
Attach the IEEE 802.5
connector to
the media attachment unit
MAU See Figure 3-9
Step
When all
your
network connections
are
completed proceed
to
the section
Making
Final
Connections
Making
Ethernet
Connections
To make Ethernet
connections
proceed
as follows
Step
Attach the Ethernet AUI
transition
cables
to the
15-pin D-type connectors
on
the
router
See Figure 3-10
Step
Attach the
slide-latch connector of the same
cables
to the transceiver or
hub
Power
Token
Ring
lobe cable
not included
if
9-pin
connector
Standard IEEE
Ring

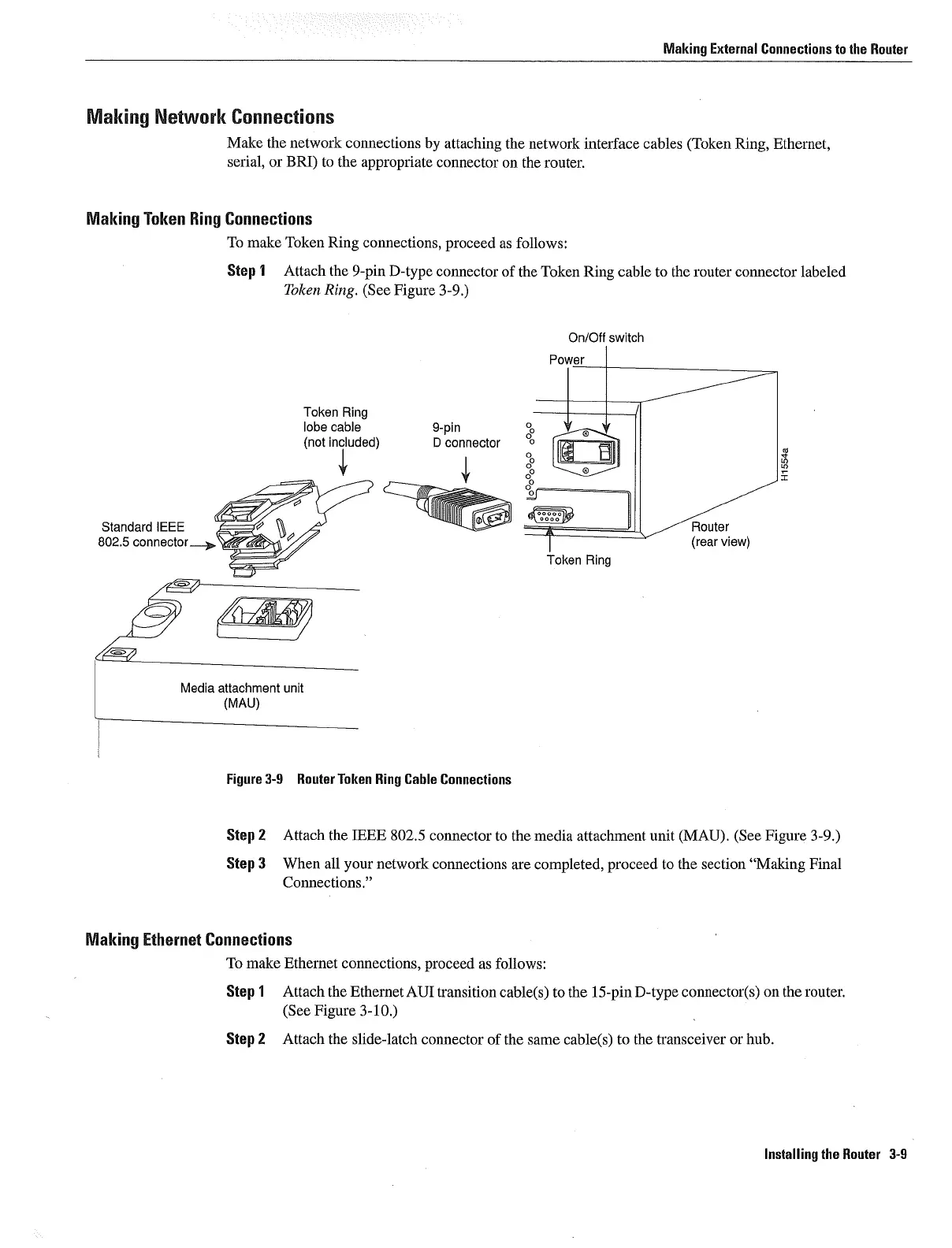

Figure
3-9 Router Token
Ring
Cable Connections
Installing
the Router
39
