Replacing
Flash EPROMs in the Model
3202
Pull tabs
away
with
thumbs bracing
forefinger against
post
Raise SIMM
to vertical
position
Polarization
notch
Step Plug
the
new
Flash
memory
SIMM
into the
open
connector To insert
new SIMM
slide
the end with the metal
fingers straight
down into the SIMM connector
socket at an
angle
perpendicular
to the
system
card
Gently
rock the SIMM back toward the SIMMs
already
installed and
snap
into
place
Do not use excessive
force or
the
connector
could break
Repacng
Hash
EPROMs the Mode
3202
After
opening
the model 3202 chassis
to access the
system
card
follow the
procedures
in this section
to
replace
the Flash EPROMs
After
removing
the old
EPROMs keep
them
separate
from the
new ones to
avoid
mixing
the
two
sets
Caution The correct
placement
of the
Flash EPROMs is crucial If
improperly positioned
the
EPROMs could be
damaged
when
the
system
is
powered
on
Read
through
all of the
instructions
before
proceeding
To
prevent damage
to the EPROMs from electrostatic
discharge when handling
the
system
and its
components
be
sure to follow the ESD
procedures
described in
Chapter Also
be careful not to
damage
or scratch the
printed
circuit card under the
EPROMs
In addition to the tools listed in
the section Tools and
Equipment Required
for Flash
Memory
SIMM
Replacement
you
need the
following
tools and
equipment
to
install
Flash EPROMs in the
model 3202

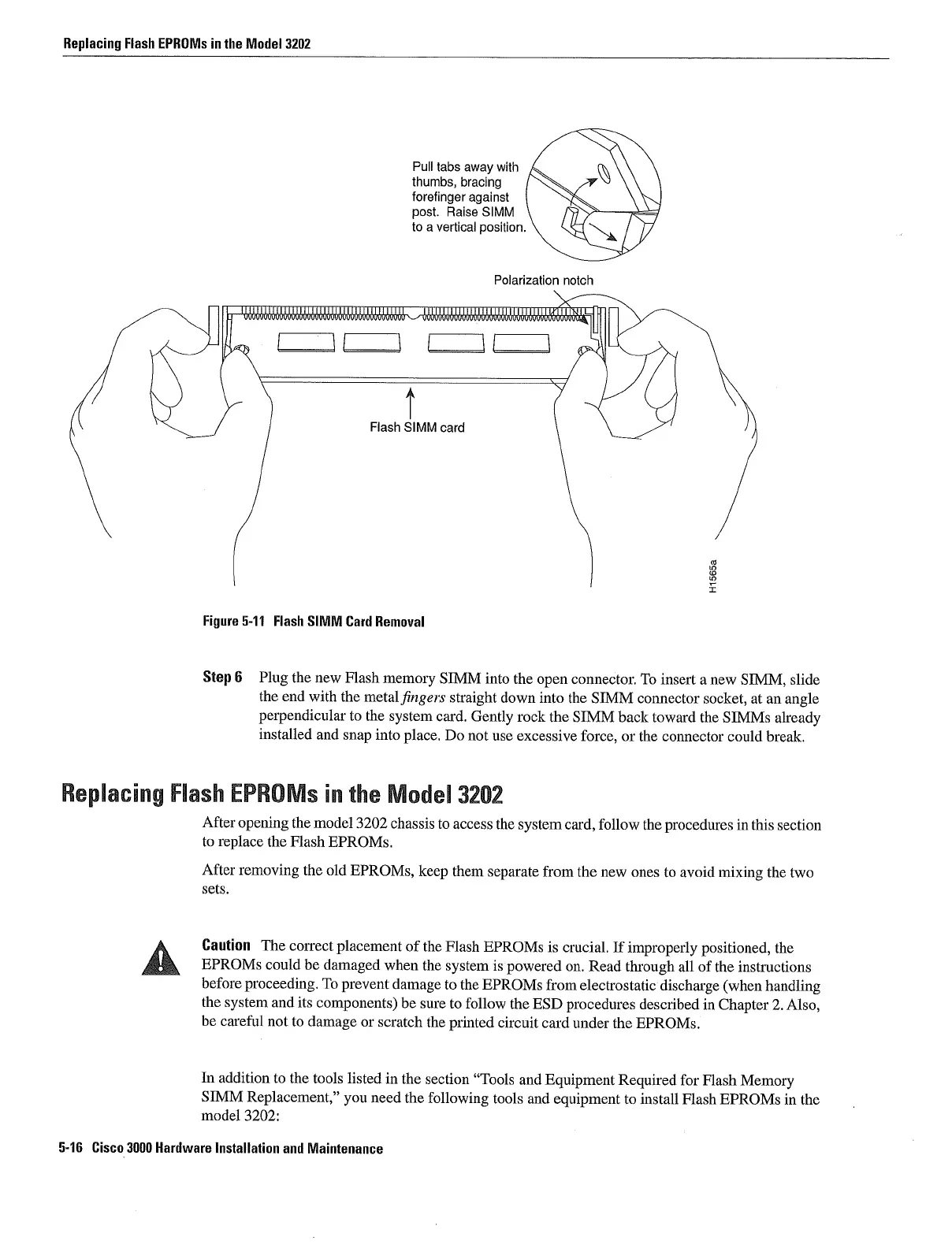

Figure
5-11 Flash SIMM Card
Removal
5-16 Cisco 3000
Hardware Installation and Maintenance
