Cisco 3745 Installation Guide

1-2
Cisco 3700 Series Routers Hardware Installation Guide
OL-2180-08
Chapter 1 Overview of Cisco 3700 Series Routers
Hardware Features
• Two slots for network modules, one of which can accommodate a double-wide network module
• Three interface card slots
• Two Cisco 3700 CompactFlash slots (one external and one internal)
• Two AIM slots
• Installation in a 19- or 23-inch rack or on a desk
• Support for Cisco Redundant Power System
• 2-rack unit (RU) chassis height

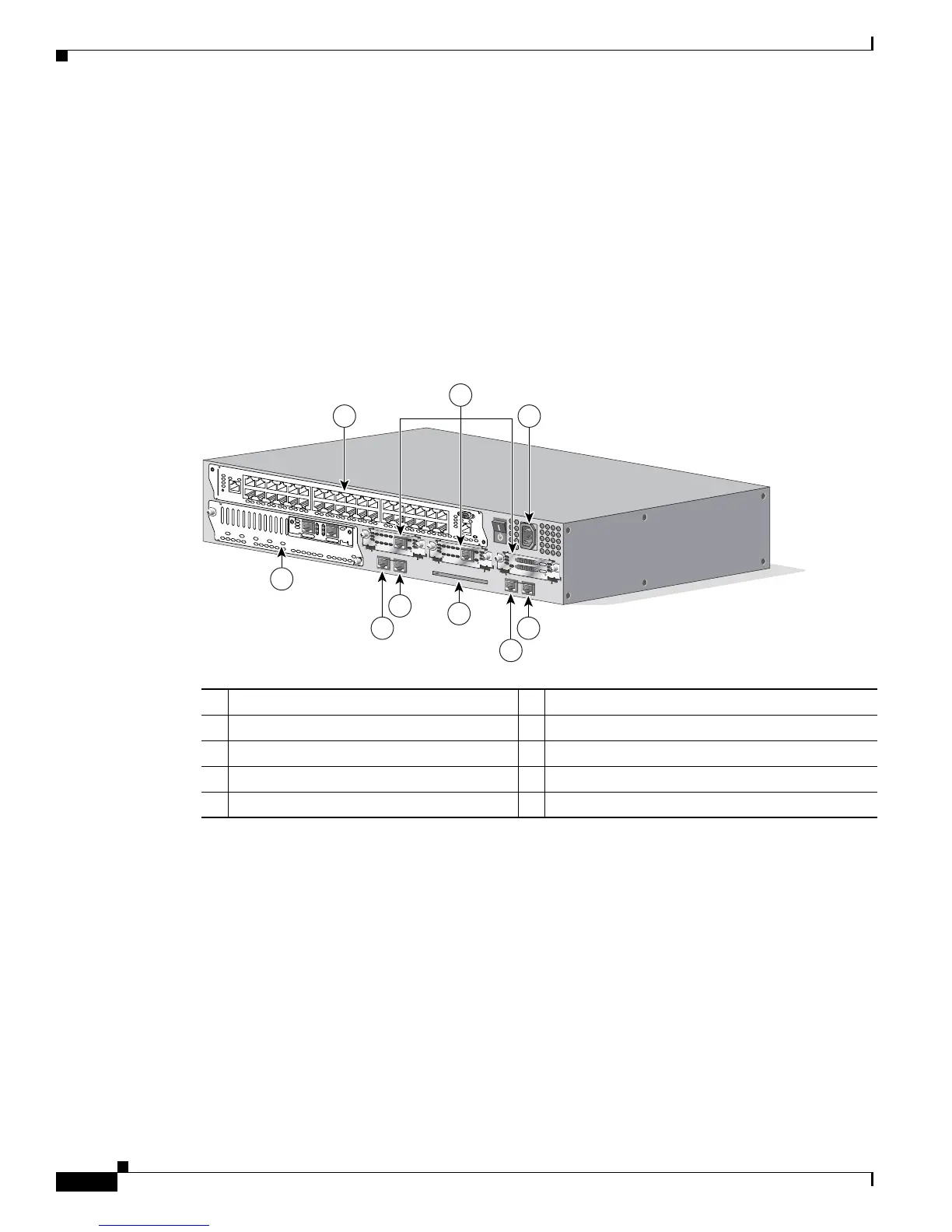

Figure 1-1 shows the rear panel of the Cisco 3725 router.
Figure 1-1 Rear Panel of the Cisco 3725 Router
Cisco 3745
Cisco 3745 routers include the following additional features:
• High-performance 350-MHz RISC processor
• Up to 256 MB SDRAM
• Up to 128 MB CompactFlash memory
• Four slots for network modules that can accommodate up to two double-wide network modules
• Three interface card slots
• Two Cisco 3700 CompactFlash memory card slots (one external and one internal)
• Two AIM slots
1 Double-wide network module slot 6 CompactFlash memory card slot
2 Interface card slots 7 Fast Ethernet 0/0 port
3 Power supply 8 Fast Ethernet 0/1 port
4 Auxiliary port 9 Single-wide network module slot
5 Console port
62691
SEE MANUAL BEFORE INSTALLATION
AL
CD
LP
RD
TD
SEE MANUAL BEFORE INSTALLATION
DSU
56K
AL
CD
LP
RD
TD
SEE MANUAL BEFORE INSTALLATION
DSU
56K
EN
V0
BANK 4
BANK 3
BANK 2
BANK 1
BANK 0
NM-HDV
VWIC
2MFT-E1
SEE
MANUAL
BEFORE
INSTALLATION
CTRLR E2
CTRLR E1
AL
LP
CD
1 3
2
4
6
5
7
9
8

Cisco 3745 Specifications

General

Form Factor	Rack-mountable
Network Module Slots	4
Advanced Integration Module Slots	2
Product Type	Router
Connectivity Technology	Wired
Data Transfer Rate	100 Mbps
Data Link Protocol	Ethernet, Fast Ethernet
Encryption Algorithm	DES, 3DES, AES
Authentication Method	RADIUS, TACACS+
Operating System	Cisco IOS
Power Supply	AC 120/230 V (50/60 Hz)
Operating Temperature	32 to 104 °F (0 to 40 °C)
Storage Temperature	-4 to 149 °F (-20 to 65 °C)
Interfaces	10/100 Ethernet
RAM	256 MB
Flash Memory	128 MB (max)
Dimensions	17.5 inches
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, Telnet, HTTP
Humidity	10% to 85% non-condensing
Processor	Motorola PowerPC
