Chapter 1 Overview of Cisco 3700 Series Routers
Interface Numbering

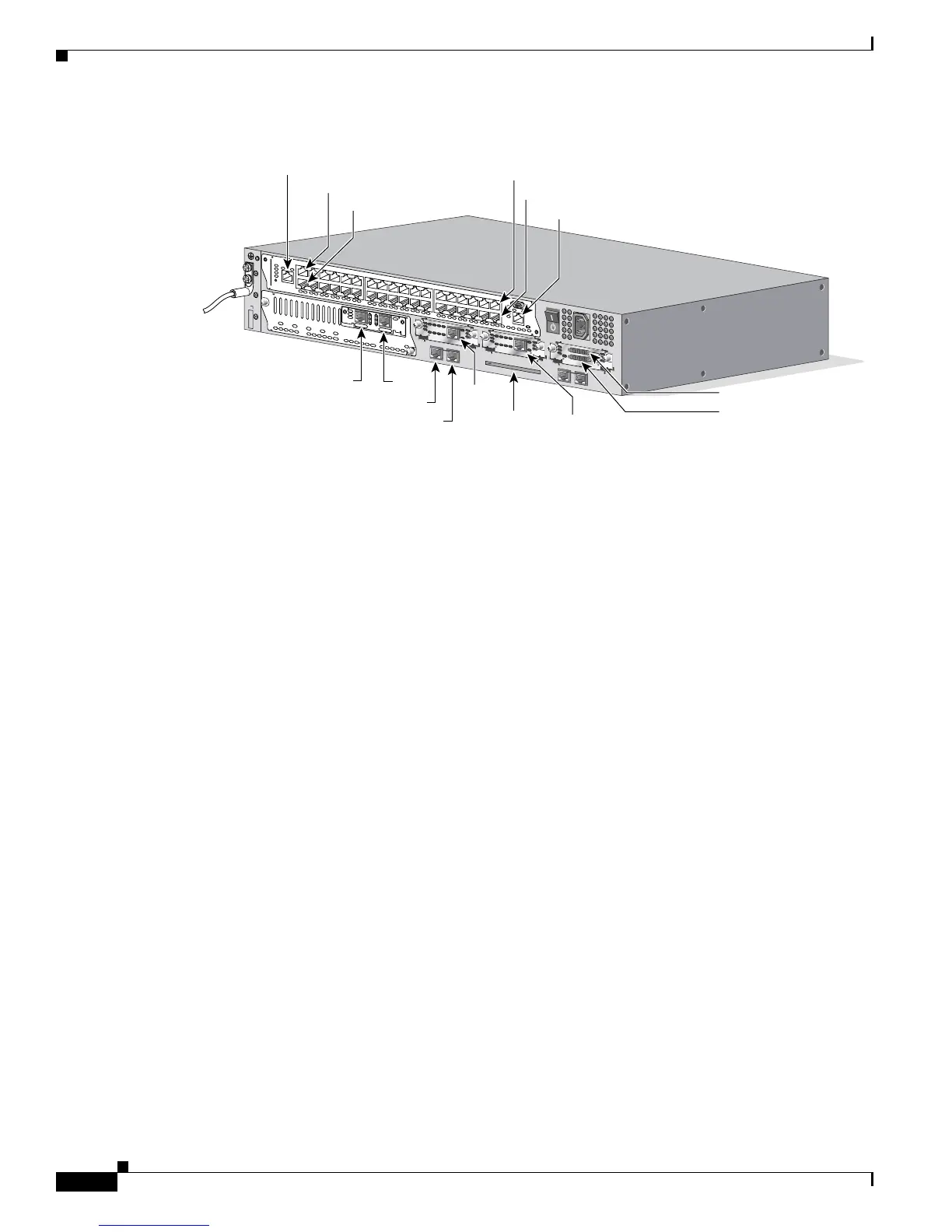

Figure 1-3 WAN and LAN Interface Numbering
The slot number for all WIC interfaces is always 0. (The W0 and W1 slot designations are for physical
slot identification only.) Interfaces in the WICs are numbered from right to left, starting with 0/0 for each
interface type, regardless of which physical slot the WICs are installed in. Some examples are as follows:
• If slot W0 is empty and slot W1 contains a 1-port serial WIC, the serial interface in the WIC is
numbered Serial 0/0.
• If slot W0 contains a 2-port serial WIC and slot W1 contains a 1-port serial WIC, the serial
interfaces in physical slot W0 are numbered Serial 0/0 and Serial 0/1, and the serial interface in
physical slot W1 is numbered Serial 0/2.
• If slot W0 contains a 2-port serial WIC and slot W1 contains a 1-port BRI WIC, the serial interfaces
in physical slot W0 are numbered Serial 0/0 and Serial 0/1, and the BRI interface in physical slot
W1 is numbered BRI 0/0.
Voice Interface Numbering
Voice interfaces are numbered as follows:
chassis-slot/voice-module-slot/voice-interface
If a 4-channel voice network module is installed in chassis slot 1, the voice interfaces are:
• 1/0/0—Chassis slot 1/Voice module slot 0/Voice interface 0
• 1/0/1—Chassis slot 1/Voice module slot 0/Voice interface 1
• 1/1/0—Chassis slot 1/Voice module slot 1/Voice interface 0
• 1/1/1—Chassis slot 1/Voice module slot 1/Voice interface 1
Serial 0/2
Compact
Flash slot
56482
SEE MANUAL BEFORE INSTALLATION
AL
CD
LP
RD
TD
SEE MANUAL BEFORE INSTALLATION
DSU
56K
AL
CD
LP
RD
TD
SEE MANUAL BEFORE INSTALLATION
DSU
56K
EN
V0
BANK 4
BANK 3
BANK 2
BANK 1
BANK 0
NM-HDV
VWIC
2MFT-E1
SEE
MANUAL
BEFORE
INSTALLATION
CTRLR E2
CTRLR E1
AL
LP
CD
Gigabit Ethernet 2/1
Fast Ethernet 2/35
Fast Ethernet 2/17
Gigabit Ethernet 2/0
Fast Ethernet 2/0
Fast Ethernet 2/18
Serial 0/1
Serial 0/0
TI 1/1
TI 1/0
Fast Ethernet 0/1
Fast Ethernet 0/0
BRI 0/0
1
2

Cisco 3745 Specifications

General

Form Factor	Rack-mountable
Network Module Slots	4
Advanced Integration Module Slots	2
Product Type	Router
Connectivity Technology	Wired
Data Transfer Rate	100 Mbps
Data Link Protocol	Ethernet, Fast Ethernet
Encryption Algorithm	DES, 3DES, AES
Authentication Method	RADIUS, TACACS+
Operating System	Cisco IOS
Power Supply	AC 120/230 V (50/60 Hz)
Operating Temperature	32 to 104 °F (0 to 40 °C)
Storage Temperature	-4 to 149 °F (-20 to 65 °C)
Interfaces	10/100 Ethernet
RAM	256 MB
Flash Memory	128 MB (max)
Dimensions	17.5 inches
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, Telnet, HTTP
Humidity	10% to 85% non-condensing
Processor	Motorola PowerPC
