Cisco 3800 Series User Manual

Removing SFP Modules
71
Installing SFP Modules in Cisco 3800 Series Routers
OL-5968-01
Removing SFP Modules
Follow these steps to remove an SFP from a Cisco 3800 series router:
Step 1 Disconnect all cables from the SFP.
Warning Because invisible laser radiation may be emitted from the aperture of the port when no fiber cable
is connected, avoid exposure to laser radiation and do not stare into open apertures.
Caution The latching mechanism used on many SFPs locks the SFP into place when cables are connected. Do
not pull on the cabling in an attempt to remove the SFP.
Step 2 Disconnect the SFP latch. See Figure 45.
Note SFP modules use various latch designs to secure the module in the SFP port. Latch designs are not linked
to SFP model or technology type. For information on the SFP technology type and model, see the label
on the side of the SFP.

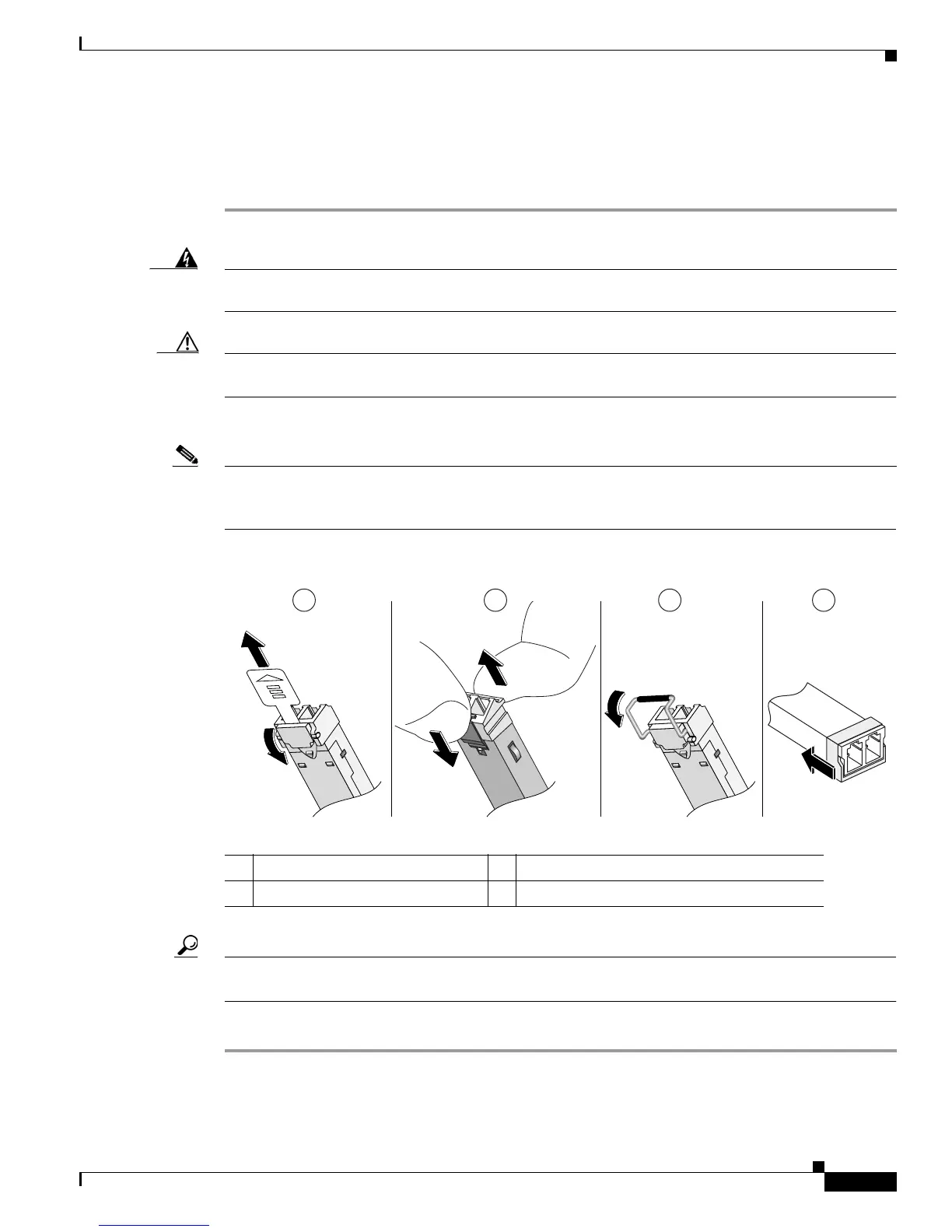

Figure 45 Disconnecting SFP Latch Mechanisms
Tip Use a pen, screwdriver, or other small straight tool to gently release a bale-clasp handle if you cannot
reach it with your fingers.
Step 3 Grasp the SFP on both sides and remove it from the router.
1 Sliding latch 3 Bale-clasp latch
2 Swing and slide latch 4 Plastic collar latch
117722
1 2 3 4
A
B

Cisco 3800 Series Specifications

General

Connectivity Technology	Wired
Models	Cisco 3825, Cisco 3845
Operating System	Cisco IOS
Routing Protocols	BGP, OSPF, EIGRP, RIP, IS-IS
Interfaces	Fast Ethernet, Gigabit Ethernet, Serial, ISDN BRI, Voice
WAN Interfaces	T1/E1, ISDN BRI, Serial
Security Features	Firewall, VPN, IPS, SSH
Voice Support	Yes
Network Management	SNMP, CLI
Product Type	Router
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network/Transport Protocol	TCP/IP
Features	Quality of Service (QoS)
RAM	256 MB
Flash Memory	64 MB
Product Series	Cisco 3800 Series
