Removing CompactFlash Memory Cards
74
Installing CompactFlash Memory Cards in Cisco 3800 Series Routers
OL-5976-01
Removing CompactFlash Memory Cards
Caution Disconnect the router from the network before removing a CompactFlash memory card.
To remove a CompactFlash memory card from the router, follow these steps (see Figure 46 and
Figure 47):
Step 1 Turn off power to the router to ensure that it does not attempt to read from or write to the CompactFlash
memory card.
Step 2 Press the ejector button next to the CompactFlash card. The ejector button moves outward so that it
projects from the panel.
Step 3 Press the ejector button again. This ejects the CompactFlash card partway out of its slot.
Step 4 Carefully pull the card out of the slot.
Step 5 Place the removed CompactFlash memory card on an antistatic surface or in a static shielding bag.
Step 6 Push the ejector button in until it clicks.
Caution To prevent damage to the ejector mechanism, the ejector button must remain fully seated when not being
used to eject a CompactFlash card.

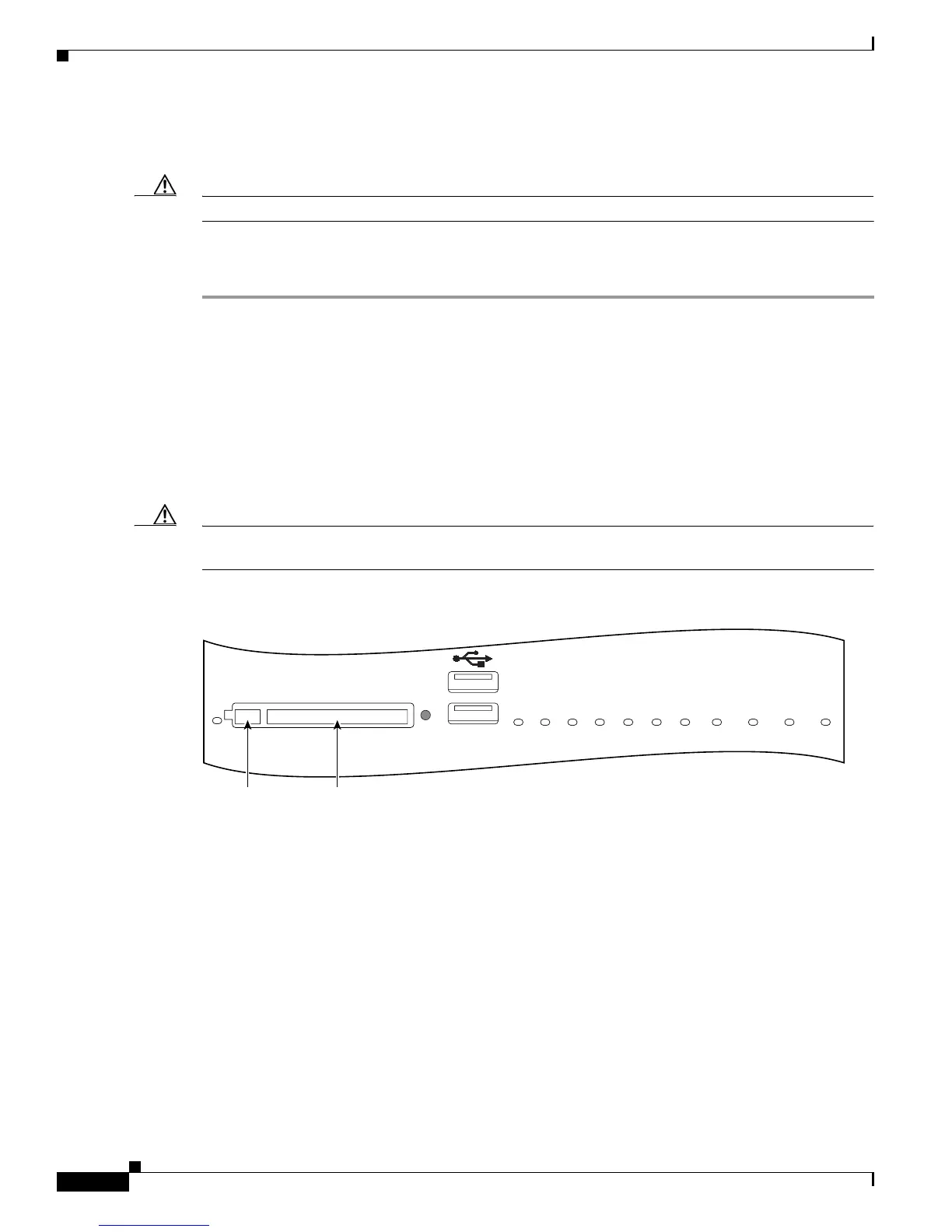

Figure 46 CompactFlash Slot Location in Cisco 3825 Router
117784
Do Not Remove During Network Operation
COMPACT FLASH
0
1
Ejector
button
Compact
Flash slot
SYS
CF
ACT
SYS
PWR RPS
AUX
PWR AIM0 AIM1 PVDM0 PVDM1 PVDM2 PVDM3
