Installing and Upgrading Internal Components in Cisco 3800 Series Routers
OL-5975-04

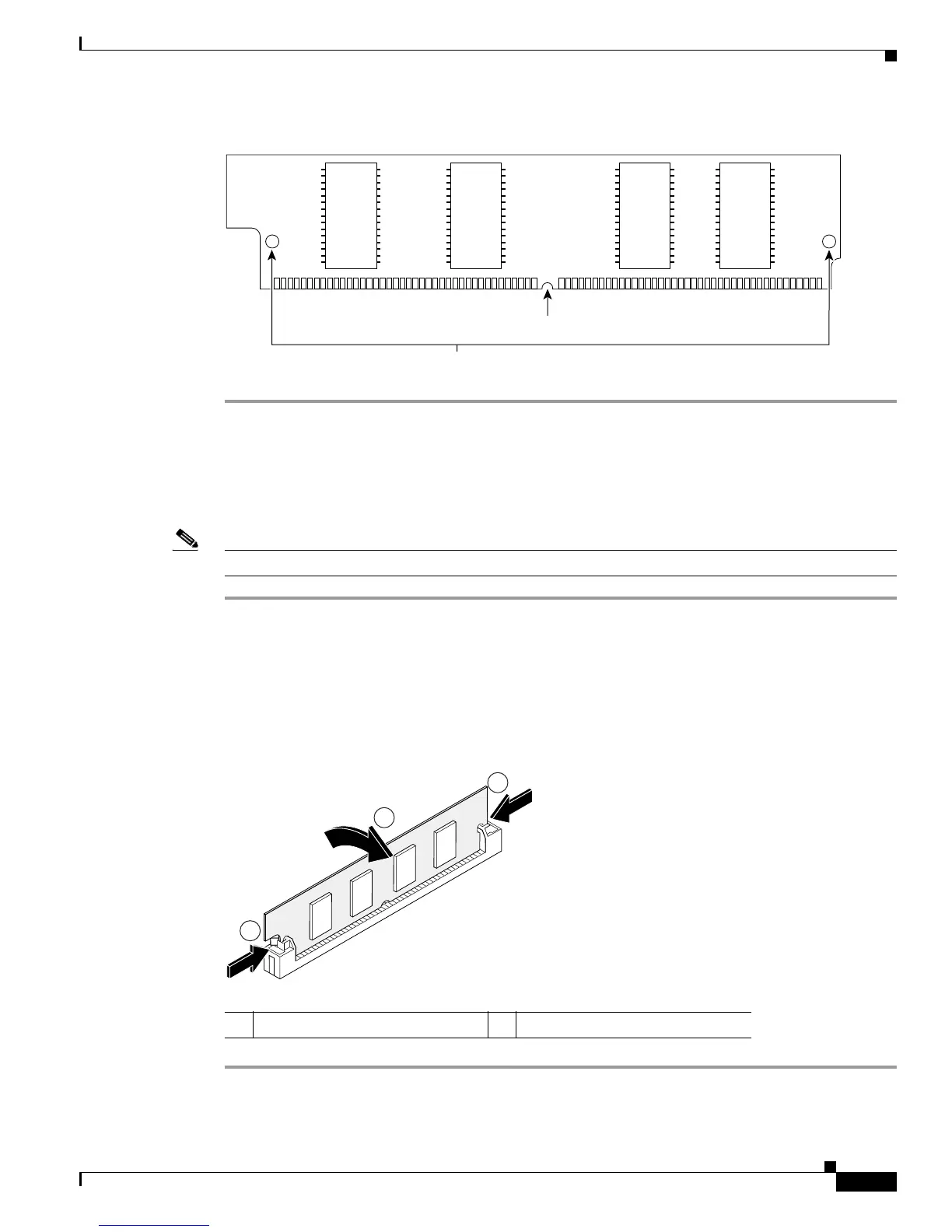

PVDM Installation and Removal
Figure 64 PVDM Polarization Notch
Installing a PVDM
To install a PVDM, follow these steps:
Note Install PVDMs beginning with the PVDM 0 connector.
Step 1 Locate the PVDM connector on the motherboard. See Figure 51 and Figure 52 for PVDM connector
locations.
Step 2 Orient the PVDM so that the polarization notch lines up with the key on the connector. See Figure 64.
Step 3 Hold the PVDM at an angle and insert it carefully into the PVDM connector. Tilt the PVDM up to the
vertical position so that the clips snap into place at both ends. See Figure 65.
Figure 65 Installing a PVDM
Polarization notch
103363
Alignment holes
1 Tilt PVDM up to vertical 2 Clips snap into place
103469
2
2
1

Cisco 3800 Series Specifications

General

Connectivity Technology	Wired
Models	Cisco 3825, Cisco 3845
Operating System	Cisco IOS
Routing Protocols	BGP, OSPF, EIGRP, RIP, IS-IS
Interfaces	Fast Ethernet, Gigabit Ethernet, Serial, ISDN BRI, Voice
WAN Interfaces	T1/E1, ISDN BRI, Serial
Security Features	Firewall, VPN, IPS, SSH
Voice Support	Yes
Network Management	SNMP, CLI
Product Type	Router
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network/Transport Protocol	TCP/IP
Features	Quality of Service (QoS)
RAM	256 MB
Flash Memory	64 MB
Product Series	Cisco 3800 Series
