Cisco 3800 Series User Manual

Rack-Mounting the Router
10
Installing Cisco 3800 Series Routers in an Equipment Rack
OL-5969-01
Rack-Mounting the Router
Mount the router in the equipment rack before making network and power connections.
Warning To prevent personal injury or damage to the chassis, never attempt to lift or tilt the chassis using the
handles on modules (such as power supplies, fans, or cards); these types of handles are not designed
to support the weight of the unit. Statement 1032
Caution To prevent damage to the router, never attempt to lift or tilt it by the plastic panel (bezel) on the front.
Always hold the router by the metal body.
Cisco 3800 series routers can be installed in 19-inch and 23-inch racks using the brackets supplied with
the router. These brackets are shown in Figure 1 and Figure 2. The left and right brackets are
interchangeable.
Note Mounting the routers in a 23-inch rack requires a bracket adapter from the rack manufacturer.

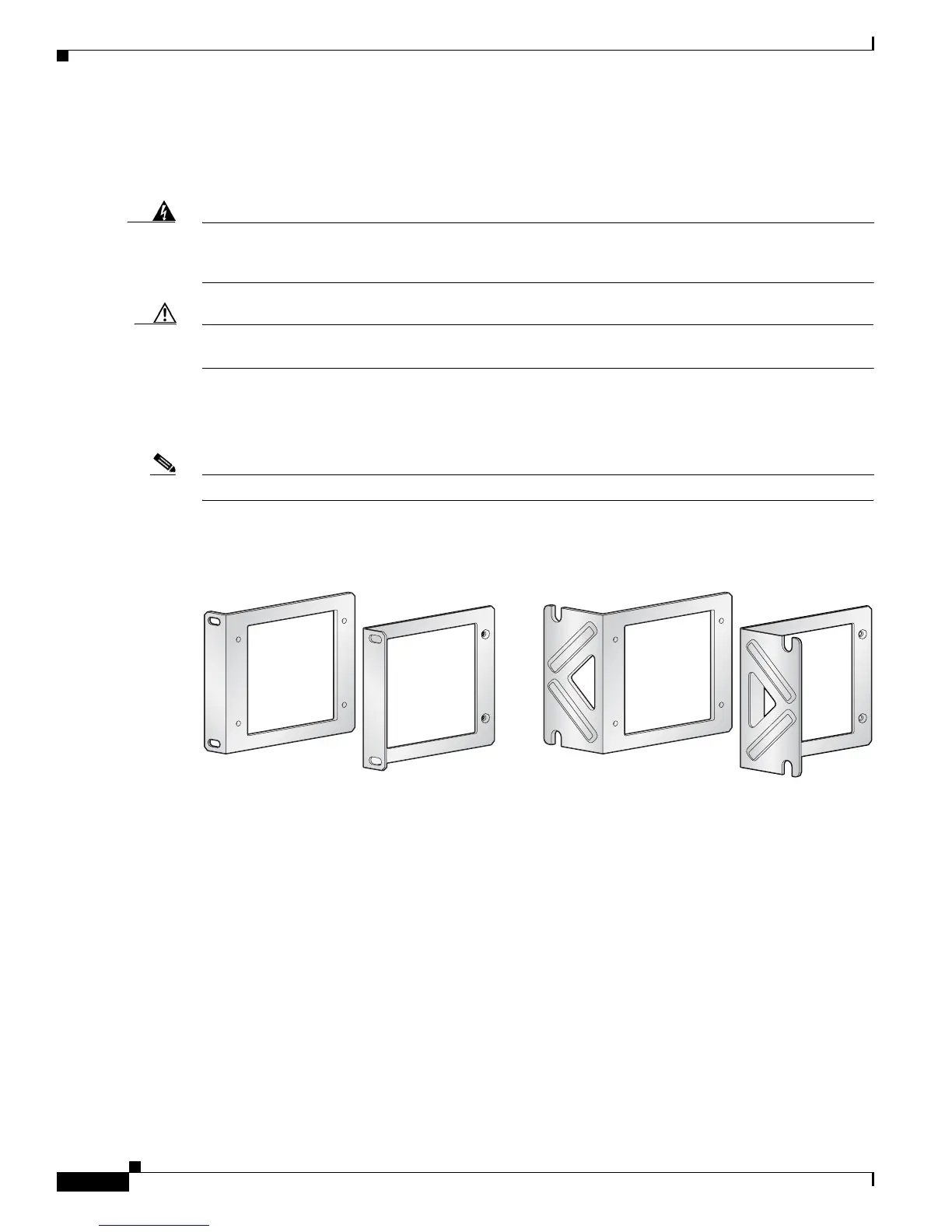

Figure 1 Rack-Mounting Brackets for Cisco 3825 Routers
111818
Bracket pair for 19-inch rack Bracket pair for 23-inch rack
