Power Connections
24
Connecting Cables to Cisco 3800 Series Routers
OL-5970-02

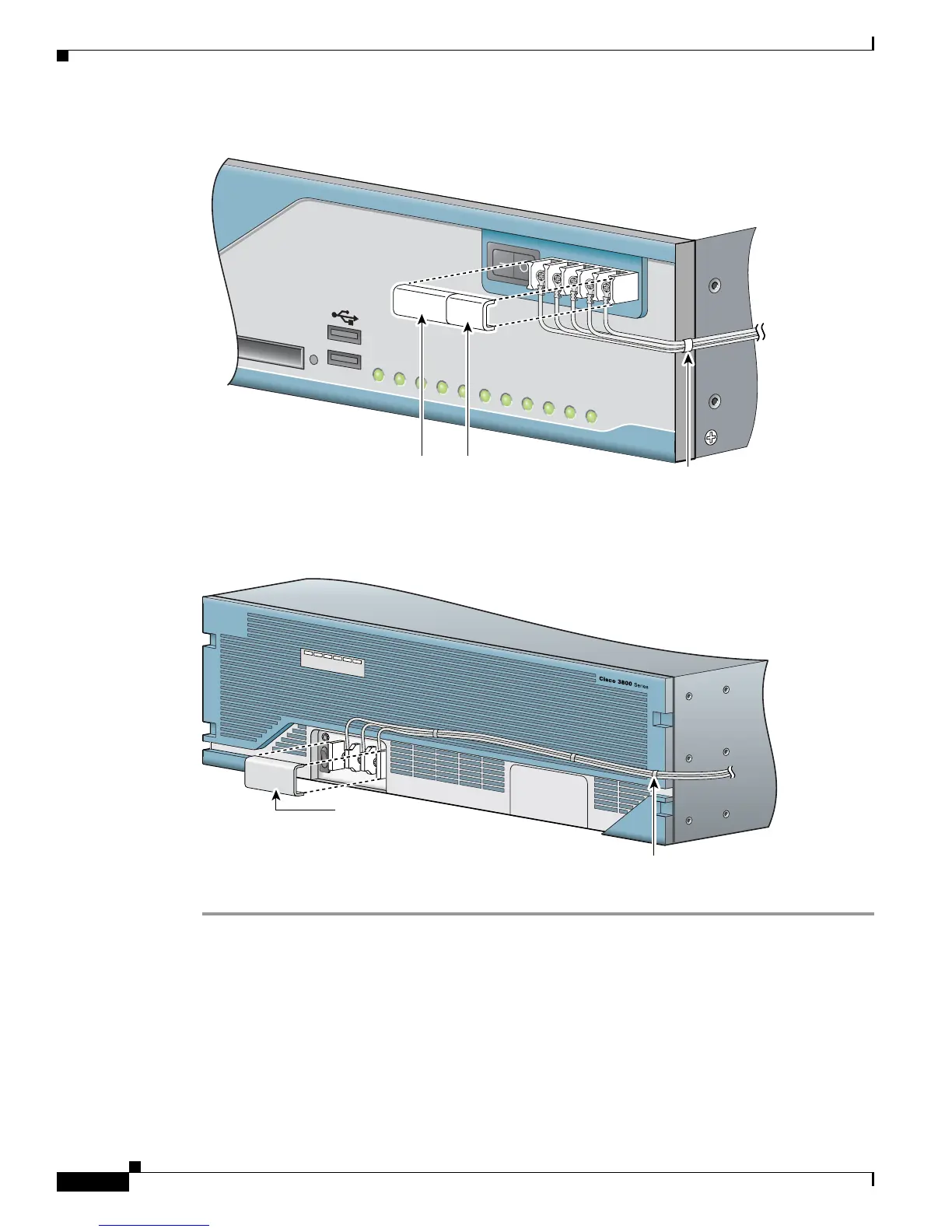

Figure 14 DC Wire Routing and Attachment for Cisco 3825 Router
Figure 15 DC Wire Routing and Attachment for Cisco 3845 Router
Dual DC Power Supply Configuration in Cisco 3825 Routers
You can connect a single DC power source to either the A input or the B input. If there are dual power
sources, connect one source to the A input and one source to the B input. Both sources must have the
same polarity (with respect to ground) and voltage (within 0.25 V). Do not connect –DC-grounded and
+DC-grounded dual sources to a Cisco 3825 router.
117120
0
1
COMPACT FLASH
SYS
ACT
SYS
PW
R
RPS
AUX
PW
R
AIM0
AIM1
PVD
M0
PVDM
1
PVDM
2
PVDM
3
Cable tie
Plastic covers
117046
Plastic cover
Cable tie
SYS
ACT
SYS
PWR1
AUX
PWR1
SYS
PWR2
AUX
PWR2
