Connecting WAN, LAN, and Voice Cables
28
Connecting Cables to Cisco 3800 Series Routers
OL-5970-02

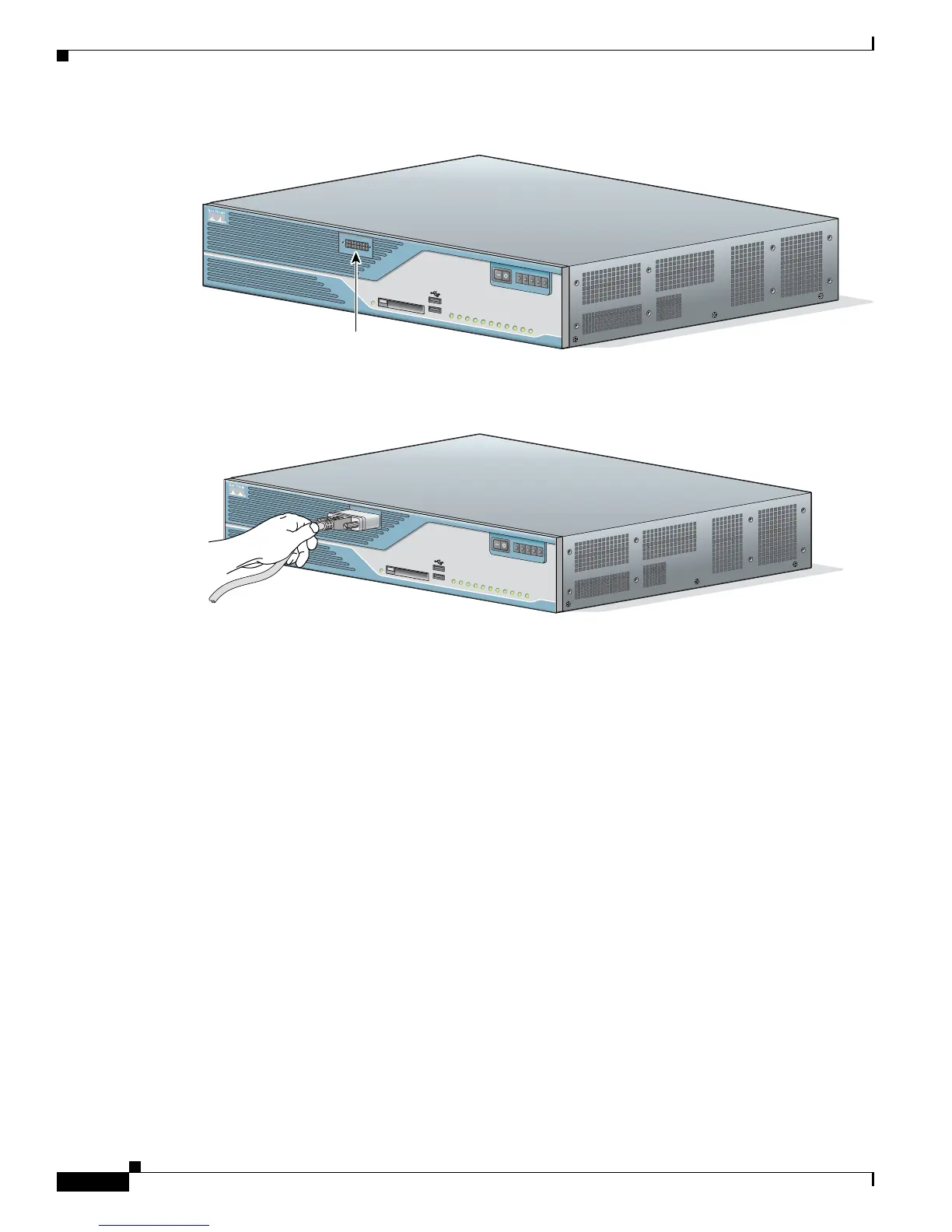

Figure 20 RPS Connector on Cisco 3825 Router
Figure 21 Connecting RPS to Cisco 3825 Router
Connecting WAN, LAN, and Voice Cables
This section describes how to connect WAN, LAN, and voice interface cables to your Cisco 3800 series
integrated services router.
One Ethernet cable is provided with the router for a Gigabit Ethernet connection. These ports use
Category 5, 5e, or 6 UTP 1000BASE-T cable. Additional cables and transceivers can be ordered from
Cisco. For ordering information, see the Cisco Product Catalog at
http://www.cisco.com/en/US/partner/products/index.html.
Connect each WAN, LAN, or voice cable to the appropriate connector on the router or on a network
module or interface card, following these precautions:
• Position the cables carefully, so that they do not put strain on the connectors.
• Organize cables in bundles so that they do not tangle.
• Inspect the cables to make sure that the routing and bend radiuses are satisfactory. Reposition cables
if necessary.
• Install cable ties in accordance with site requirements.
Cable connections to network modules and interface cards are described in detail in the following
documents:
• Cisco Network Modules Hardware Installation Guide
• Cisco Interface Cards Installation Guide
121273
0
1
COMPACT FLASH
S
Y
S
A
U
X
A
C
T
R
P
S
IP
P
W
R
A
IM
0
A
IM
1
P
V
D
M
0
P
V
D
M
1
P
V
D
M
2
P
V
D
M
3
R
RPS connector
121292
0
1
C
O
M
P
A
C
T
F
L
A
SH
R
SYS
ACT
SYS
PWR
RPS
AUX
PWR
AIM0
AIM1
PVDM0
PVDM1
PVDM2
PVDM3
