Cisco 3800 Series User Manual

Connecting a Console or Modem
30
Connecting Cables to Cisco 3800 Series Routers
OL-5970-02
This section describes how to connect a console to the console port and how to connect a modem to the
auxiliary port.
Connecting a Console to the Console Port
To connect a console (ASCII terminal or a PC running HyperTerminal or similar terminal emulation
software) to the console port on the router, follow these steps:
Step 1 Use the blue RJ-45-to-DB-9 console adapter cable to connect the router to a terminal. (See Figure 22
and Figure 23.)
For information about cable pinouts, see the Cisco Modular Access Router Cable Specifications
document.
Note On Cisco routers, the console port is color-coded blue.
Step 2 Configure your terminal or terminal emulation software for a data rate of 9600 bps, 8 data bits, no parity,
and 1 stop bit.
Note Because hardware flow control is not possible on the console port, Cisco does not recommend
connecting modems to this port. Always connect modems to the auxiliary port.

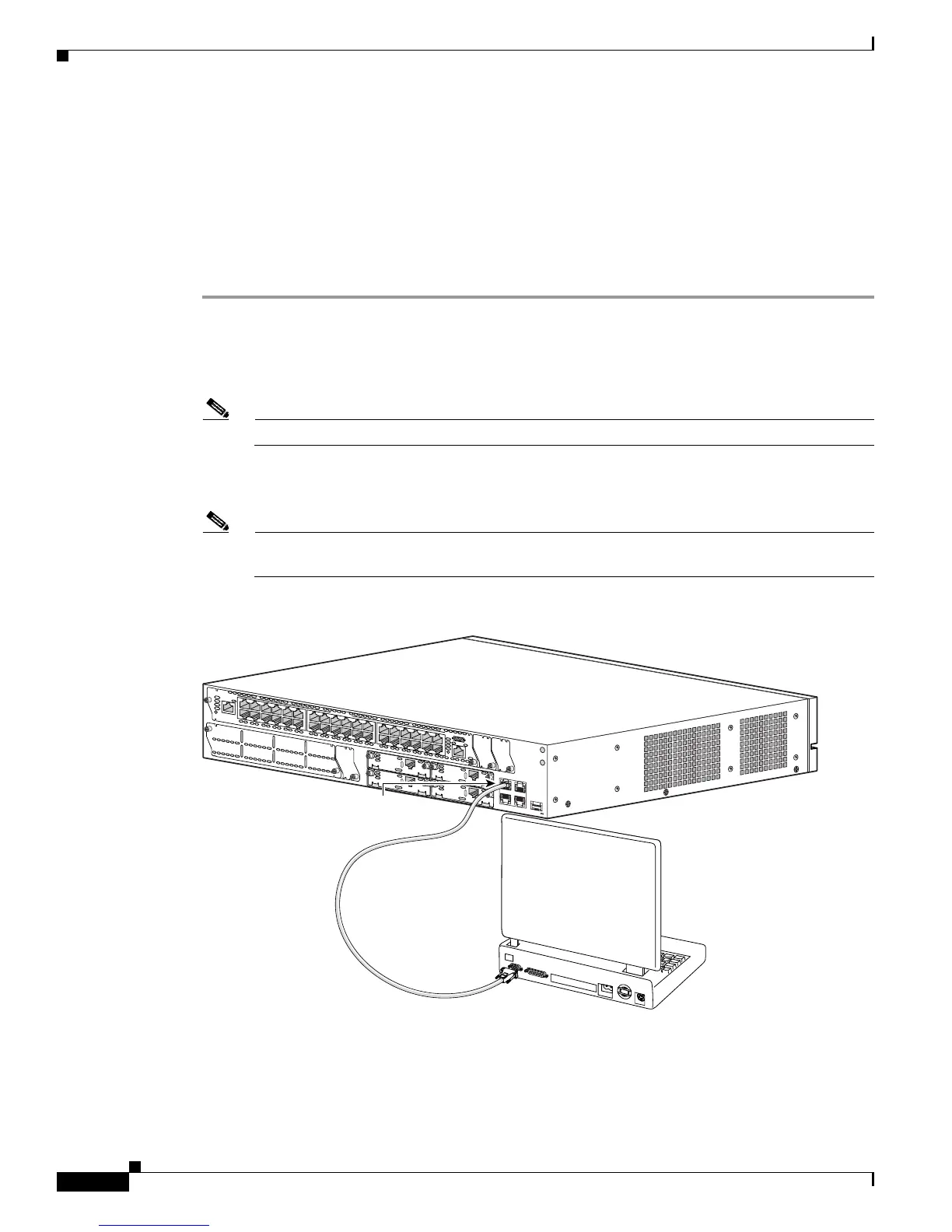

Figure 22 Connecting a Computer to the Cisco 3825 Router Console Port
117776
E
N
N
M
D
-
E
S
W
-
3
6
23x
5x
F
a
s
tE
th
e
rn
e
t P
o
rts
22x
4x
21x
3x
20x
2x
19x
1x
18x
0x
29x
11x
28x
10x
27x
9x
26x
8x 25x
17
24x
6x
35x
17x
34x
16x
33x
15x
32x
14x
31x
13x
30x
12x
E
x
t
P
w
r
-48V
0x
18x
GE0
10/100/
1000
Base-Tx
35x
10/100/1000
Base-Tx
GE1
17x
Console port
connector (RJ-45)
Laptop computer

Cisco 3800 Series Specifications

General

Connectivity Technology	Wired
Models	Cisco 3825, Cisco 3845
Operating System	Cisco IOS
Routing Protocols	BGP, OSPF, EIGRP, RIP, IS-IS
Interfaces	Fast Ethernet, Gigabit Ethernet, Serial, ISDN BRI, Voice
WAN Interfaces	T1/E1, ISDN BRI, Serial
Security Features	Firewall, VPN, IPS, SSH
Voice Support	Yes
Network Management	SNMP, CLI
Product Type	Router
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network/Transport Protocol	TCP/IP
Features	Quality of Service (QoS)
RAM	256 MB
Flash Memory	64 MB
Product Series	Cisco 3800 Series
