Cisco 3845 - Security Bundle Router Quick Start Guide

20

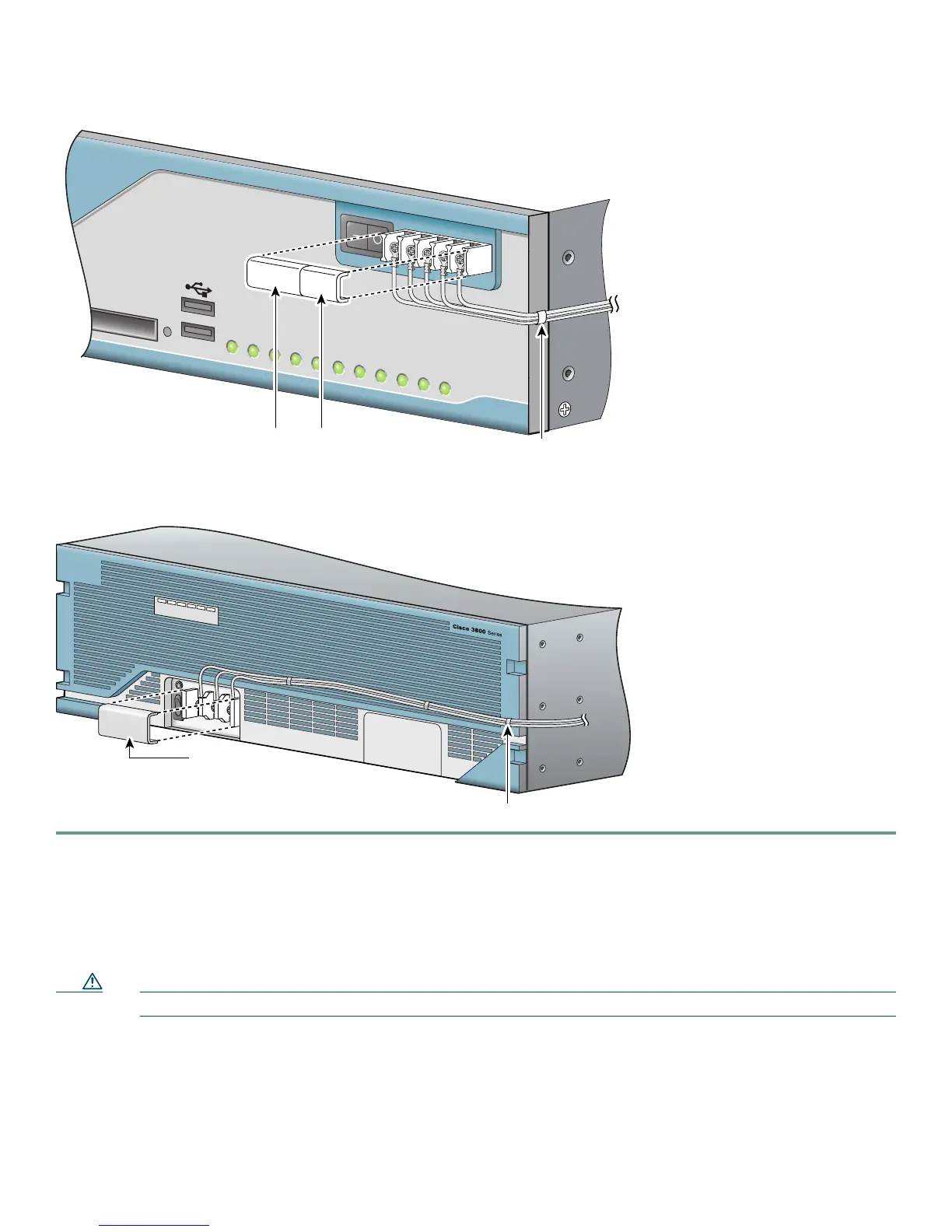

Figure 14 DC Wire Routing and Attachment for Cisco 3825 Routers
Figure 15 DC Wire Routing and Attachment for Cisco 3845 Routers
Approved Scenarios and Scenarios Not Approved for Dual DC Power Supply Configuration
You can connect a single DC power source to either the A input or the B input. If there are dual power sources, connect one
source to the A input and one source to the B input. Both sources must be the same polarity (with respect to ground) and voltage
(within 0.25 volts). Do not connect –DC grounded and +DC grounded dual sources to a Cisco 3825 series integrated router.
Caution Dual sources with opposite-polarity grounding damage equipment.
In Figure 16, either the positive source terminal or the negative source terminal is tied to ground.
117120
0
1
COMPACT FLASH
SYS
ACT
SYS
PW
R
RPS
AUX
PW
R
AIM0
AIM1
PVDM0
P
VDM
1
PVDM
2
PVDM
3
Cable tie
Plastic covers
117046
Plastic cover
Cable tie
SYS
ACT
SYS
PWR1
AUX
PWR1
SYS
PWR2
AUX
PWR2
