5-56
Cisco 2900 Series and 3900 Series Hardware Installation Guide
OL-18712-03
Chapter 5 Installing and Upgrading Internal Modules and FRUs
2911 Front to Back Air Flow Converter

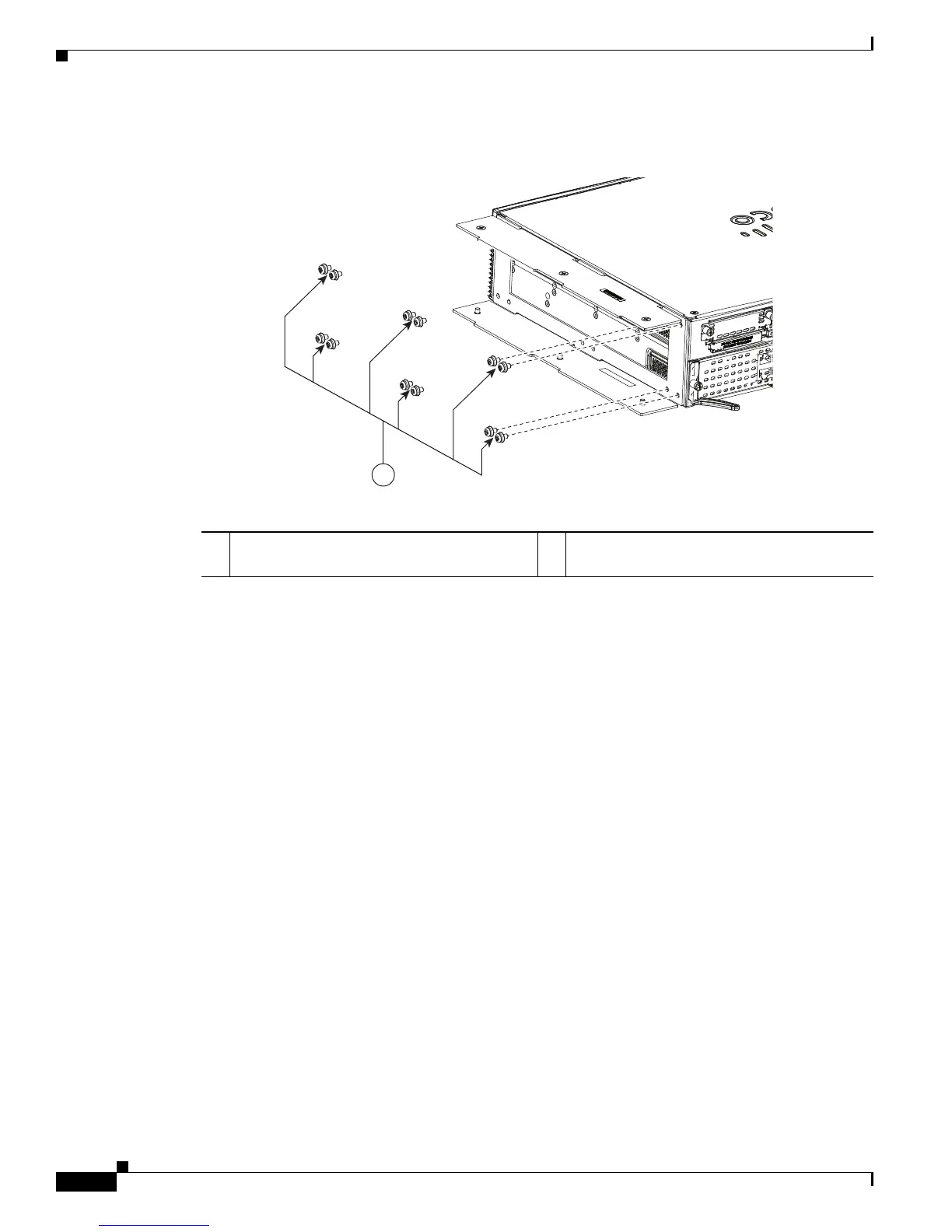

Figure 5-47 Assesmbling the Inner Piece of the 2911 Air Converter to the Chassis
Step 4 Slide the outer piece along with the rack-mount brackets attached, into the inner piece. See “Attaching
Rack-Mount Brackets to Cisco 2911, Cisco 2921, and Cisco 2951 Routers” section on page 3-6 for
details on attaching rack-mount brackets. Insert and tighten the flat head screws (three on top and three
at the bottom). See Figure 5-48.
1 8-32 x 0.31 inch (0.79 cm) long pan head
screws (48-1970-01)
