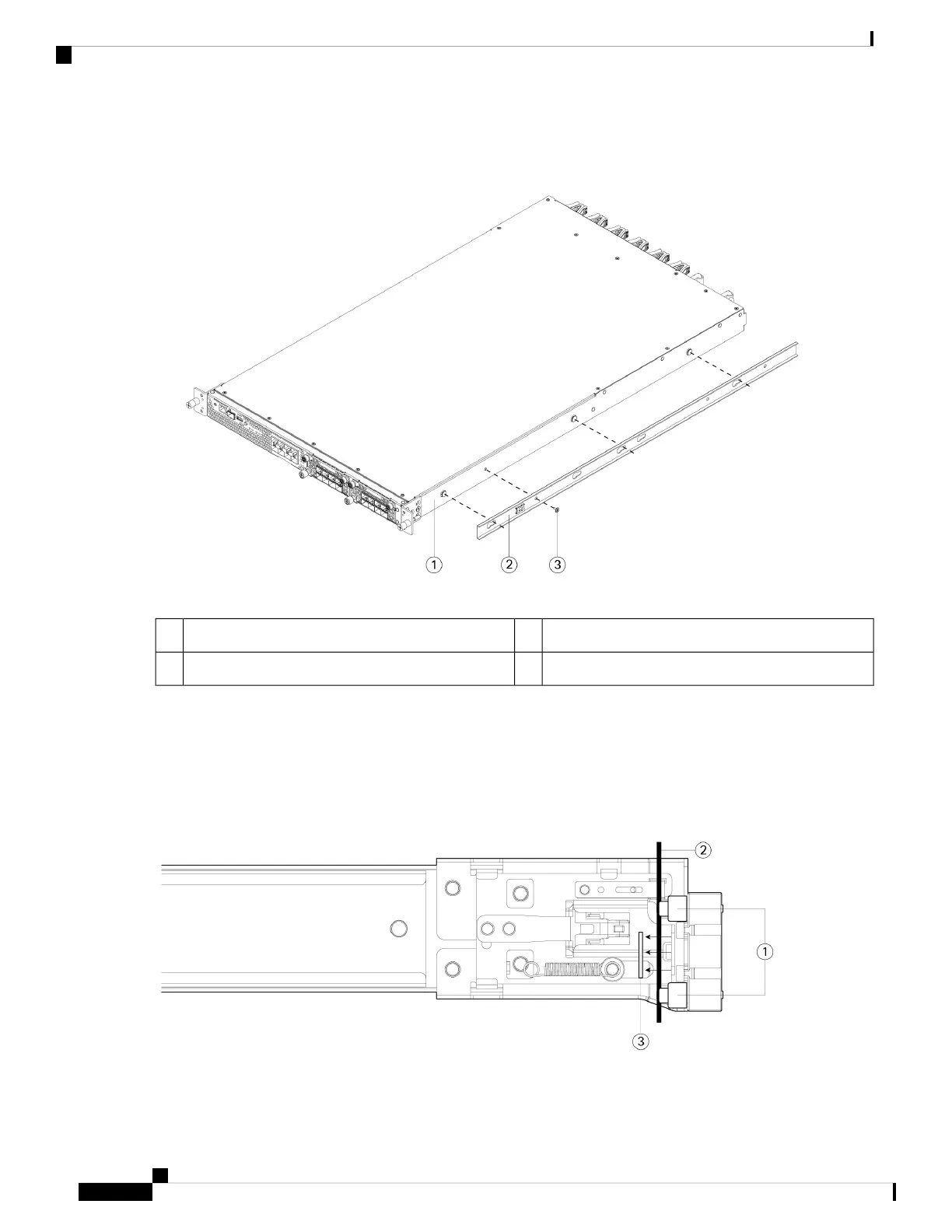

Figure 37: Attach the Inner Rail to the Side of the Chassis
Inner rail2Chassis side by front panel1
M3 x 6-mm screw (one per side)3
Step 3 Open the front securing plate on both slide-rail assemblies. The front end of the slide-rail assembly has a spring-loaded
securing plate that must be open before you can insert the mounting pegs into the rack-post holes.
On the outside of the assembly, push the green arrow button toward the rear to open the securing plate.
Figure 38: Front Securing Mechanism Inside the Front End
Cisco Firepower 4112, 4115, 4125, and 4145 Hardware Installation Guide
50
Rack-Mount and Ground the Chassis
Rack-Mount the Chassis

Cisco 4112 Specifications
