• #1 Phillips screwdriver
• The following items from the FIPS kit:
• One FIPS opacity shield
• Four 8-32 x 0.375-inch screws used to attach the FIPS opacity shield to the cable management
brackets
• 15 tamper-evident labels (TELs)
• The following items from the Firepower 4100 accessory kit:
• Two cable management brackets
• Four 8-32 x 0.375-inch screws used to attach the cable management brackets to the slide rail locking
brackets
Step 1 Copy the serial number on a label and attach it to the chassis where it can be retrieved easily for future use if needed.
To find the serial number, see Serial Number Location, on page 6.
Step 2 Pull the chassis out of the rack until the release latches catch.
Step 3 If you have not already done so, attach a slide rail locking bracket to each side of the chassis using the six 8-32 x
0.375-inch Phillips screws provided in the accessory kit.
You should have completed this step while preforming the procedure described in Rack-Mount the Chassis,
on page 47.
Note

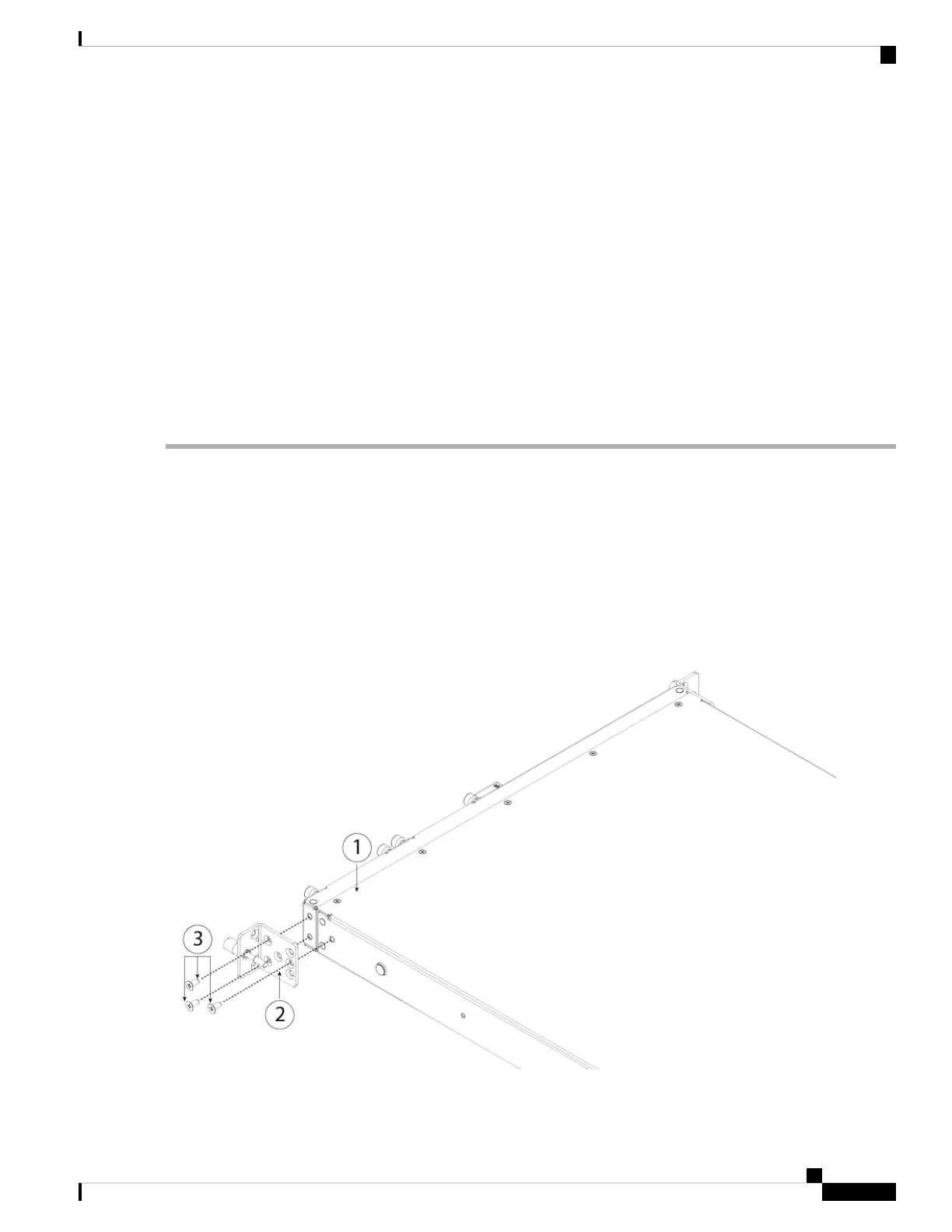

Figure 55: Attach the Slide Rail Locking Bracket to the Side of the Chassis
Cisco Firepower 4112, 4115, 4125, and 4145 Hardware Installation Guide
77
Installation, Maintenance, and Upgrade
Install the FIPS Opacity Shield
