Cisco Secure Router 520 Series Hardware Installation Guide

OL-12892-01

Chapter 4 Router Installation

Connecting the AC Adapter

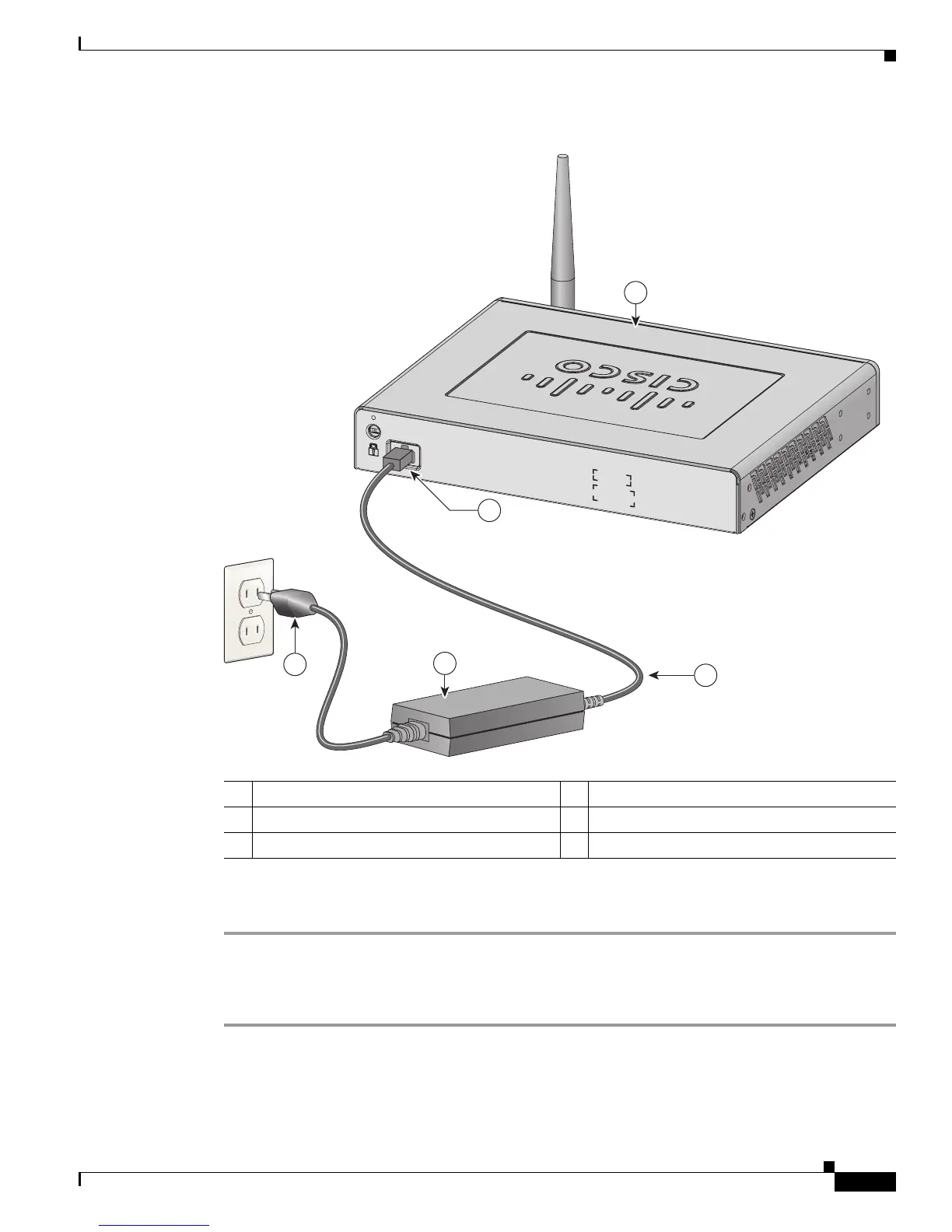

Figure 4-9 Connecting the AC Adapter

231504

1 Router 2 AC adapter input jack on the router

3 Power cord 4 AC adapter

5 Electrical outlet

To connect the AC adapter to the router and to an electrical outlet, follow these steps:

Step 1 Connect one end of the power supply cable into the input jack on the router.

Step 2 Connect the other end of the power supply cable to the AC adapter.

Step 3 Plug the power cord of the AC adapter into an electrical outlet.
