CHAPTER 4
Installing and Upgrading FRUs
Removing and Replacing the Chassis Cover, on page 29
Replacing the Power Supply, on page 30
Installing Drive Bays, on page 30
Upgrading the M.2 Storage Module, on page 31
Installing and Removing a DIMM, on page 32
Installing and Removing a NIM, on page 35
Removing and Replacing the Chassis Cover
These are the steps to remove the chassis cover:
1. Confirm the router is turned off and disconnected from the power supply or power supplies.
2. Place the chassis on a flat surface.
3. Remove the screws at top of the chassis cover.
4. Remove the screws at the sides of the device (See Figure 11).
5. Lift the chassis cover once you have removed all the screws.

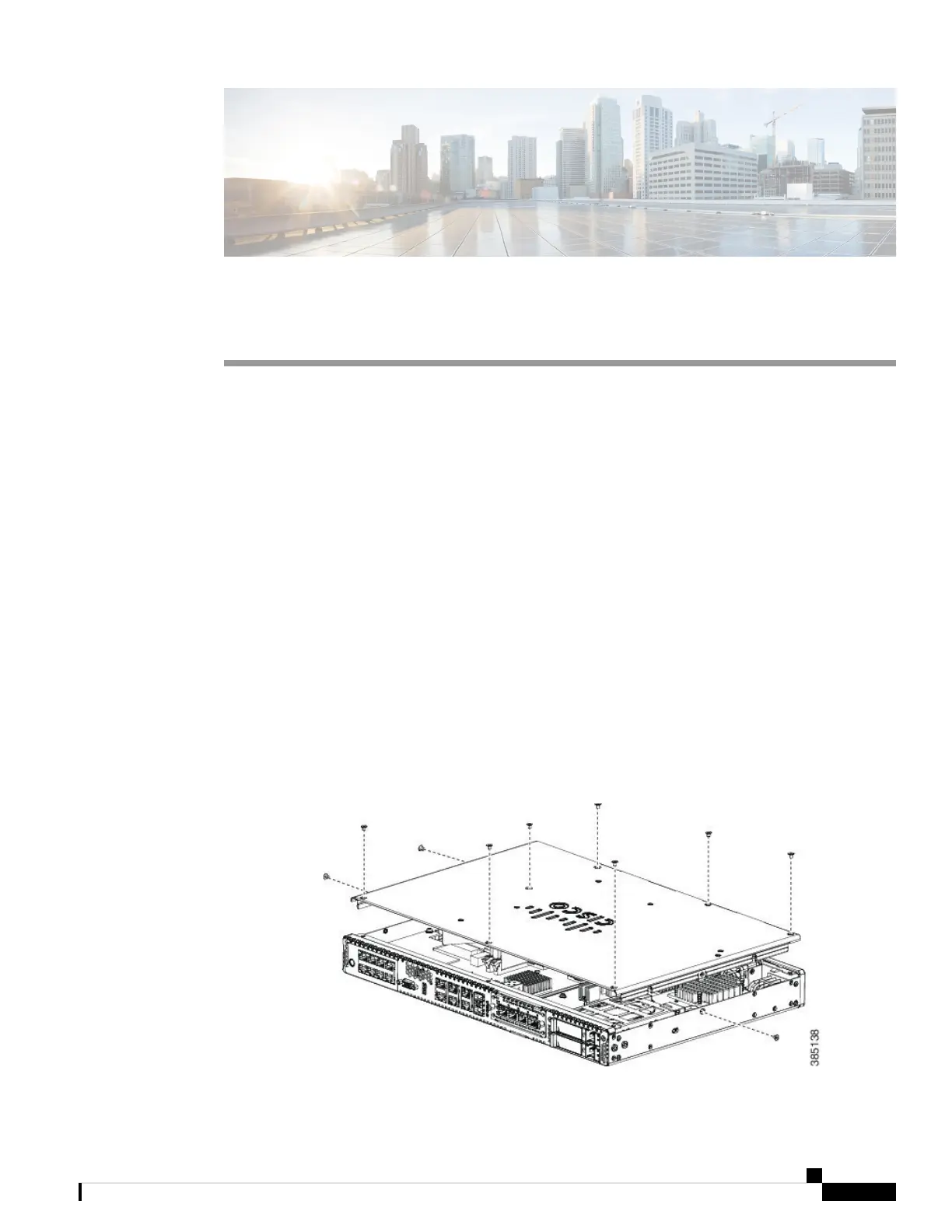

Figure 10: Removing the Chassis Cover
Cisco 5400 Enterprise Network Compute System Hardware Installation Guide
29
