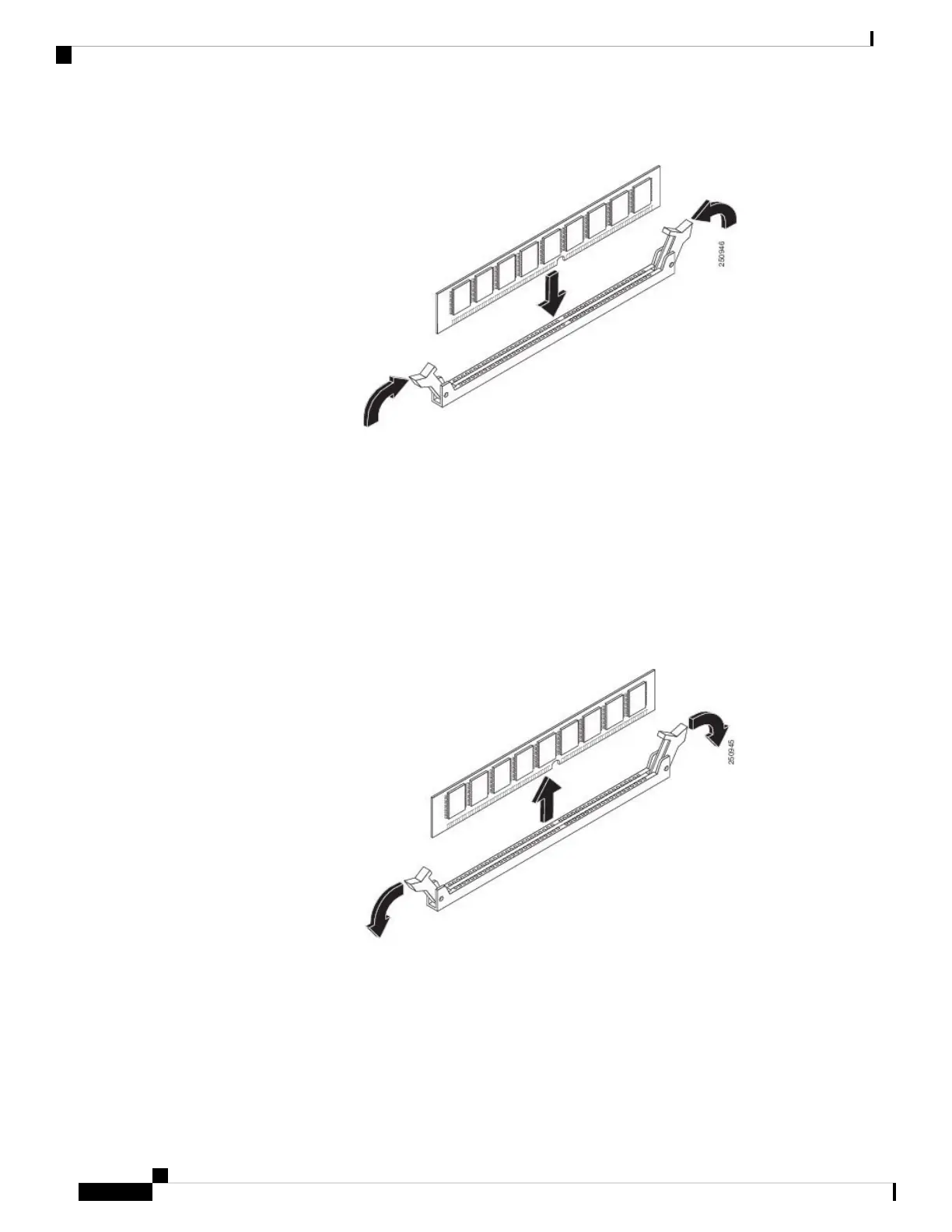

Figure 16: Inserting a DIMM
6. Replace the chassis cover.
These are the steps to remove a DIMM:
1. Remove the chassis cover.
2. Locate the DIMM module on the device. Refer to the Chassis - Internal View, on page 3 section to
identify and locate the DIMM module.
3. Pull the latches away from the DIMM at both ends to lift the DIMM slightly. Pull the DIMM out of the
socket.
Figure 17: Removing a DIMM
4. Place the DIMM in an antistatic bag to protect it from ESD damage.
5. Replace the chassis cover.
Cisco 5400 Enterprise Network Compute System Hardware Installation Guide
34
Installing and Upgrading FRUs
Installing and Removing a DIMM
