Chapter 8 Scenario: DMZ Configuration
Configuring the Adaptive Security Appliance for a DMZ Deployment
To configure the access control rule, perform the following steps:
Step 1 In the main ASDM window, do the following:
a. Click the Configuration tool.
b. In the Firewall pane, click Access Rules.
c. Click the green plus icon, then choose Add Access Rule.
The Add Access Rule dialog box appears.
Step 2 In the Add Access Rule dialog box, do the following:
a. From the Interface drop-down list, choose Outside.
b. Click the Permit Action radio button.
c. In the Source field, enter Any.
d. In the Destination field, enter the public IP address of the web server
(209.165.200.225).
e. In the Service field, enter TCP/HTTP.

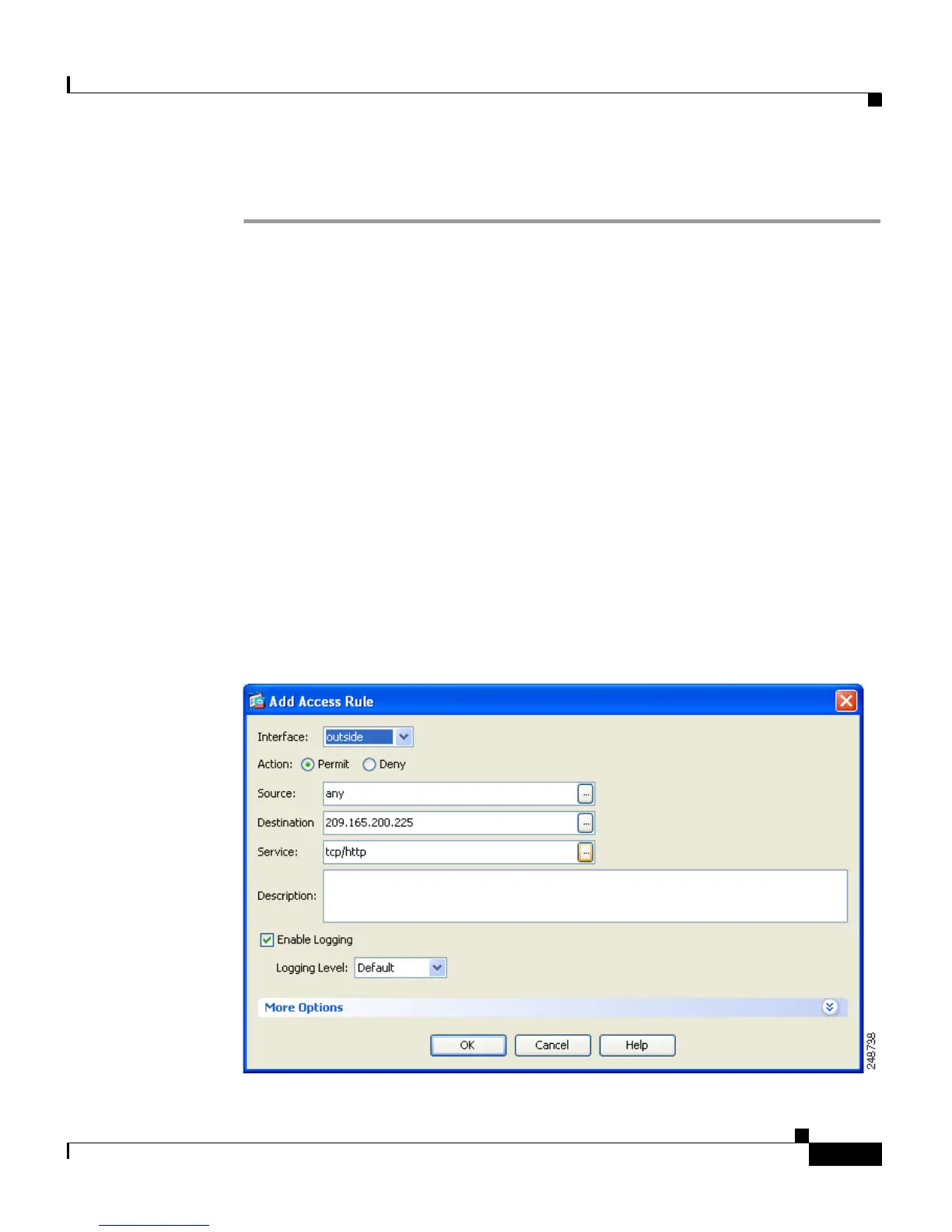

At this point, the entries in the Add Access Rule dialog box should be similar to
the following:
