Chapter 3 Installing the ASA 5550
Installing the Chassis
3-4
Cisco ASA 5500 Series Getting Started Guide
78-19186-01
Rack-Mounting the Chassis
To rack-mount the chassis, perform the following steps:
Note You can use the mounting brackets to mount the chassis to the front or the back
of the rack, with the front panel or the rear panel of the chassis facing outward.
Step 1 Attach the rack-mount brackets to the chassis using the supplied screws. Attach
the brackets to the holes as shown in
Figure 3-2. After the brackets are secured to
the chassis, you can rack-mount it.

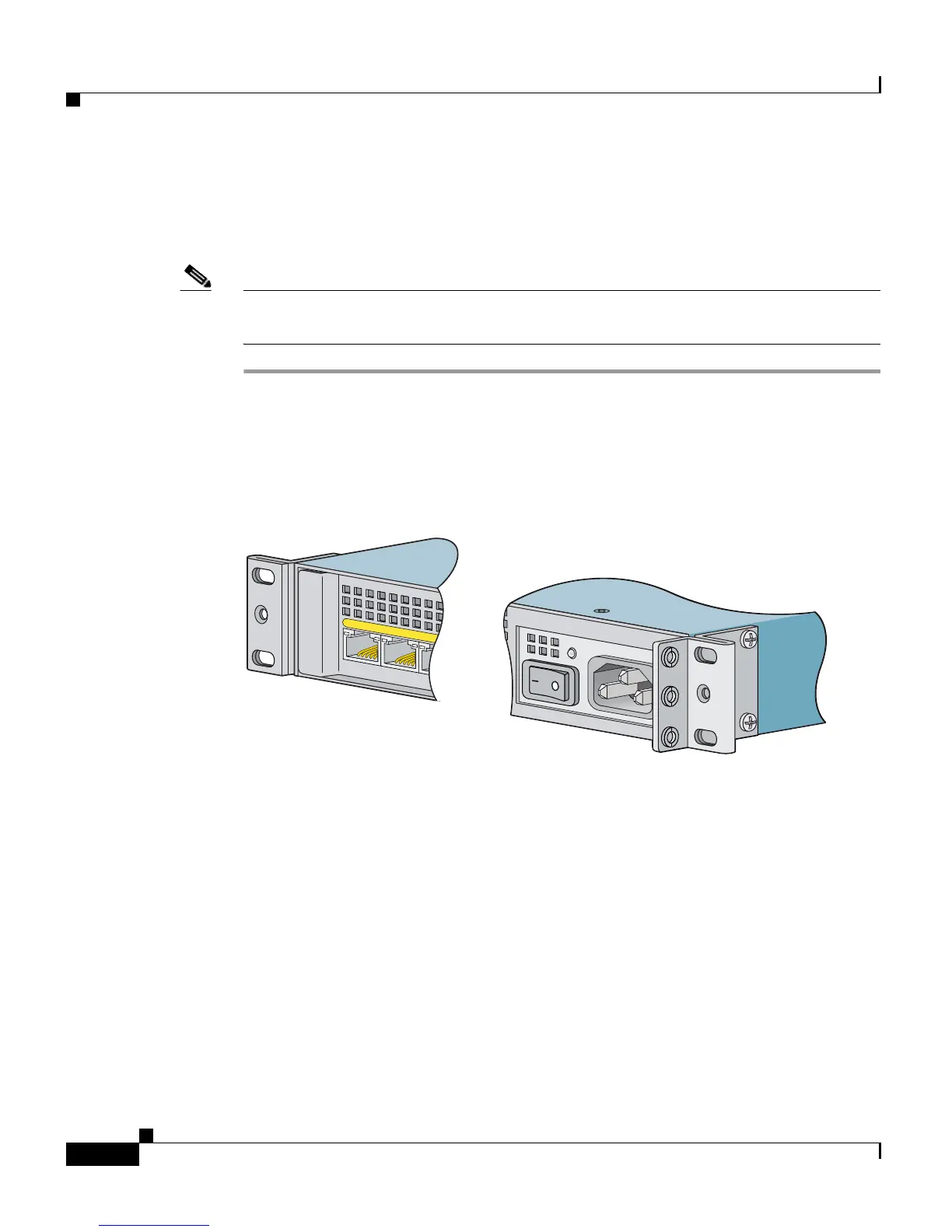

Figure 3-2 Installing the Right and Left Brackets
Step 2 Attach the chassis to the rack using the supplied screws, as shown in Figure 3-3.
