Chapter 3 Installing the ASA 5550
Installing SFP Modules
3-8
Cisco ASA 5500 Series Getting Started Guide
78-19186-01
Installing an SFP Module
To install an SFP module in a fiber port in Slot 1, perform the following steps:
Step 1 Line up the SFP module with the port and slide the SFP module into the port slot
until it locks into position as shown in
Figure 3-4.

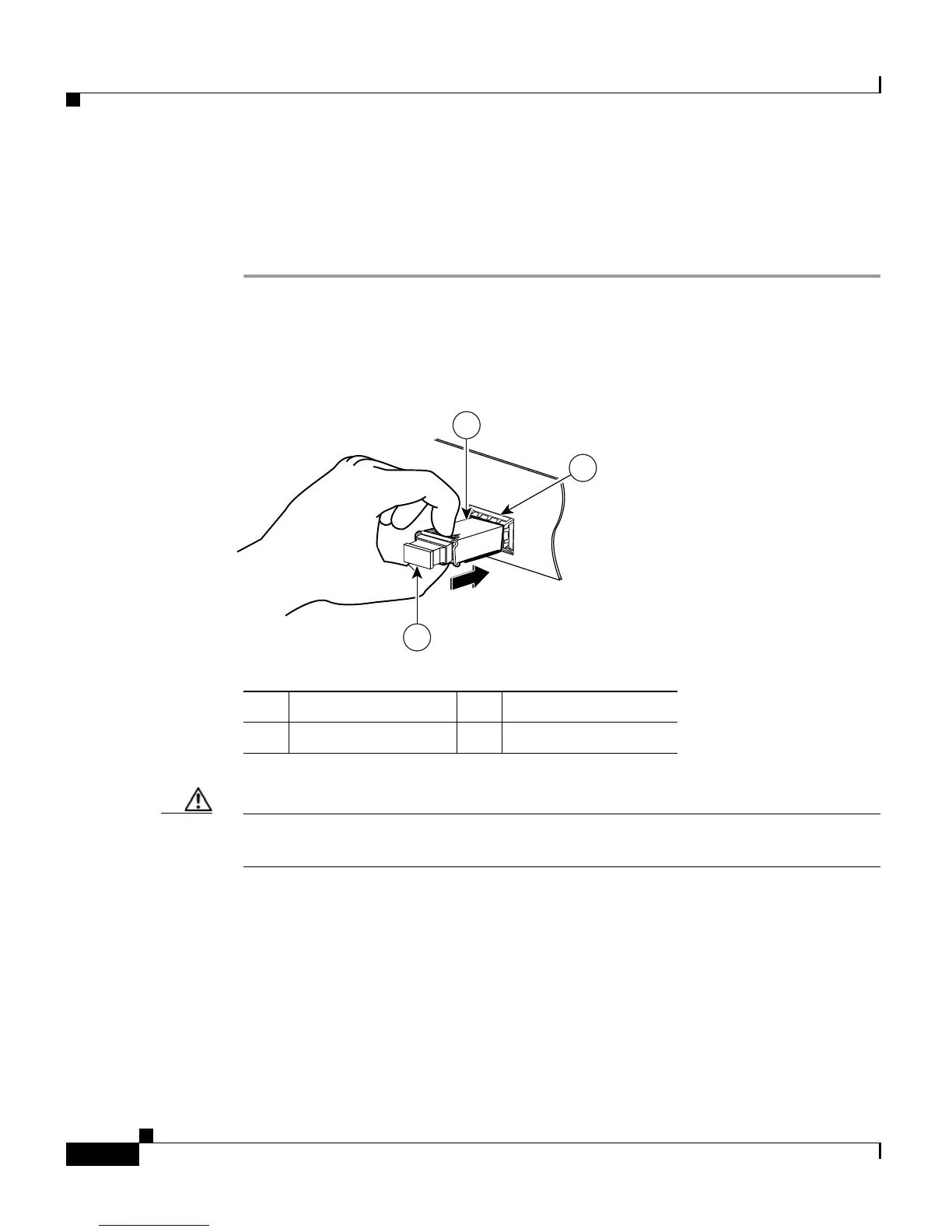

Figure 3-4 Installing an SFP Module
Caution Do not remove the port plugs from the SFP module until you are ready to connect
the cables.
Step 2 Remove the port plug; then connect the network cable to the SFP module.
Step 3 Connect the other end of the cable to your network. For more information on
connecting the cables, see
Chapter 3, “Connecting Interface Cables.”
1 Port plug 3 SFP module
2 Port slot
132985
1
3
2
