Cisco 5510 - ASA SSL / IPsec VPN Edition Getting Started Guide

3-15
Cisco ASA 5500 Series Getting Started Guide
78-19186-01
Chapter 3 Installing the ASA 5550
Connecting Interface Cables
c. Connect the RJ-45 connector to the Console port of the adaptive security
appliance as shown in
Figure 3-10.
d. Connect the DB-9 connector to the console port on your computer.

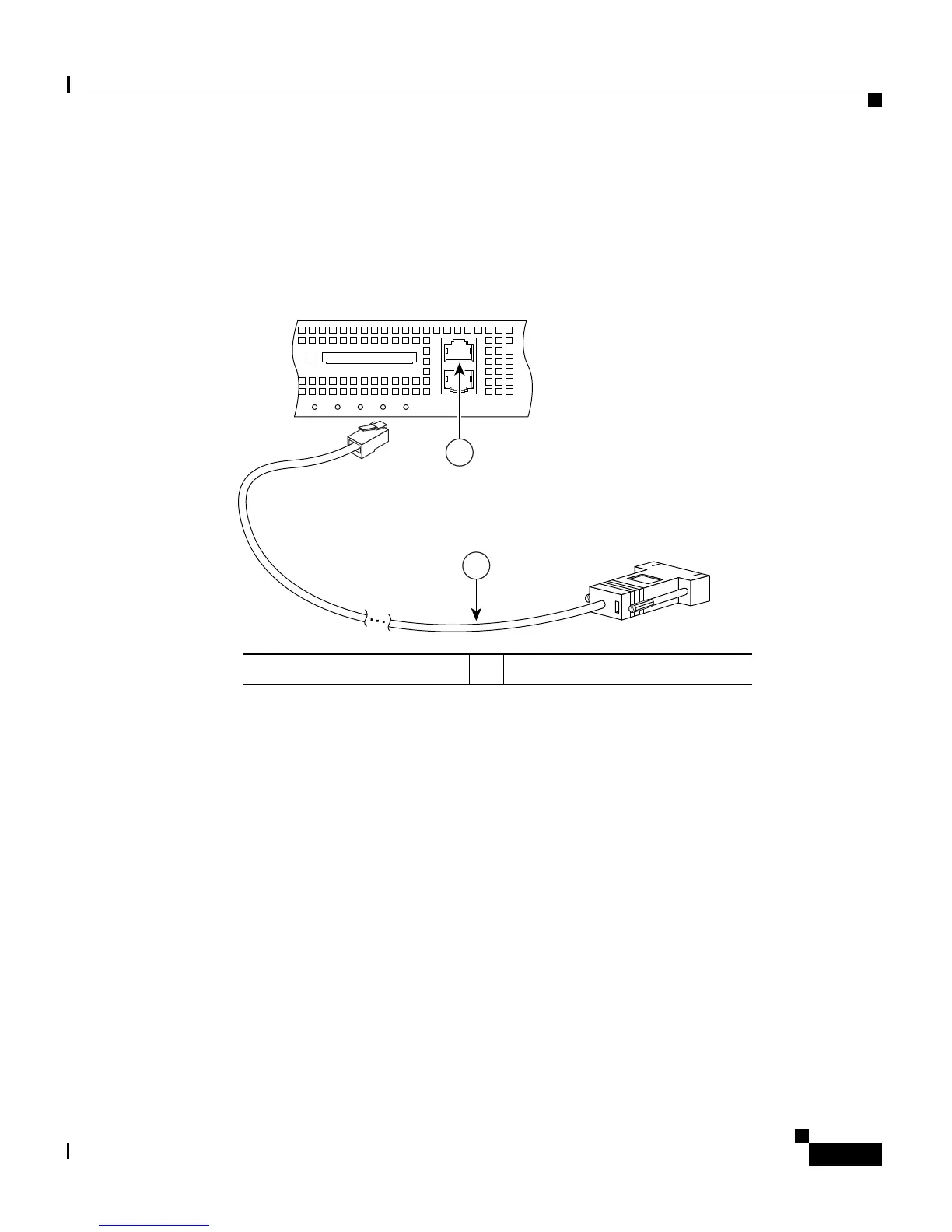

Figure 3-10 Connecting the Console Cable
Step 4 Connect to the Auxiliary port (labeled AUX).
a. Locate the serial console cable, which has an RJ-45 connector on one end and
a DB-9 connector on the other end for the serial port on your computer.
b. Connect the RJ-45 connector of the cable to the Auxiliary port (labeled AUX)
on the adaptive security appliance, as shown in
Figure 3-11.
c. Connect the other end of the cable, the DB-9 connector, to the serial port on
your computer.
1 RJ-45 Console port 2 RJ-45 to DB-9 console cable
126982
FLASH
CONSOLE
AUX
POWER
STATUS
FLASH
VPN
ACTIVE
2
1
