5-7
Cisco ASA 5500 Series Getting Started Guide
78-19186-01
Chapter 5 Installing Optional SSMs
Cisco 4GE SSM

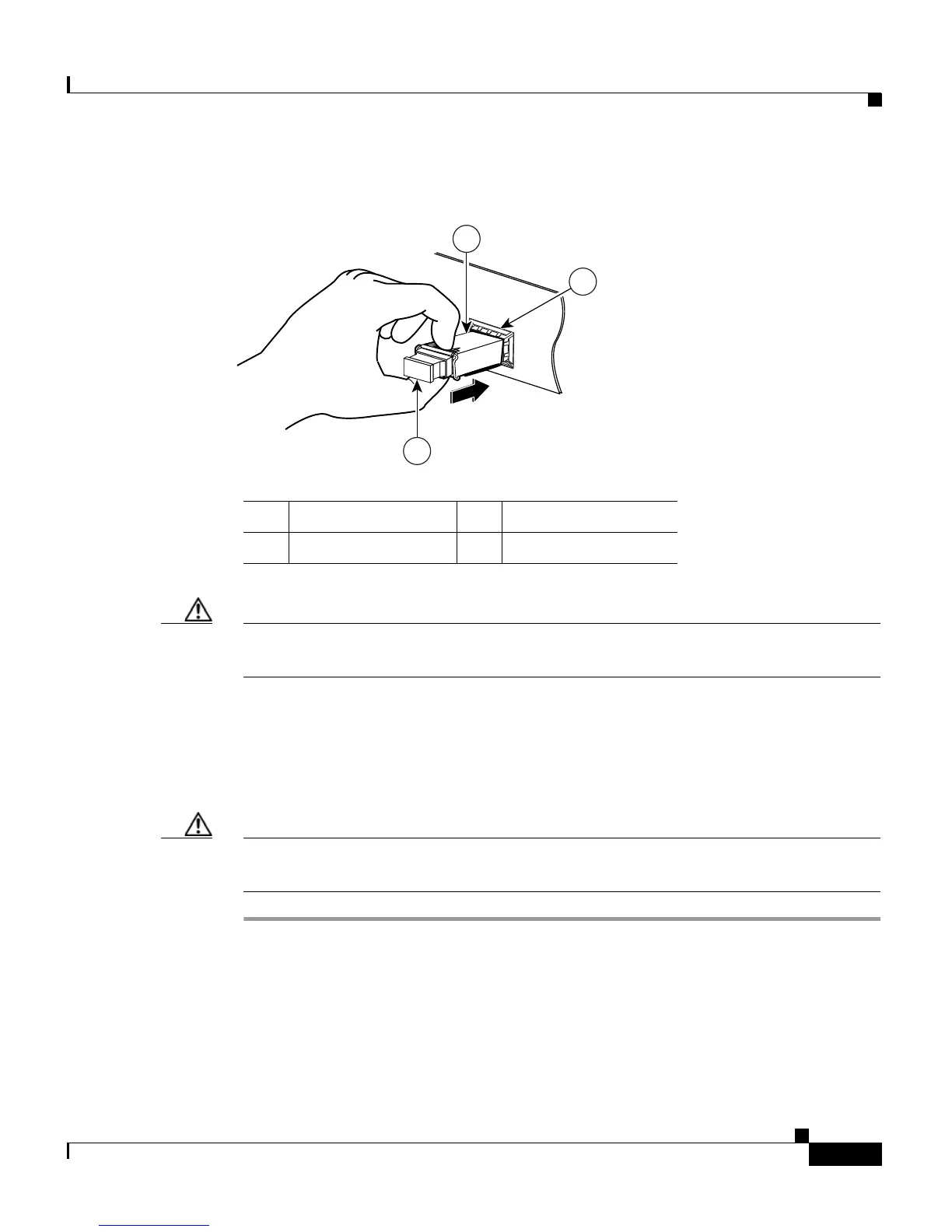

Figure 5-4 Installing an SFP Module
Caution Do not remove the optical port plugs from the SFP until you are ready to connect
the cables.
Step 2 Remove the Optical port plug; then connect the network cable to the SFP module.
Step 3 Connect the other end of the cable to your network. For more information on
connecting the cables, see
Chapter 6, “Connecting Interface Cables on the ASA
5500, ASA 5510, ASA 5520, and ASA 5540 Platforms.”
Caution The latching mechanism used on many SFPs locks them into place when cables
are connected. Do not pull on the cabling in an attempt to remove the SFP.
1 Optical port plug 3 SFP module
2 SFP port slot
