Cisco 5510 - ASA SSL / IPsec VPN Edition Getting Started Guide

Chapter 6 Connecting Interface Cables on the ASA 5500, ASA 5510, ASA 5520, and ASA 5540 Platforms
Connecting to a 4GE SSM
6-8
Cisco ASA 5500 Series Getting Started Guide
78-19186-01
Step 2 Connect to fiber Ethernet ports to be used for network connections. For each fiber
port you want to use, perform the following steps:
a. Install the SFP module:
– Insert and slide the SFP module into the fiber port until you hear a click.
The click indicates that the SFP module is locked into the port.
– Remove the port plug from the installed SFP as shown in Figure 6-5.

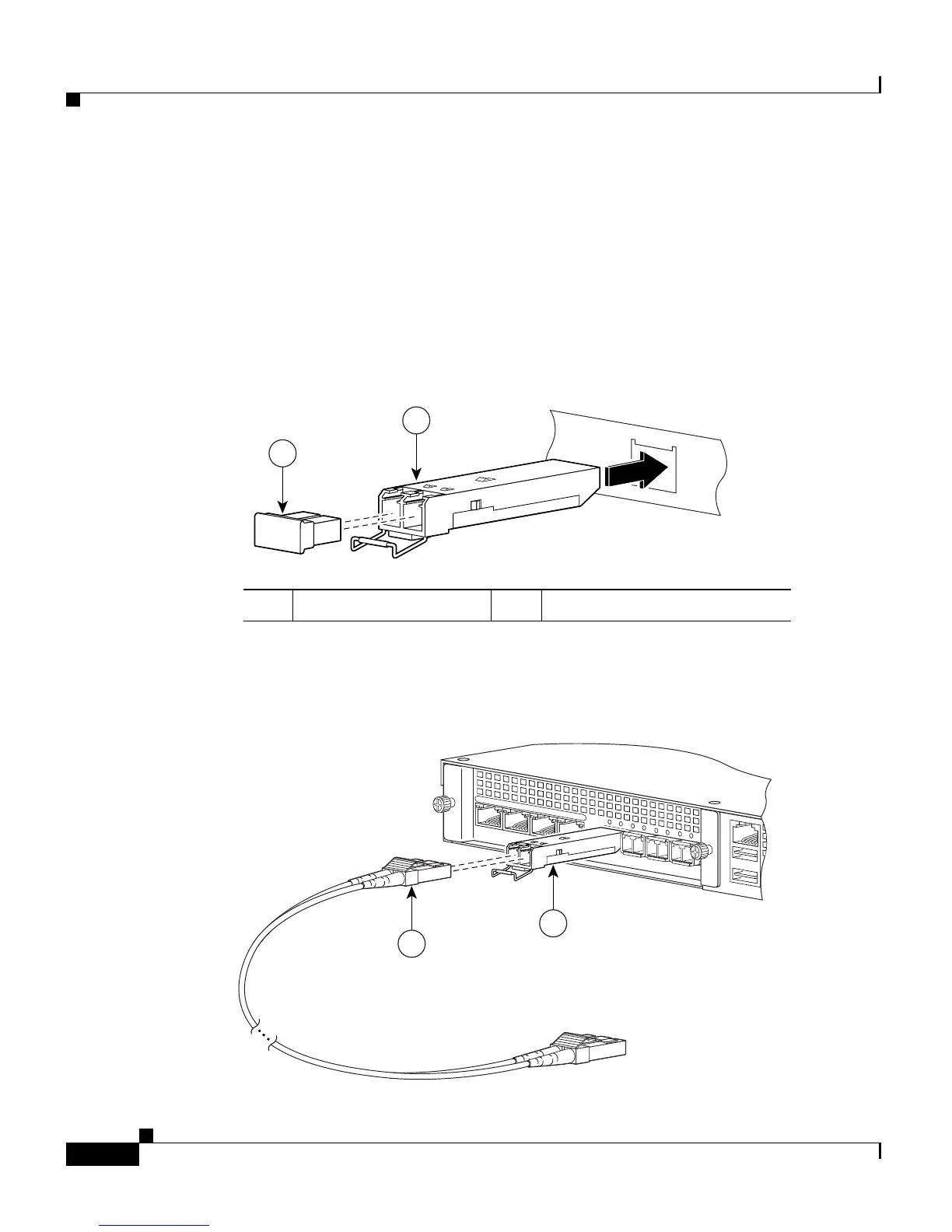

Figure 6-5 Removing the Fiber Port Plug
– Connect the LC connector to the SFP module as shown in Figure 6-6.
Figure 6-6 Connecting the LC Connector
1 Port plug 2 SFP module
143146
1
S
T
A
T
U
S
2
USB1
MGMT
USB2
MGMT
USB2
USB1
Cisco SSM-4GE
LN
K
SP
D
0
123
PO
W
ER
S
T
A
T
U
S
1
143148
2
