Cisco 6921

E-1
Cisco Unified IP Phone 6921, 6941, 6945, and 6961 Administration Guide for Cisco Unified Communications Manager 8.6 (SCCP and SIP)
OL-24567-01
APPENDIX
E
Installing the Wall Mount Kit for the
Cisco Unified IP Phone 6921, 6941, 6945, and 6961
This appendix contains information on installing the wall mount for use with the Cisco Unified
IP Phone 6921, 6941, 6945, and 6961.

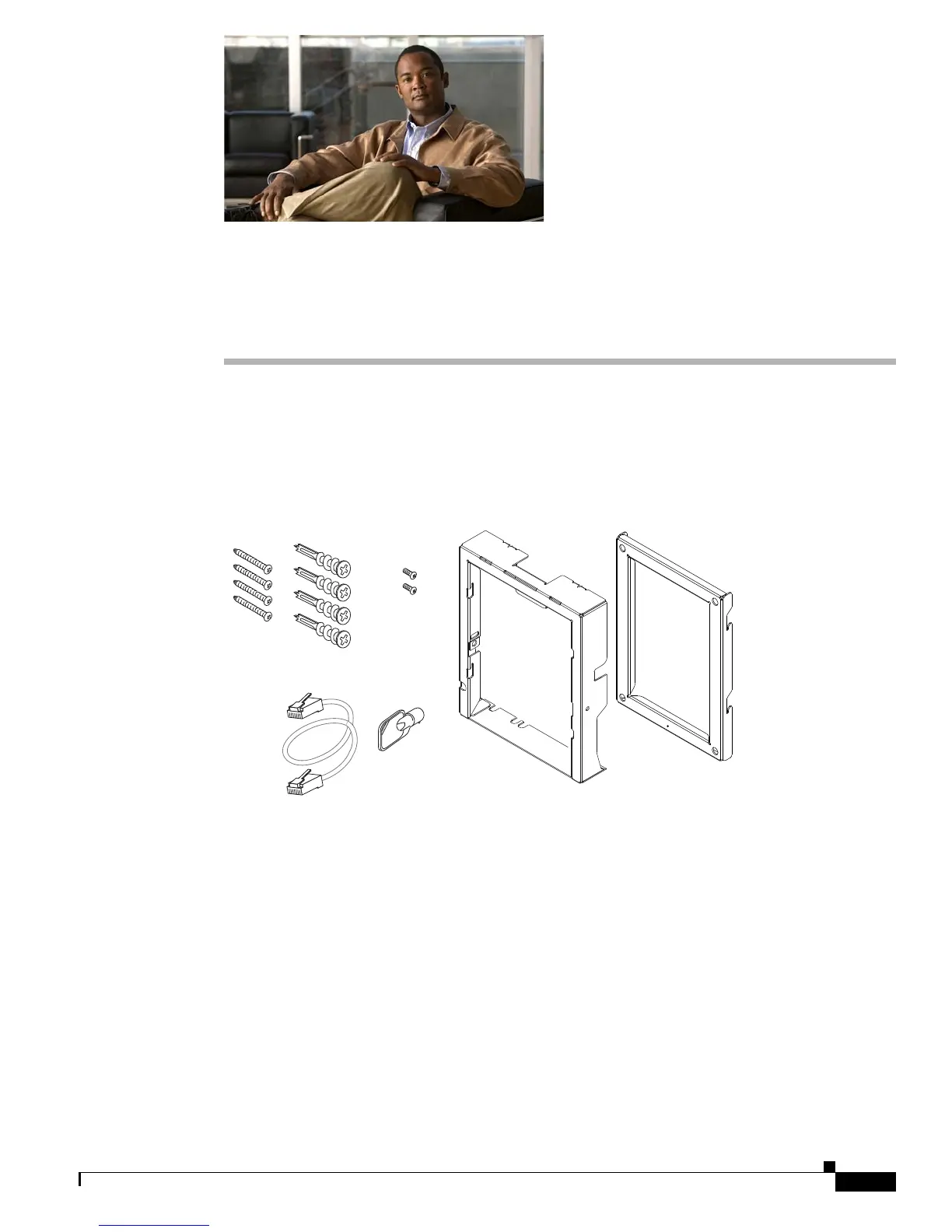

Figure E-1 Wall Mount Kit
The package includes these items:
• One phone bracket
• One wall bracket
• Four 10-12x1 inch Phillips-head screws with 4 anchors
• Two 4-40x1/4 inch machine screws
• One 6-inch Ethernet cable
• One key if the bracket includes the optional lock
Screws
(4)
Anchors
(4)
Machine
screws
(2)
Ethernet
cable
Lock-down
key
Wall bracketPhone bracket
274935
