Installing the Bracket

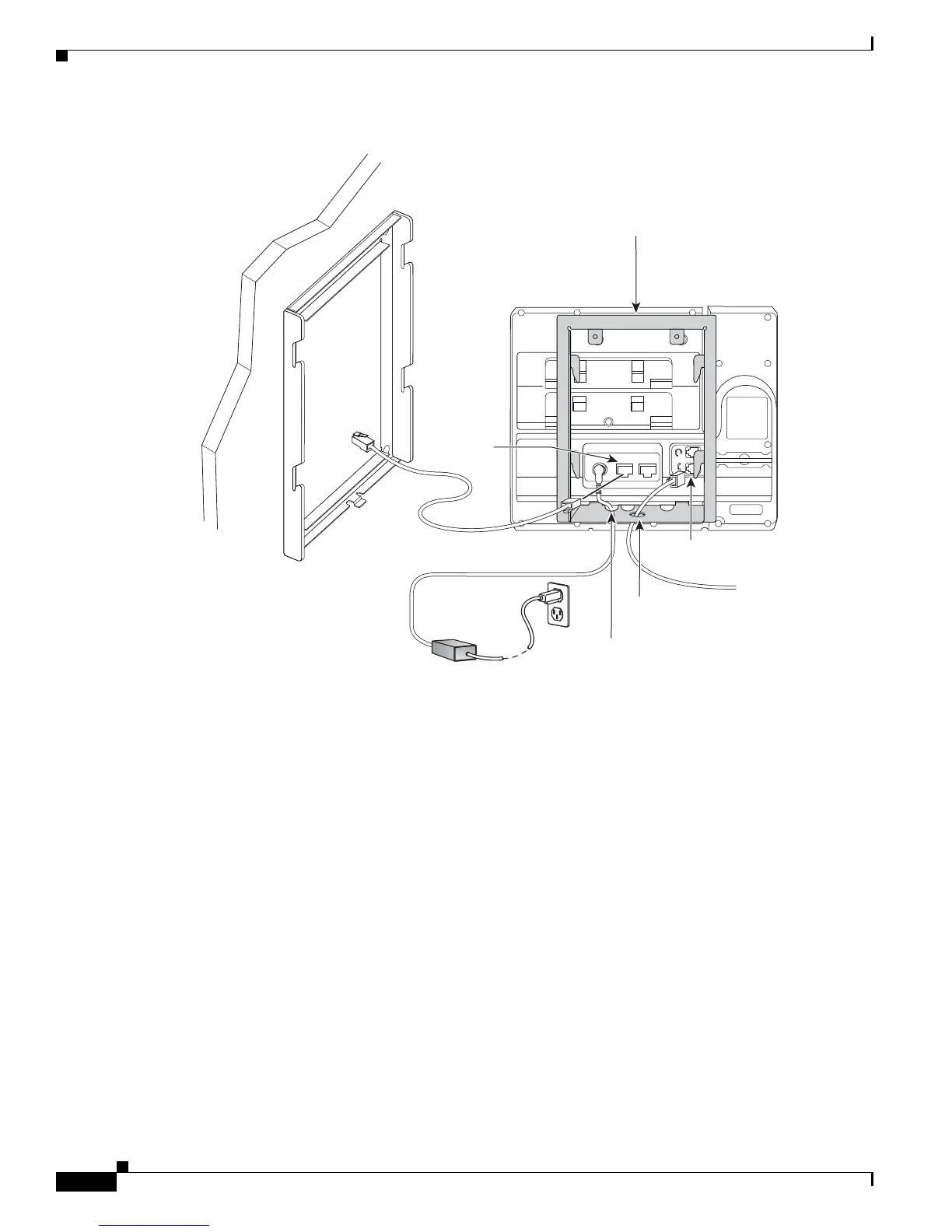

Figure E-5 Attaching the Cables
Step 5 Attach the phone to the wall bracket by inserting the tabs on the top of the phone bracket into the slots
on the wall bracket. Ensure that the power cord and any other cable that does not terminate in the wall
behind the bracket are positioned in one of the cable-access openings in the bottom of the bracket. The
phone and wall brackets’ openings together form circular openings with room for one cable per opening
(
Figure E-6).
Step 6 Use the locking key to lock the phone to the wall bracket.
274939
(optional power
cable)
AC adapter
port
Handset port
Network
port
Phone bracket
Wall bracket
Phone bracket
cable access hole
U-shaped holes
for cables

Cisco 6921 Specifications

General

Speakerphone	Yes
Headset Port	Yes
Power	IEEE 802.3af Power over Ethernet (PoE)
Lines	2
Audio Codec Support	G.711a, G.711u, G.722, G.729a, iLBC
Ethernet Ports	2
Protocols	SCCP
Weight	1 kg
Ethernet Switch	10/100BASE-T Ethernet switch
