Installing the Cisco Unified IP Phone

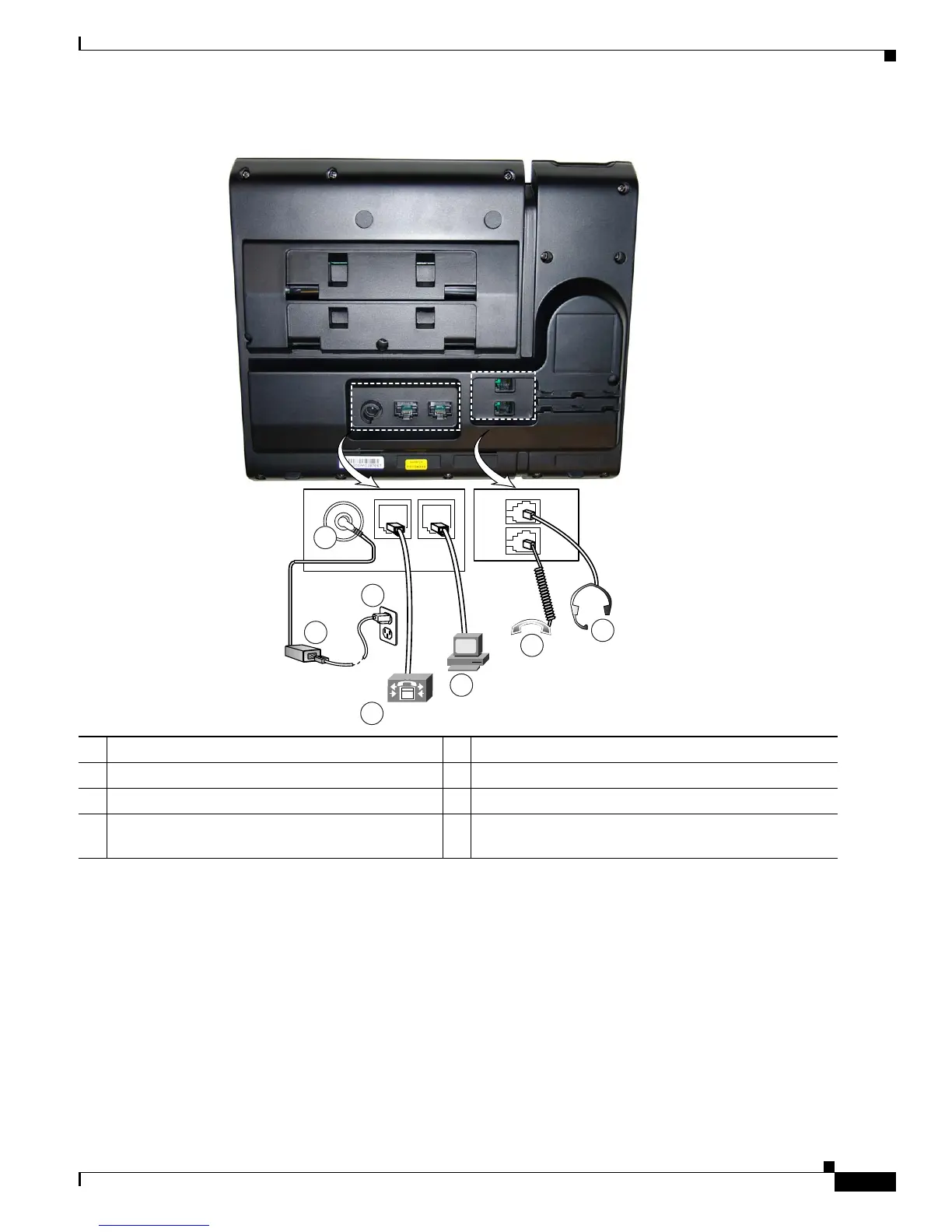

Figure 3-2 Cisco Unified IP Phone 6961 Cable Connections
1
DC adaptor port (DC48V)
5
Access port (10/100 PC) connection
2
AC-to-DC power supply (optional)
6
Handset connection
3
AC power wall plus (optional)
7
Analog headset connection (optional)
4
Network port (10/100 SW) connection. IEEE
802.3af power enabled
