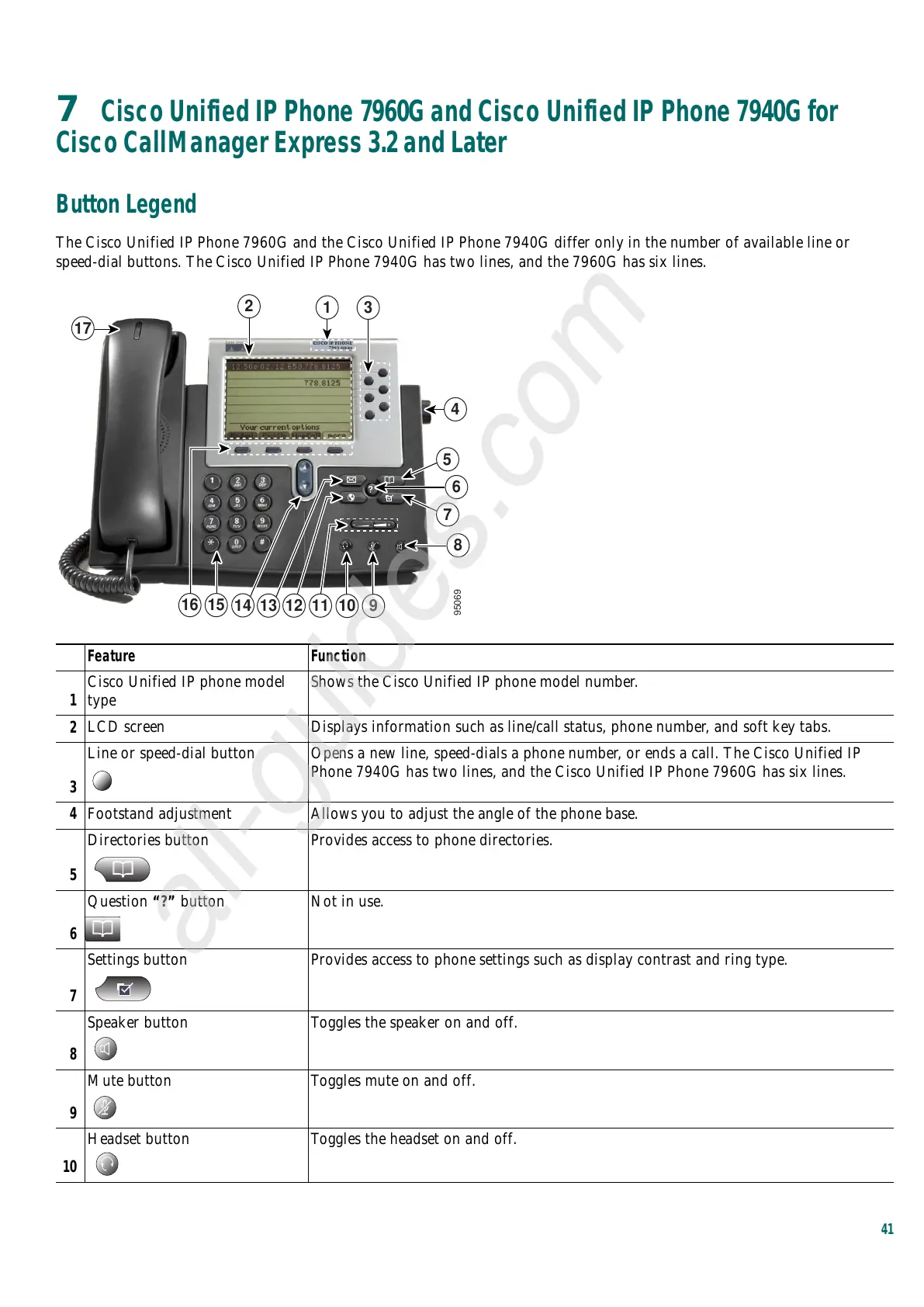

7 Cisco Unified IP Phone 7960G and Cisco Unified IP Phone 7940G for
Cisco CallManager Express 3.2 and Later
Button Legend
The Cisco Unified IP Phone 7960G and the Cisco Unified IP Phone 7940G differ only in the number of available line or
speed-dial buttons. The Cisco Unified IP Phone 7940G has two lines, and the 7960G has six lines.
17
3
4
1516
14
95069
1
8
6
5
2
910
111213
7
Feature Function
1
Cisco Unified IP phone model
type
Shows the Cisco Unified IP phone model number.
2
LCD screen Displays information such as line/call status, phone number, and soft key tabs.
3
Line or speed-dial button Opens a new line, speed-dials a phone number, or ends a call. The Cisco Unified IP
Phone 7940G has two lines, and the Cisco Unified IP Phone 7960G has six lines.
4
Footstand adjustment Allows you to adjust the angle of the phone base.
5
Directories button Provides access to phone directories.
6
Question “?” button Not in use.
7
Settings button Provides access to phone settings such as display contrast and ring type.
8
Speaker button Toggles the speaker on and off.
9
Mute button Toggles mute on and off.
10
Headset button Toggles the headset on and off.
