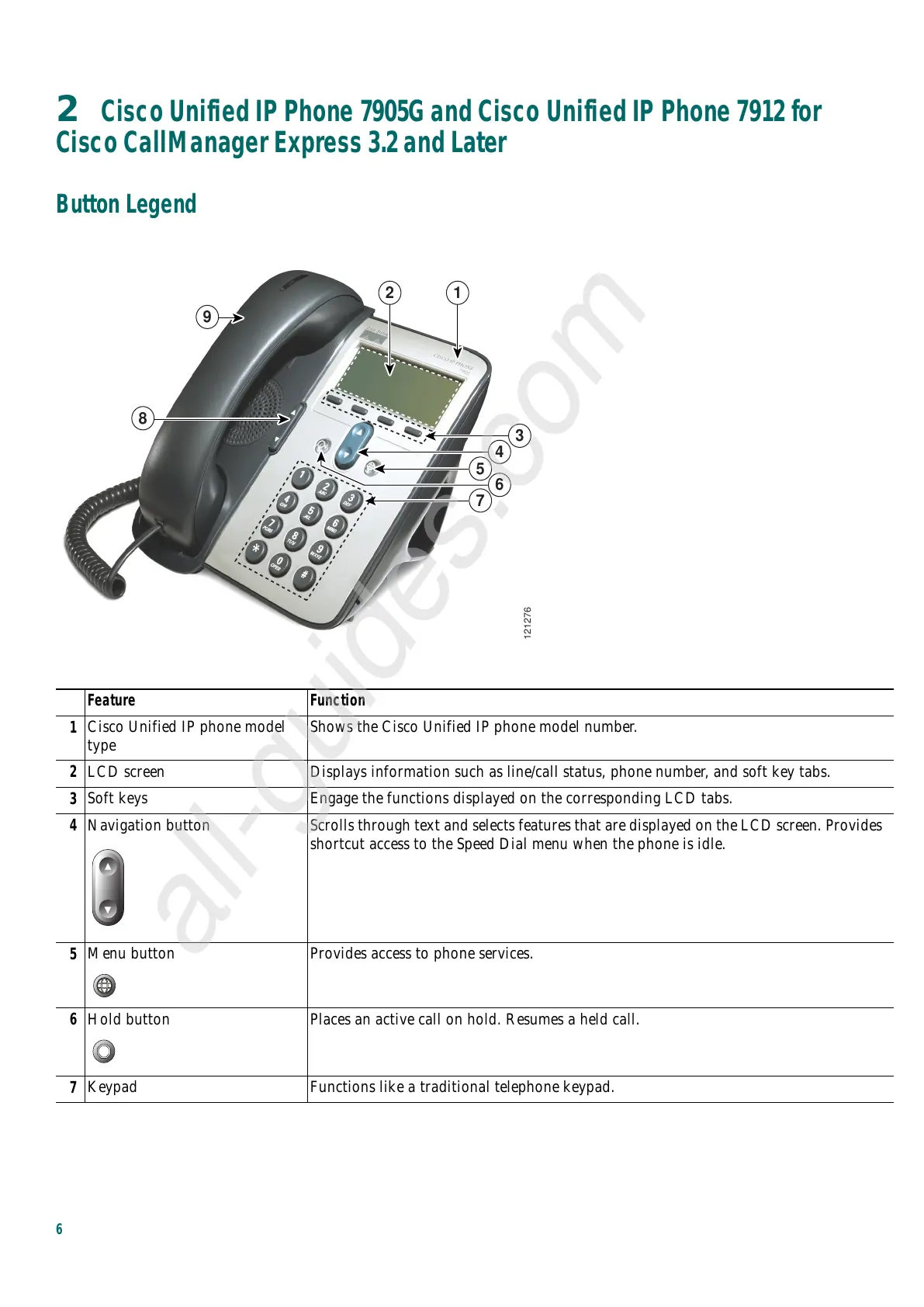

2 Cisco Unified IP Phone 7905G and Cisco Unified IP Phone 7912 for
Cisco CallManager Express 3.2 and Later
Button Legend
9
8
3
4
6
5
7
2 1
21276
Feature Function
1
Cisco Unified IP phone model
type
Shows the Cisco Unified IP phone model number.
2
LCD screen Displays information such as line/call status, phone number, and soft key tabs.
3
Soft keys Engage the functions displayed on the corresponding LCD tabs.
4
Navigation button Scrolls through text and selects features that are displayed on the LCD screen. Provides
shortcut access to the Speed Dial menu when the phone is idle.
5
Menu button Provides access to phone services.
6
Hold button Places an active call on hold. Resumes a held call.
7
Keypad Functions like a traditional telephone keypad.
