Cisco 7942G User Manual

4

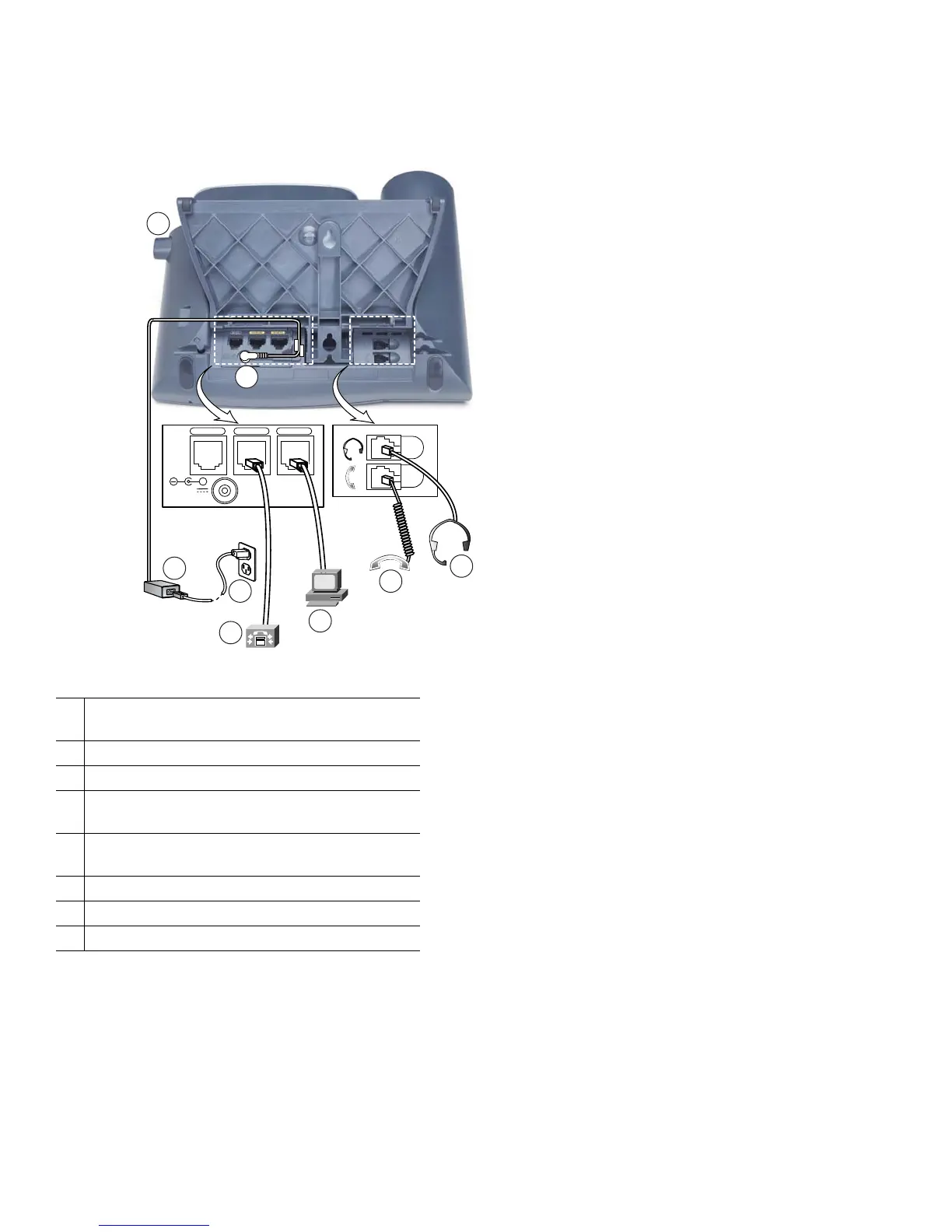

Connecting Your Phone
This section shows and describes the connectors on your Cisco Unified IP phone.
1
DC adapter port (DC48V) for phones not
provided with inline power
2
AC-to-DC power supply
3
AC power cord
4
Network port (10/100 SW) for connecting to the
network
5
Access port (10/100 PC) for connecting your
phone to your computer
6
Handset port
7
Headset port
8
Footstand button
AUX
DC48V
10/100 SW 10/100 PC
+
113656
2
8
3
4
5
6
7
1

Cisco 7942G Specifications

General

Lines	2
Audio Codec Support	G.711, G.729a, G.729ab, G.722
Network Protocols	SIP, SCCP
Ethernet Ports	2 x 10/100
Power Options	PoE 802.3af, Optional Power Cube
Speakerphone	Yes
Headset Port	Yes
Weight	3.5 lbs
