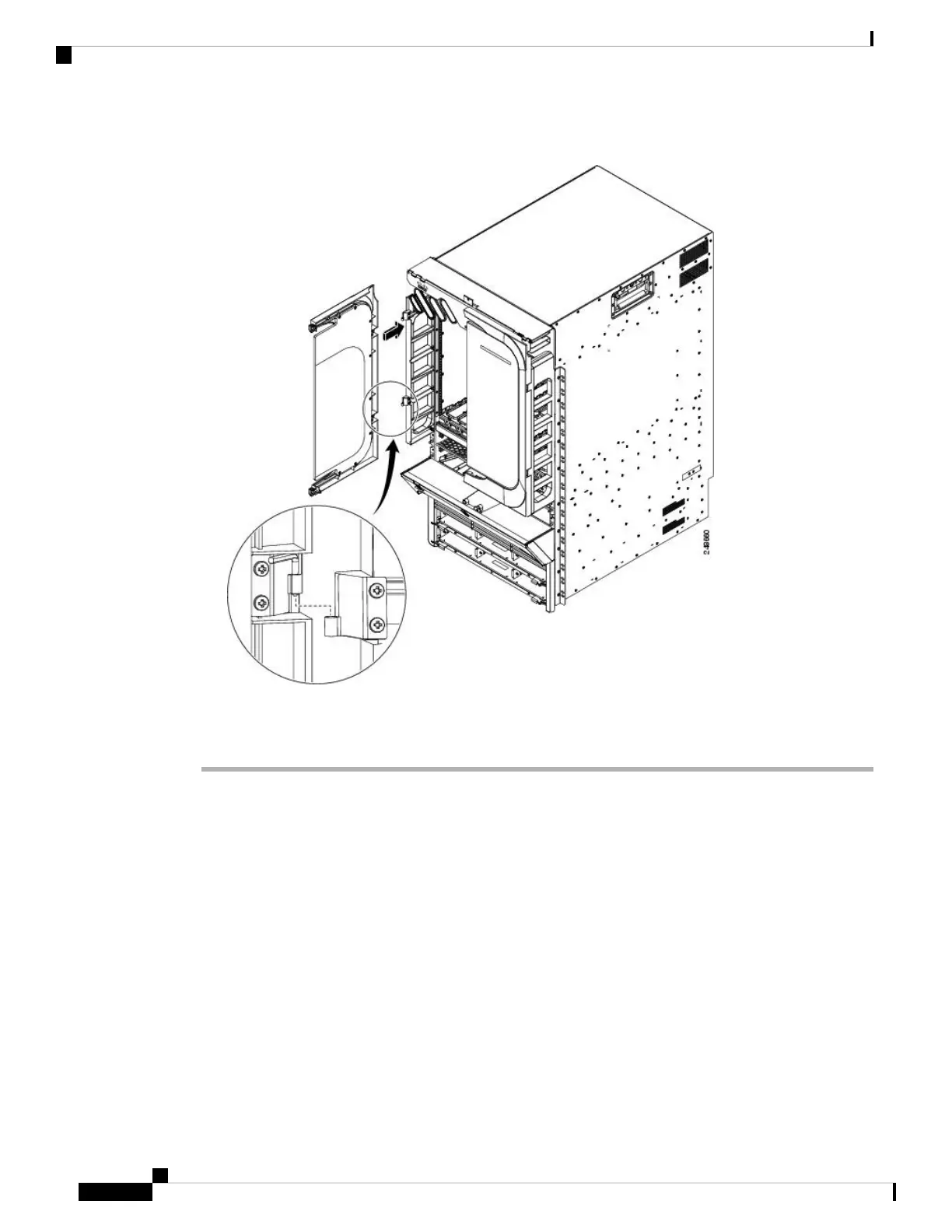

Figure 140: Installing Optional Chassis Accessory Doors on the Cisco ASR 9010 Router
Step 9 Install the front grill (item 8 in the Step 4, on page 128 by aligning and engaging it to the bottom two ball studs
and pressing it in.
Installing Base Chassis Accessories on the Cisco ASR 9006 Router
The base chassis accessories for the Cisco ASR 9006 Router include:
• One plastic fan tray door accessory piece
• Two metal mounting brackets (left and right)
• Two chassis side brackets (left and right)
• Two plastic chassis corner pieces (left and right)
• Two screws for attaching the plastic fan tray door accessory piece
• Six screws for attaching the metal mounting brackets
• Six screws for attaching the side brackets
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
132
Unpacking and Installing the Chassis
Installing Base Chassis Accessories on the Cisco ASR 9006 Router
