Cisco Aironet Series 1700/2700/3700 Access Point Deployment Guide
Cisco Aironet Series 2700 Access Point

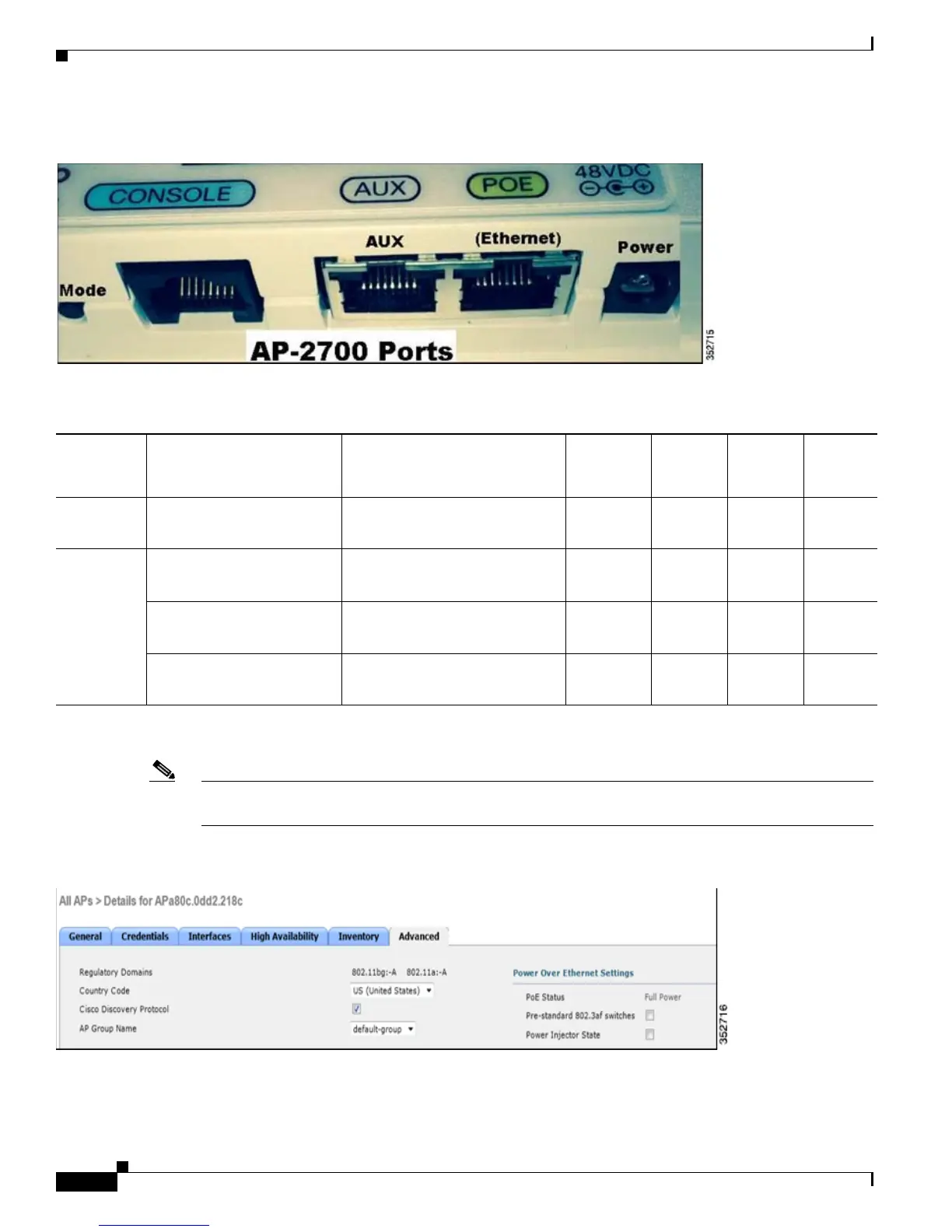

Figure 99 Ethernet Uplink Port to Controller is Labeled PoE and Auxiliary Port is Labeled AUX
Note The auxiliary port is not manageable in software. So, if you do not want the auxiliary port enabled, you
need to limit PoE to 15.4 W. This will be fixed in the next release 8.0MR or 8.1.
Figure 100 AUX port is active when PoE status is at FULL power or when a local power supply is used
Table 7 2700 Power Requirements
Description AP Functionality
PoE
Budget
a
(Watts)
a. This is the power required at the PSE, which is a switch or injector.
802.3af E-PoE
802.3at
PoE+
PWRINJ4
PoE+802.3at
2700 – Out of the Box 4x4:3 on 5G & 3x4:3 on 2.4G
Auxiliary Ethernet Port enabled
16.1 Not
Available
Available Available
PoE+802.3af
2700 – Out of the Box (7.6
code)
Auxiliary Ethernet Port disabled
2x2:2 on 5G & 2x2:2 on 2.4G
15.4 Available NA NA
2700 – Out of the Box
(8.0.x.x code)
Auxiliary Ethernet Port disabled
3x3:3 on 5G & 3x3:3 on 2.4G
15.4 Available NA NA
2700 – Out of the Box
(8.0MR or 8.1)
Auxiliary Ethernet Port enabled
3x3:3 on 5G & 3x3:3 on 2.4G
15.4 Available NA NA
