6 Access Point Ports and Connectors
The 2602E model access points have external antenna connectors and the LED indictor on the top of
the model, as shown in Figure 1. The 2602I model access points have integrated antennas and do not
have external connectors on the top of the unit; however, they do have the LED indicator on top of
the unit, as shown in Figure 2.

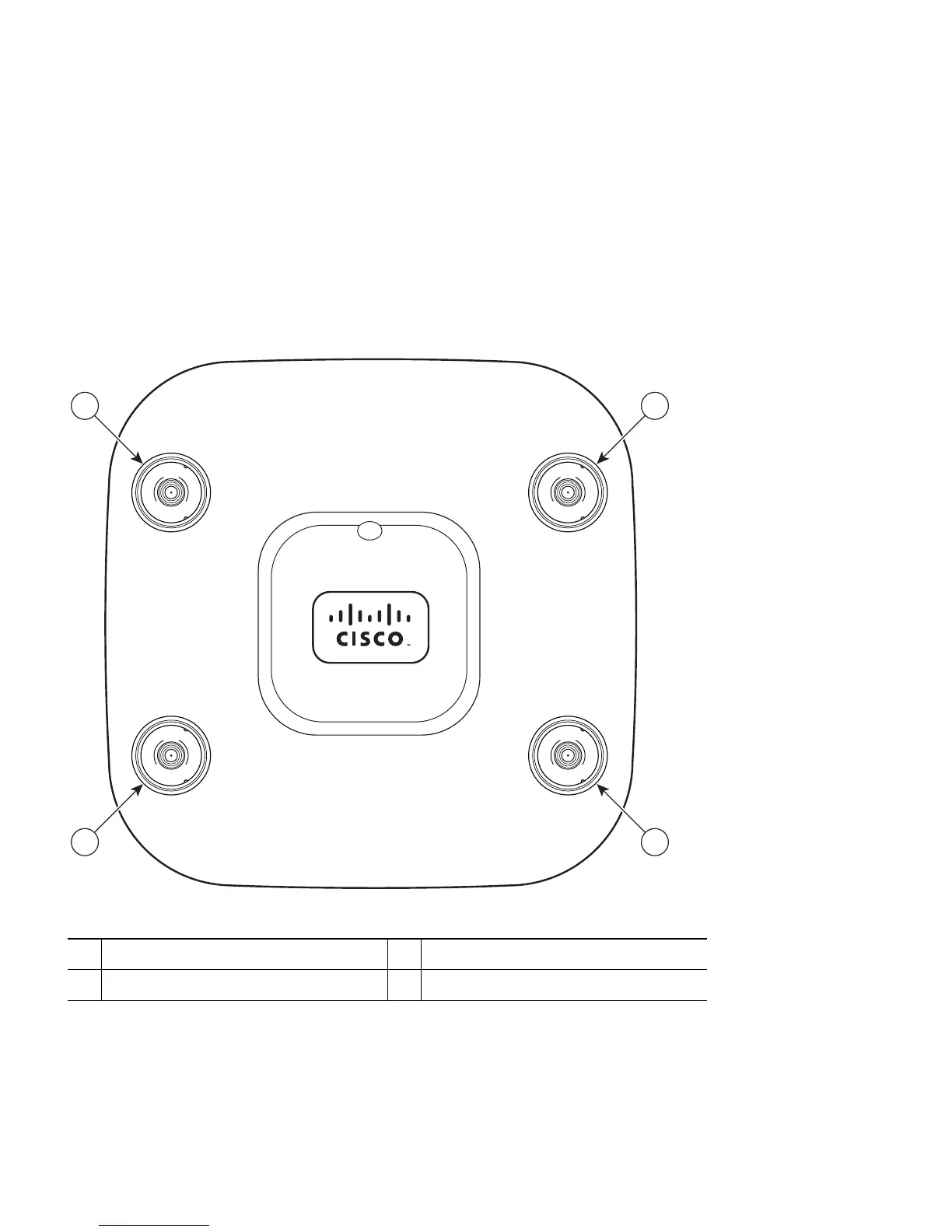

Figure 1 Access Point Ports and Connections (top)
1
Antenna connector A
3
Antenna connector C
2
Antenna connector B
4
Antenna connector D
A
D
U
A
L
B
A
N
D
B
D
U
A
L
B
A
N
D
C
D
U
A
L
B
A
N
D
D
D
U
A
L
B
A
N
D
1
4
2
3
333572

Cisco Aironet 2600 Specifications

General

Category	Wireless Access Point
Wireless Standards	802.11a/b/g/n
Frequency Bands	2.4 GHz, 5 GHz
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Model	Aironet 2600
Ethernet Ports	1 x 10/100/1000BASE-T
Power Options	PoE (802.3af), Power adapter
Data Transfer Rate	Up to 450 Mbps
Antenna	Internal or external antennas (model dependent)
Security Features	WPA2, 802.1X, AES, TKIP
Management Features	Cisco Prime Infrastructure
MIMO	3x4 MIMO
Dimensions	8.7 x 8.7 x 2.4 in. (22.1 x 22.1 x 6.1 cm)
