1-17
Cisco ASR 9000 Series Aggregation Services Router Overview and Reference Guide
OL-17501-09
Chapter 1 Overview and Physical Description
Rack-Mounting Considerations

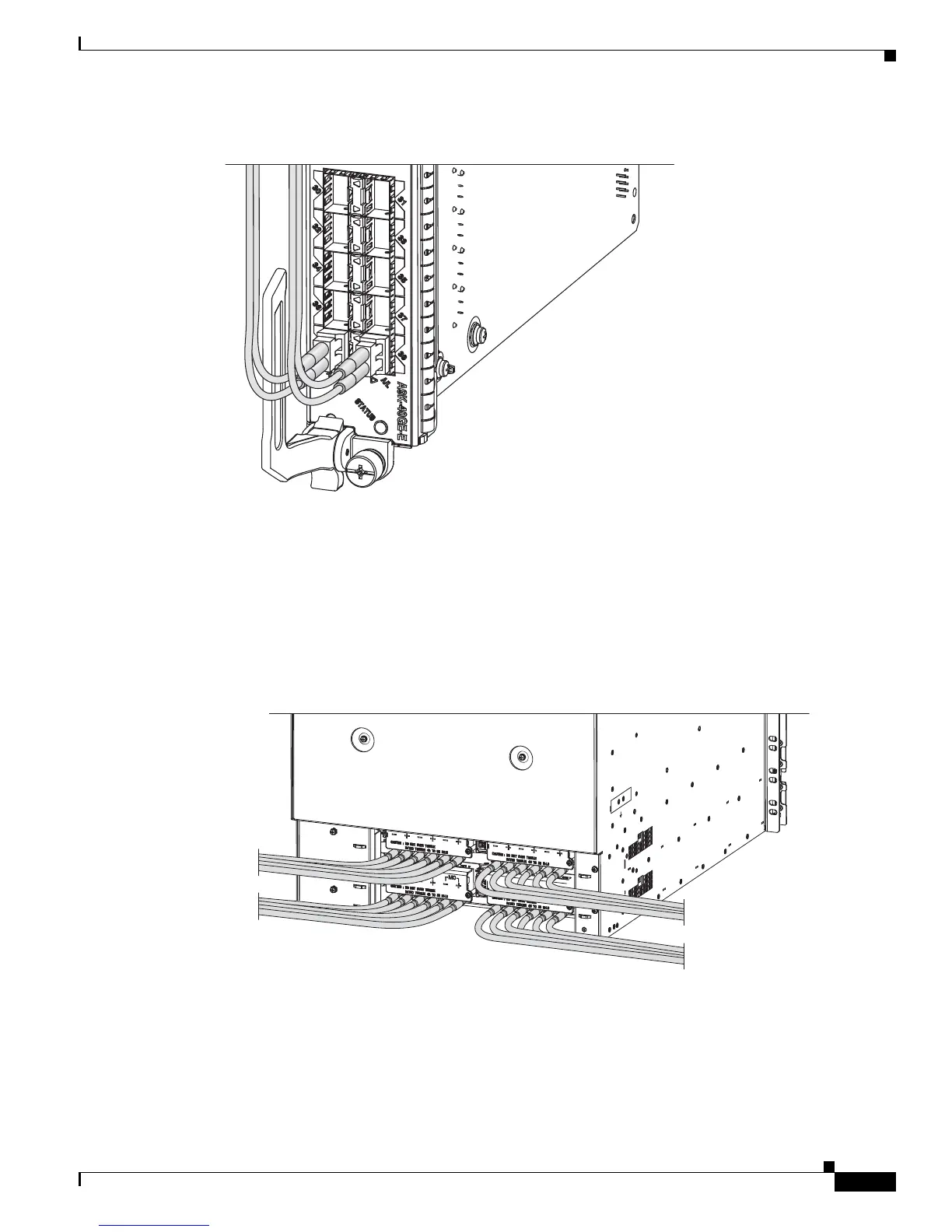

Figure 1-14 Fiber/Cable Routing in the Cisco ASR 9010 Router
Routing of DC Power Tray Source Cables
Power cables are located in the rear. The A and B source feeds to the DC power supply modules are
separated so the cables route to opposite sides of the chassis. A cable tie down point is provided.
Figure 1-15 shows the DC power cable routing on the power trays.
Figure 1-15 Routing of DC Power Tray Source Cables
242895
242894
