Cisco ASR 9000 Series Aggregation Services Router Overview and Reference Guide
OL-17501-09
Chapter 2 Functional Description
Ethernet Line Cards

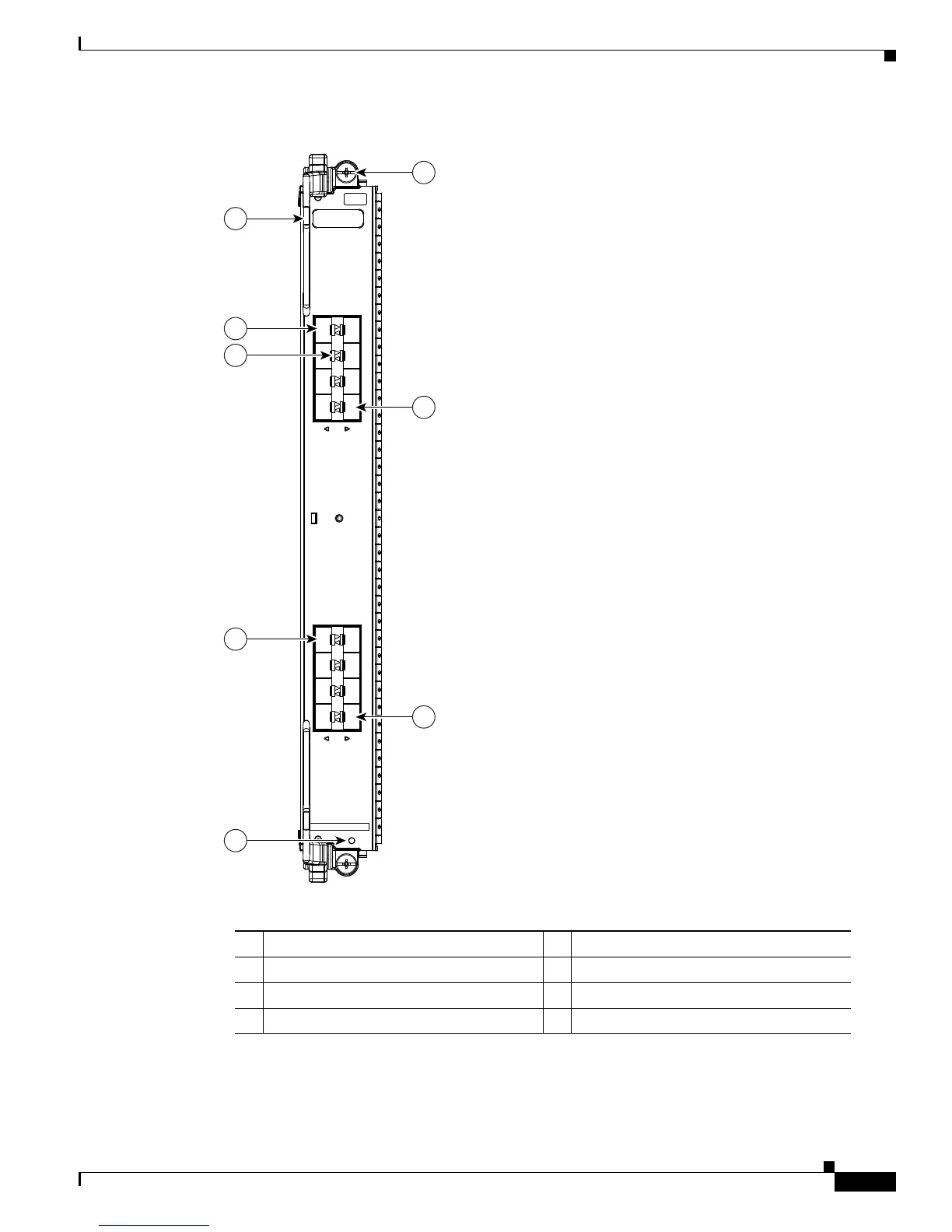

Figure 2-28 16-Port 10-Gigabit Ethernet (16x10GE) Oversubscribed Line Card Front Panel
1 Ejector lever (one of two) 5 Line Card Status LED
2 Port 0 SFP+ cage 6 Port 15 SFP+ cage
3 Port Status LED (one per port) 7 Port 7 SFP+ cage
4 Port 8 SFP+ cage 8 Captive installation screw (one of two)
248671
CLASS 1
LASER
A9K-16T/8-B
STATUS
A/L
8 101214 9 111315
A/L
A/L
0245 1357
A/L
1
2
3
8
7
4
5
6
