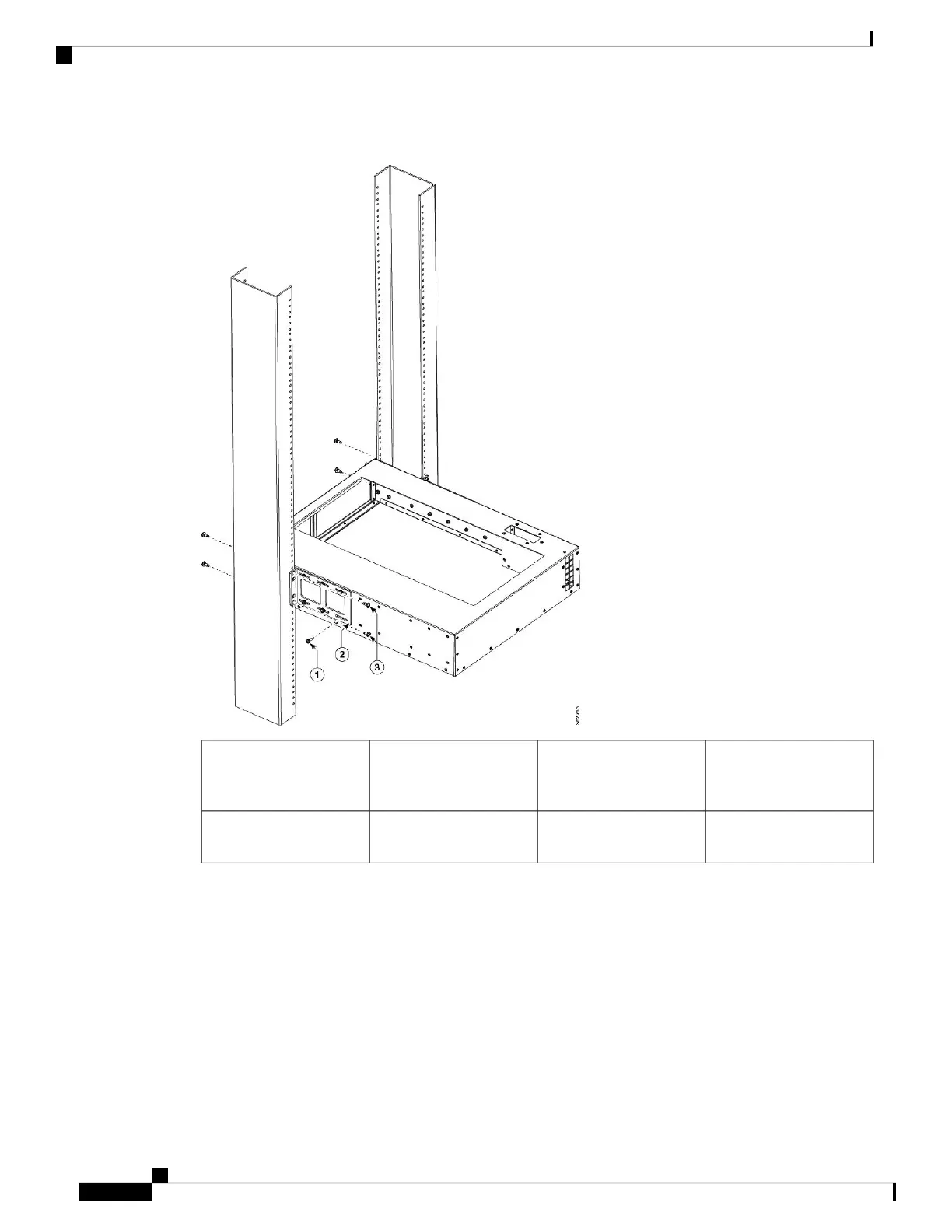

Figure 150: Installing the Plenum in a Two-Post 19-Inch Rack

Screws attaching rear-rack

mounting bracket to rack

(two per bracket)

3Screw attaching rear-rack

mounting bracket to

plenum (six per bracket)

Rear rack-mounting

bracket

Step 6 Turn the chassis sideways and slide it into the rack (Figure 151: Securing the ASR 9006 Router in a Two-Post

19-Inch Rack, on page 143).

Step 7 Insert and tighten four customer-supplied rack-mounting screws to secure the support bracket on the chassis

to the front of the rack-post (two on each side). These screws can vary in size and type depending on the rack

that you use. Torque the screws to the weight specified for your particular rack (Figure 151: Securing the

ASR 9006 Router in a Two-Post 19-Inch Rack, on page 143).

Step 8 Insert six 12-24 x 0.5 in.pan-head screws (part number: 48-0523-01) screws to secure the chassis to the

rack-mounted plenum (Figure 151: Securing the ASR 9006 Router in a Two-Post 19-Inch Rack, on page 143).

Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide

142

Unpacking and Installing the Chassis
