Cisco ASR 9006 Installation Guide

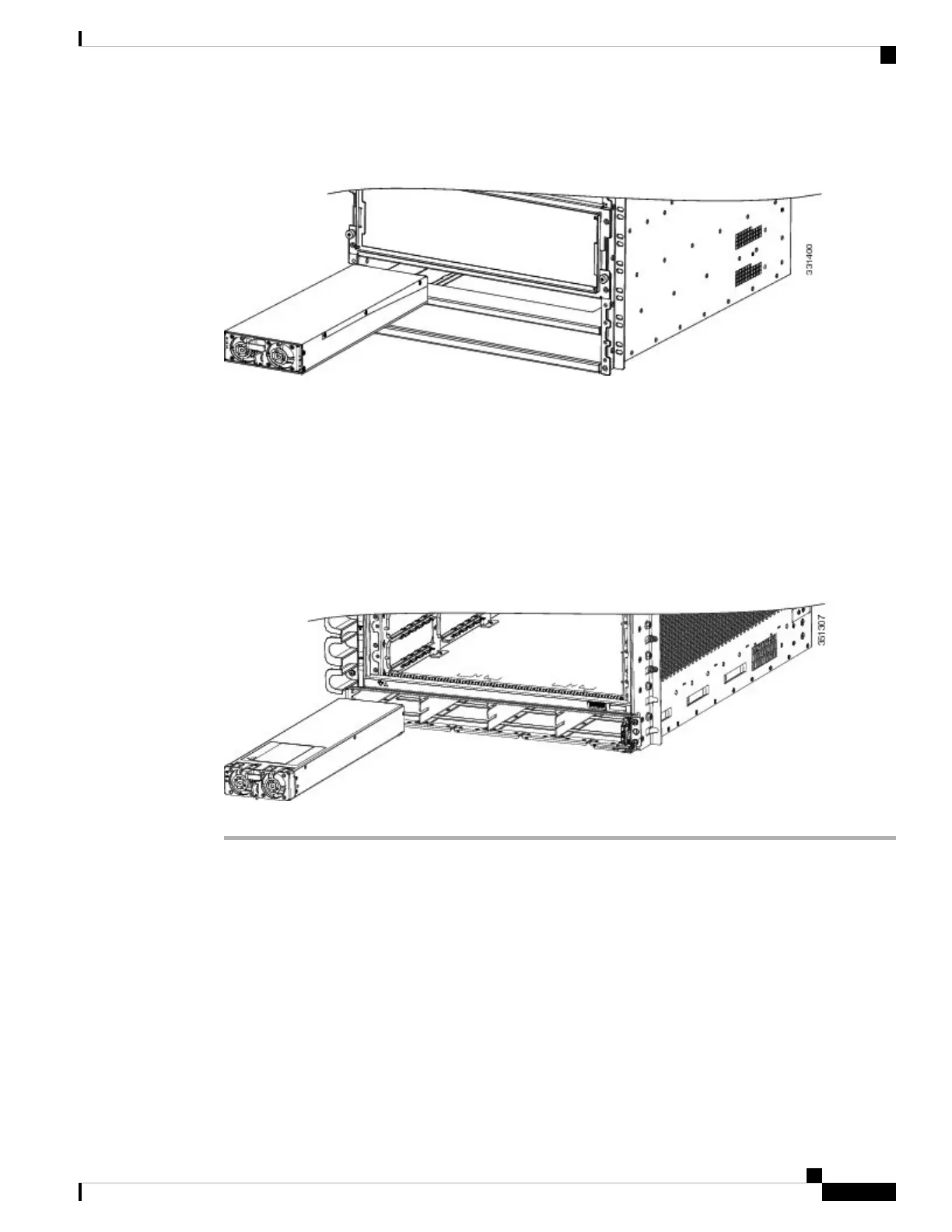

Figure 169: Installing a Version 2 or Version 3 Power Module in the Cisco ASR 9010, 9912, 9922 Routers
Figure 170: Installing a Version 2 Power Module in the Cisco ASR 9904 Router
Installing DC Power Modules
Required Tools and Equipment
You need the following tool to perform this task:
• 7/16 hex socket and torque wrench, torque 50 in-lb.
Steps
Follow these steps to reinstall the DC power modules back into the chassis (see Figure 168: Installing a Version
1 Power- Module, on page 160 for the version 1 power module or Figure 169: Installing a Version 2 or Version
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
161
Installing Cards and Modules in the Chassis
Installing DC Power Modules

Cisco ASR 9006 Specifications

General

Chassis Type	Modular
Rack Units	10 RU
Slots	6
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Front-to-back airflow
Input Voltage	100-240 VAC or -48 to -60 VDC
Supported Protocols	IPv4, IPv6, MPLS, L2VPN, L3VPN
Interfaces	10GE, 40GE, 100GE
Management Interfaces	Ethernet, Console, Auxiliary
