Cisco ASR-920-12SZ-IM User Manual

Procedure
Step 1 Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface on the chassis.
Some SFP modules identify the top side of the module with send (TX) and receive (RX) markings or arrows that show
the direction of the connection.
Step 2 If the SFP module that you are using has the markings, use them to identify the top side of the module.
Step 3 Align the SFP module in front of the slot opening.
Step 4 Insert the SFP module into the slot until you feel the connector on the module snap into place in the rear of the slot.

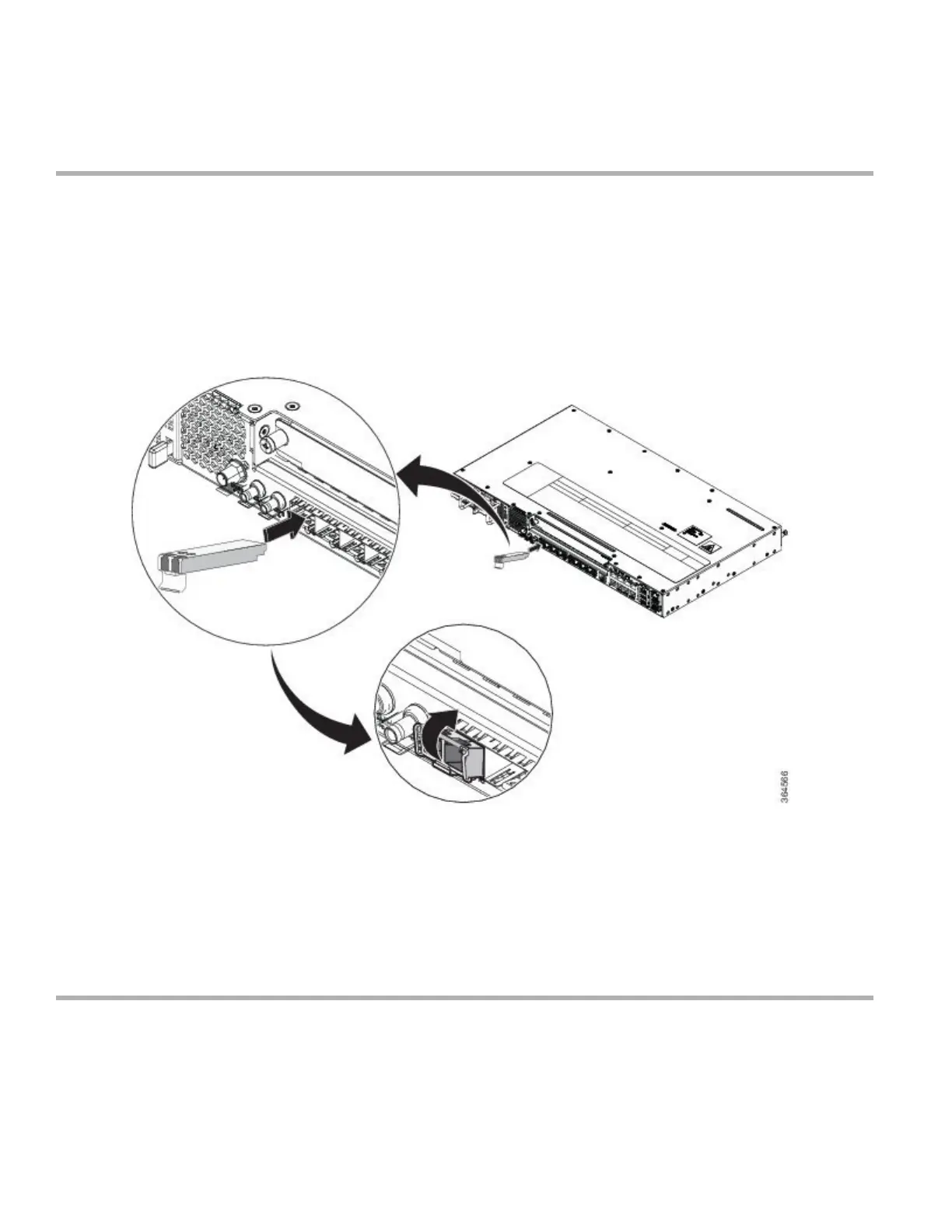

Figure 8: Installing an SFP Module into an SFP Module Slot
Do not remove the dust plugs from the fiber-optic SFP module port or the rubber caps from the fiber-optic
cable until you are ready to connect the cable. The plugs and caps protect the SFP module ports and cables
from contamination and ambient light. Store the dust plugs for later use.
Caution
Step 5 Insert the cable connector into the SFP module:
• For fiber-optic SFP modules, insert the LC cable into the SFP module.
• For copper 1000BASE-T SFP modules, insert the RJ-45 cable connector into the SFP module.
Installing the Chassis Ground Connection
Before you connect the power or turn on the power to the router, you must provide an adequate chassis ground (earth) connection to
your router.
12

Cisco ASR-920-12SZ-IM Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Networking standards	IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000, 10000 Mbit/s
USB ports quantity	2
Ethernet LAN (RJ-45) ports	8
Product color	Gray
Rack capacity	1U
Antenna type	Not supported
AC input voltage	100 - 240 V
Power source type	AC, DC, PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	130 W
Non-operating altitude	0 - 4570 m
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, 2005, CAN/CSA C22.2 No. 60950-1: 2005, IEC 60950-1, 2005, EN 60950-1, 2005, AS/NZS 60950.1:2005
Electromagnetic compatibility	FCC CFR47 Part 15 Class A
Mean time between failures (MTBF)	407230 h
Firewall	-
Security algorithms	IPSec

Weight and Dimensions

Depth	286.54 mm
Width	444.5 mm
Height	44 mm
Weight	4830 g
